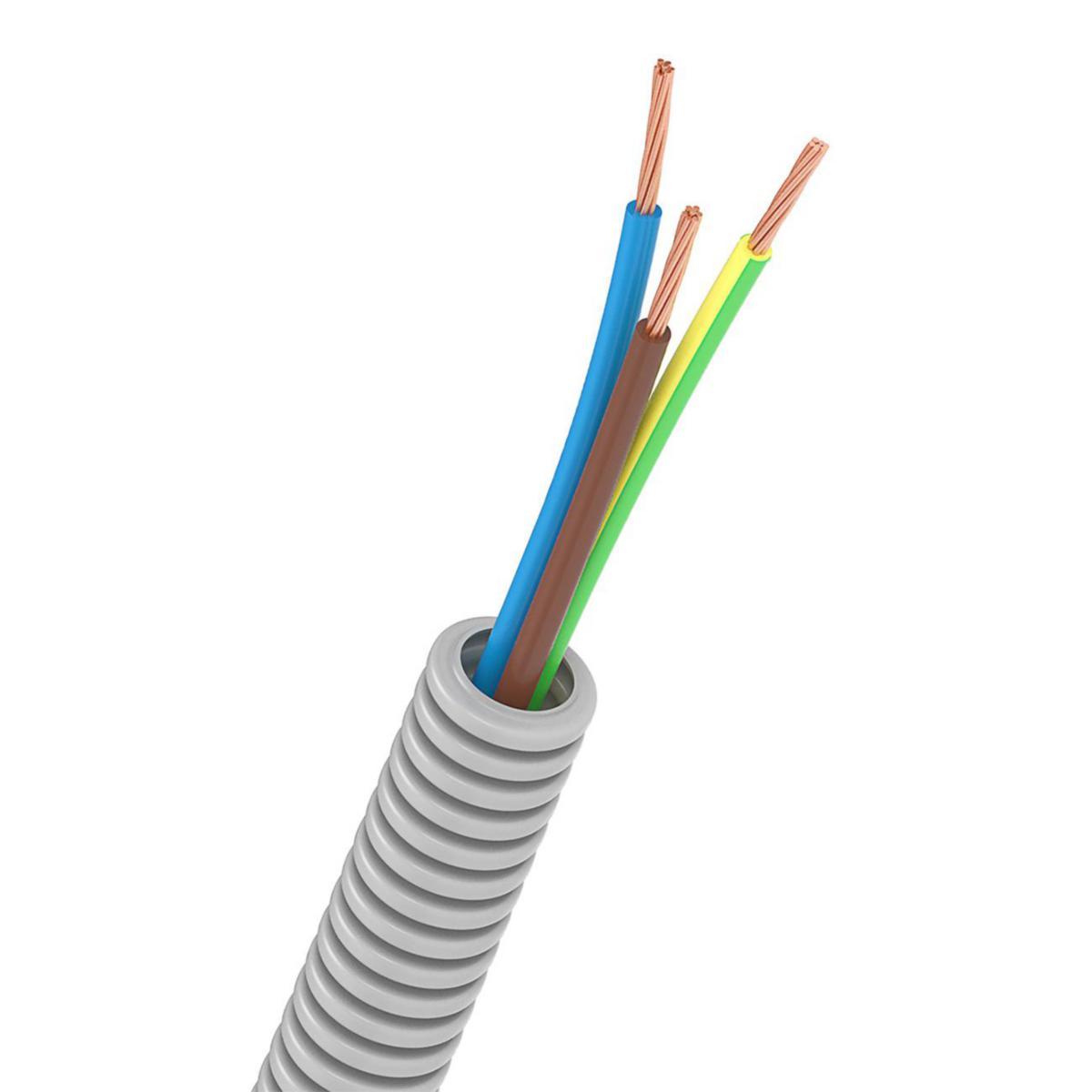

Flex hose pre-wired FQ Dca N-LINE, Nexans
PRE WIRED CONDUIT FQ3G1,5 B250
Article number: Suppl. article no:
1415122
27100151-907-04
to see price and stock
Halogen-free corrugated installation pipe in PP. H07Z1-R (FQ EASY) is a halogen-free, HFFR-insulated installation cable made of extremely low-friction material with a round copper conductor.
- Article number: 1415122
- Suppl. article no: 27100151-907-04
- Material class QE3600
Technical data

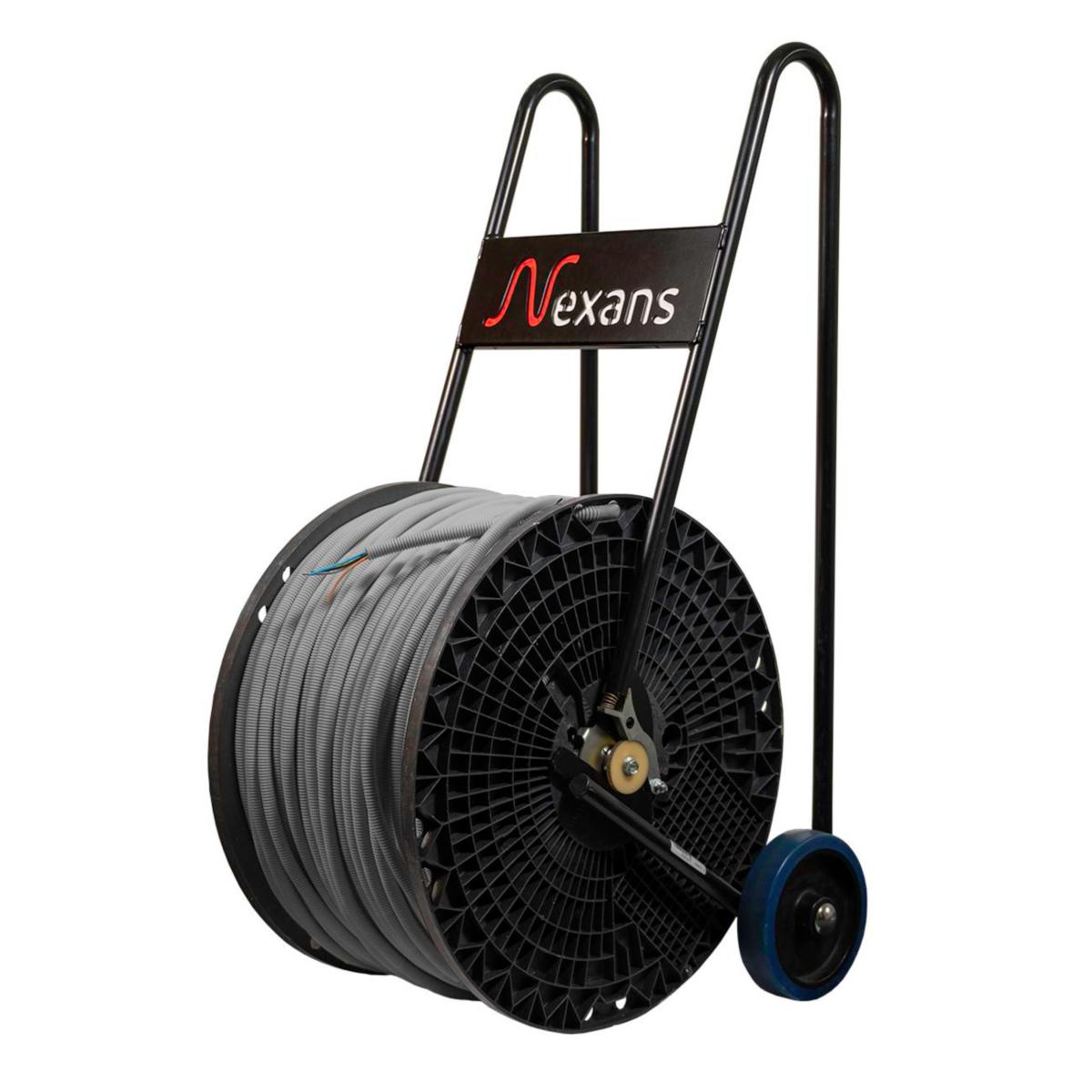

- Packagin Size: 250 M/1000 M
- Dimension conductor x area: 3G1,5 mm²
- Number of cores low voltage power cable: 3
- Number of cores single core cable: 3
- Nominal cross section conductor: 1.5 mm²
- Colour: Grey
- Outer diameter: 16 mm
- Material: Polypropylene (PP)
- Halogen free: Yes
- Bending strength: Flexible
- Operating temperature: -25-70 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: No
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 11 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Suitable for underground installation: No
- Surface mounting: Yes
- Suitable for outdoor installation: No
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Acidity: a2
- Flush-mounted installation: Yes
- With protective conductor: Yes
- With metre indication: Yes
- REACH Date: 2023-01-01
- REACH Information obligation: No
