AhlsellProductsElectricInstallation equipment 11-1814 Pipe laying materialsFlexible pipes with preinstalled wires/cable
Pipelife

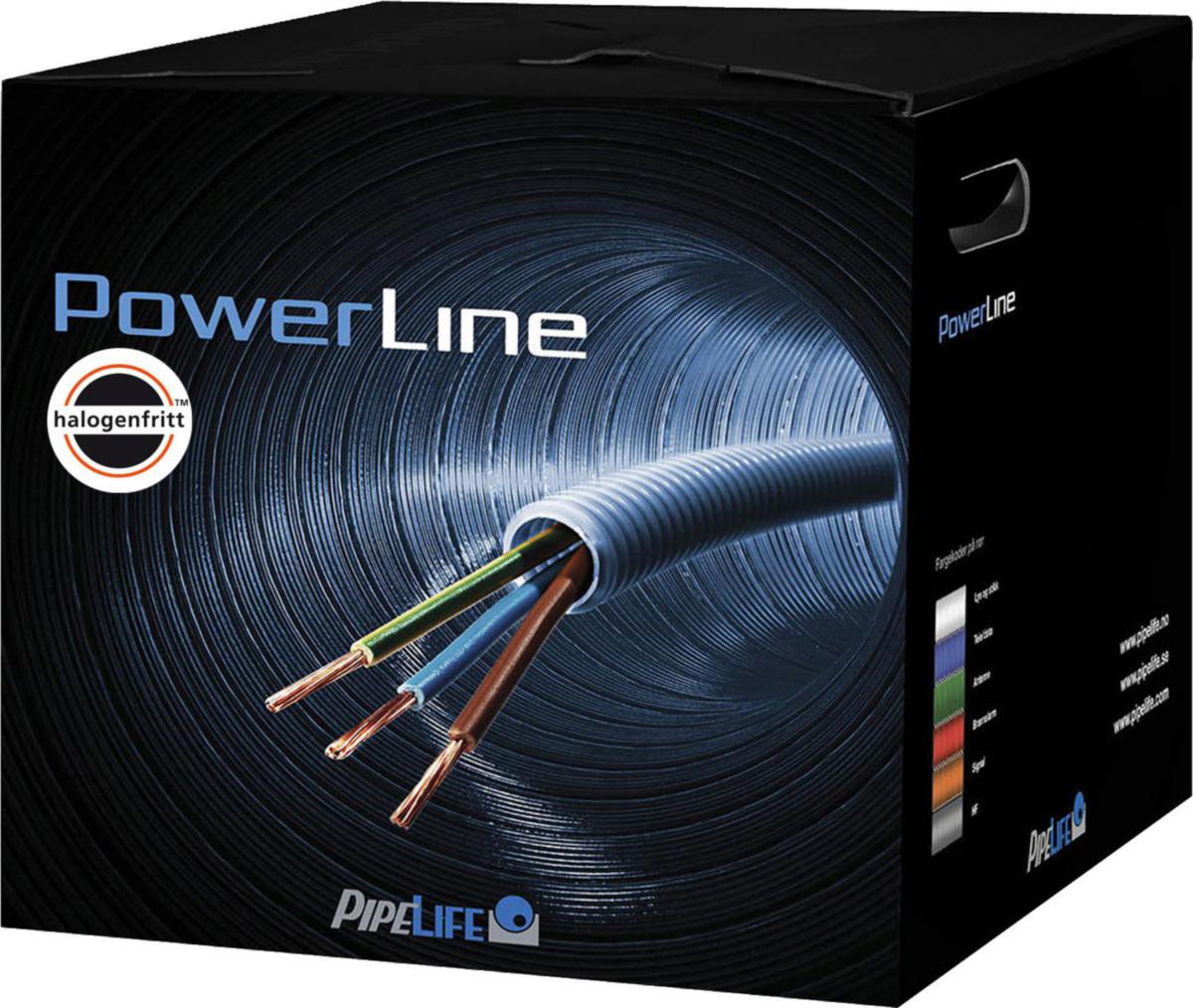

Flex hose pre-wired FQ PowerLine Box Dca, Pipelife
20-50 POWERLINE HF FQ 5G2,5
Article number: Suppl. article no:
1415034
70024510
to see price and stock
Corrugated installation hose in PP with pretensions FQ, CPR class Dca, castable, stiffness class 750 N, Temperature range -25 to +90°C, meter marked, the pipes comply with EN 61386-22, halogen-free, Packed in a box
- Article number: 1415034
- Suppl. article no: 70024510
- Ean no: 9010459548399
- Replaces art.nbr: 1414482
- Material class QE4120
- This is an alternative to item 1414482
Technical data
- Packagin Size: 50 M/600 M
- Dimension conductor x area: 5G2,5 mm²
- Number of cores low voltage power cable: 5
- Nominal cross section conductor: 2.5 mm²
- Colour: Grey
- Outer diameter: 20 mm
- Material: Polypropylene (PP)
- Halogen free: Yes
- Bending strength: Flexible
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: No
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 13.9 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Suitable for underground installation: No
- Surface mounting: No
- Suitable for outdoor installation: No
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d1
- Reaction-to-fire according to EN 13501-6: Smoke production: s1
- Reaction-to-fire according to EN 13501-6: Acidity: a1
- Flush-mounted installation: Yes
- With protective conductor: Yes
- With metre indication: Yes
- Impact strength class according to EN 61386-1: Medium (class 3 / 2 Joule)
- UV resistant: No
- REACH Date: 2023-05-04
- GWP-tot (A1-A3): 1,2529 kgCO2e/M
- REACH Information obligation: No
