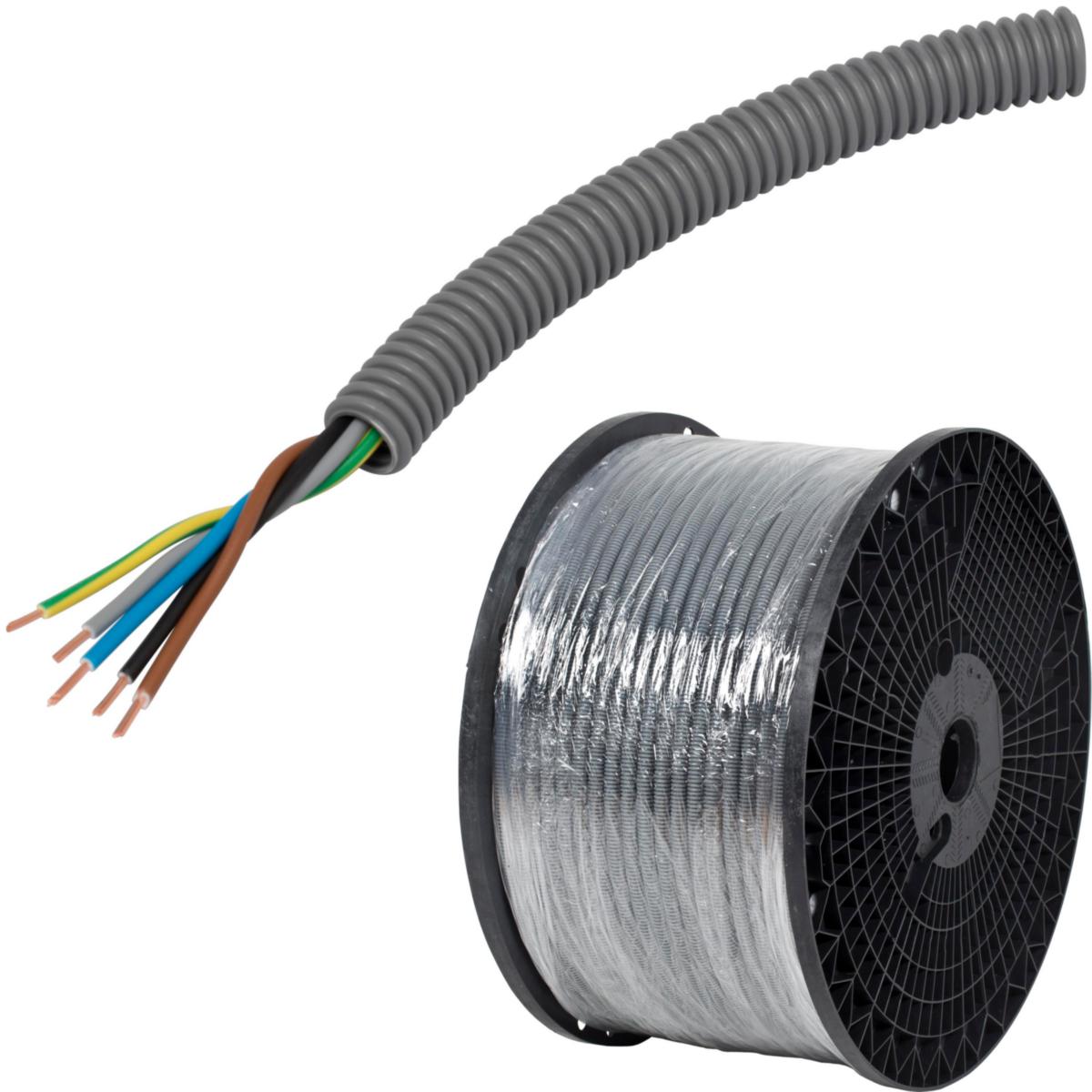

Flex hose FQ twisted PowerFlex Dca, Pipelife
CONDUIT 16MM TVIN FQ5G1.5 300M 16-300 HF PF 5G1.5 FQ TW
Article number: Suppl. article no:
1414874E
1234003061
to see price and stock
Corrugated installation pipe in PP with contracted twisted FQ, CPR class Dca, castable, stiffness class 750 N, Temperature range -25 to + 90 ° C, meter marked, the pipes comply with EN 61386-22, halogen-free
- Article number: 1414874E
- Suppl. article no: 1234003061
- Ean no: 9010459440402
- Replaces art.nbr: 1414489
- Material class QE4120
Technical data
- Packagin Size: 300 M/600 M
- Dimension conductor x area: 5G1,5 mm²
- Number of cores low voltage power cable: 5
- Number of cores single core cable: 0
- Nominal cross section conductor: 1.5 mm²
- Colour: Grey
- Outer diameter: 16 mm
- Number of stranding elements: 5
- Number of data cables: 0
- Number of coaxial cables: 0
- Number of loudspeaker cables: 0
- Number of cores signal-/telecommunications cable: 0
- Conductor category: Class 2 = stranded
- Material: Polypropylene (PP)
- Halogen free: Yes
- Bending strength: Flexible
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: No
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 10.9 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Impact strength: Medium (class 3)
- Suitable for underground installation: No
- Surface mounting: Yes
- Suitable for outdoor installation: No
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d1
- Reaction-to-fire according to EN 13501-6: Smoke production: s1
- Reaction-to-fire according to EN 13501-6: Acidity: a1
- Flush-mounted installation: Yes
- With protective conductor: Yes
- With metre indication: Yes
- Impact strength class according to EN 61386-1: Medium (class 3 / 2 Joule)
- Compressive strength class according to EN 61386-1: Medium (class 3, 750 N)
- REACH Date: 2024-08-30
- GWP-tot (A1-A3): 0,9686 kgCO2e/M
- REACH Information obligation: No
