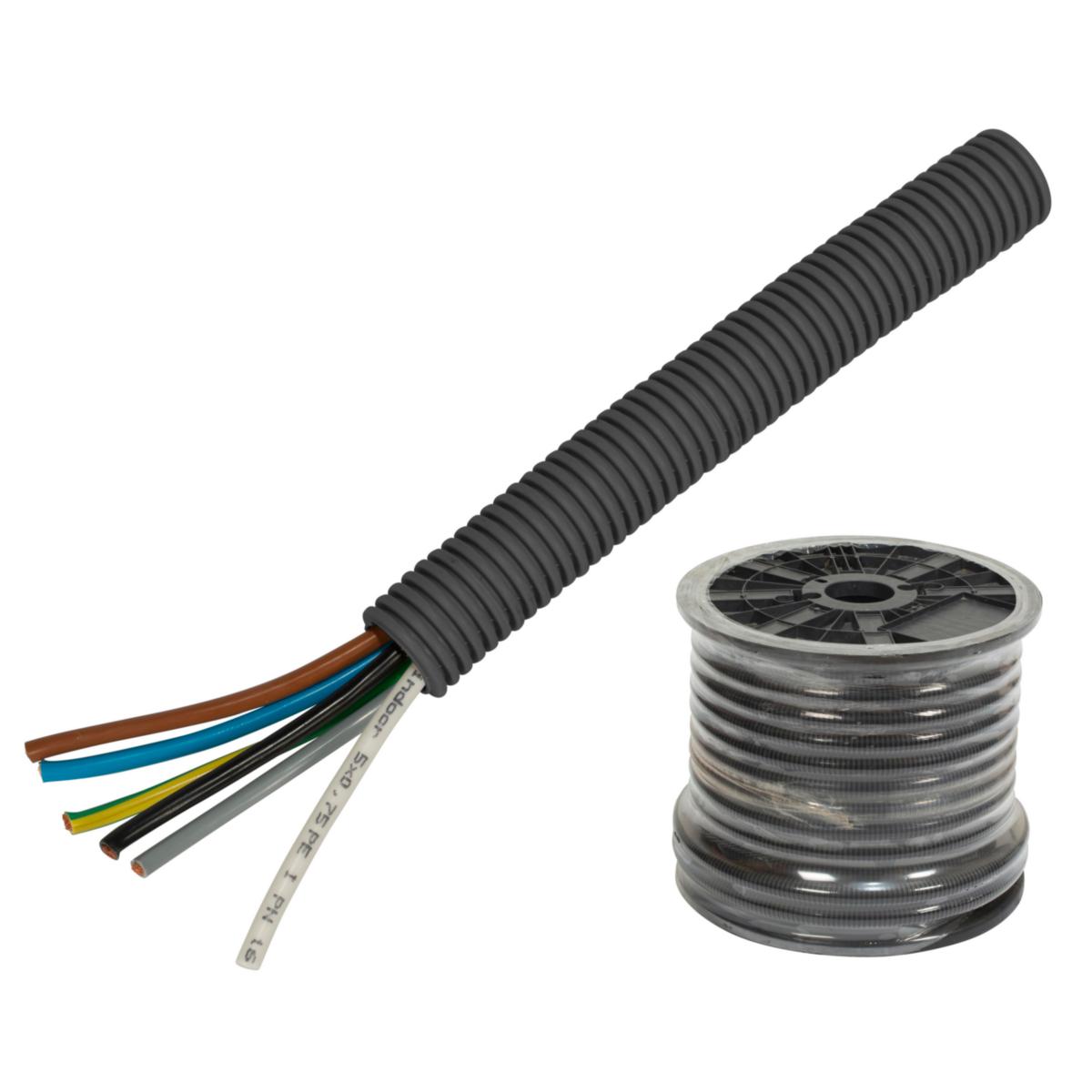

Flex hose pre-wired RQ 5G6 + microduct, Pipelife
25-50 PF RQ5G6+MD HF GE
Article number: Suppl. article no:
1414796
1234003168
to see price and stock
Corrugated installation pipe in PP with specifications RQ 5G6+Microduct, CPR class Dca, castable, stiffness class 750 N, Temperature range -25 to +90°C, meter marked, the pipes comply with EN 61386-22. Delivered on a drum.
- Article number: 1414796
- Suppl. article no: 1234003168
- Ean no: 9010459321022
- Material class QE4120
Technical data
- Packagin Size: 50 M/600 M
- Dimension conductor x area: 5G6 mm²
- Number of cores low voltage power cable: 5
- Number of cores single core cable: 0
- Colour: Grey
- Outer diameter: 25 mm
- Number of stranding elements: 0
- Number of data cables: 0
- Number of coaxial cables: 0
- Number of loudspeaker cables: 0
- Number of cores signal-/telecommunications cable: 0
- Material: Polypropylene (PP)
- Halogen free: No
- Bending strength: Flexible
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: No
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 18.5 mm
- Machine and systems installation: No
- With draw wire: No
- With integrated POF conductor: No
- Suitable for underground installation: No
- Surface mounting: Yes
- Flush-mounted installation: Yes
- With protective conductor: No
- Impact strength class according to EN 61386-1: Medium (class 3 / 2 Joule)
- Compressive strength class according to EN 61386-1: Medium (class 3, 750 N)
- REACH Date: 2024-08-30
- GWP-tot (A1-A3): 2,4143 kgCO2e/M
- REACH Information obligation: No
