Flex pipes contracted FK 2x1.5 PowerFlex, Pipelife - CONDUIT 16MM FK 2X1.5 POWERFLEX FK 2X1.5
Pipelife

Flex pipes contracted FK 2x1.5 PowerFlex, Pipelife

CONDUIT 16MM FK 2X1.5 POWERFLEX FK 2X1.5
Article number:
1414708
Suppl. article no:
1234003039





 to see price and stock

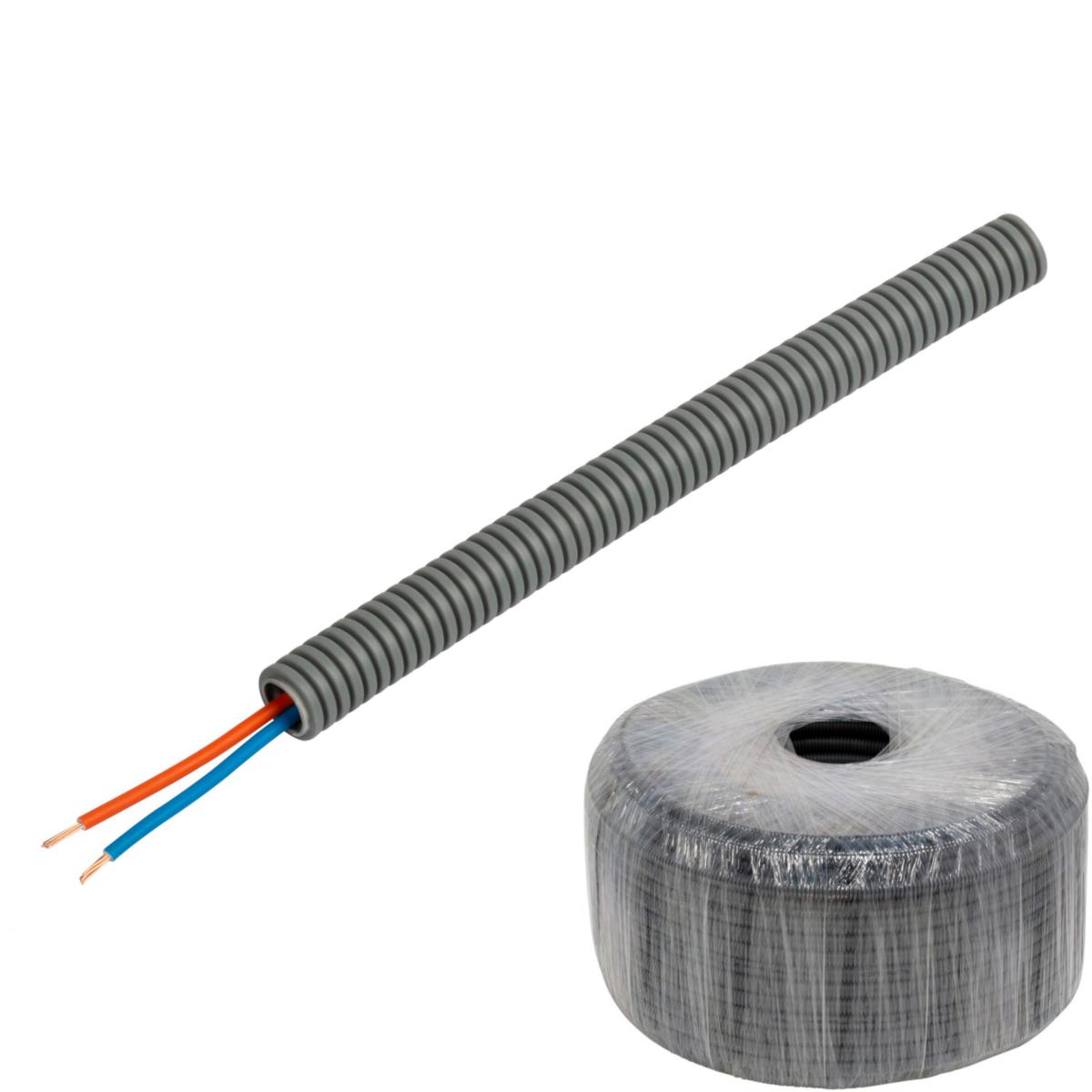

Corrugated installation pipe in PP with contracts FK, CPR class Eca, castable, stiffness class 750 N, Temperature range -25 to + 90 ° C, meter marked, the pipes comply with EN 61386-24. Suitable for installation for LED lamps.
  • Article number:
    1414708
  • Suppl. article no:
    1234003039
  • Ean no:
    9010459321053
  • Material class
    QE4100
Technical data
  • Packagin Size: 100 M/2400 M
  • Dimension conductor x area: 2x1.5 mm²
  • Number of cores low voltage power cable: 2
  • Number of cores single core cable: 0
  • Nominal cross section conductor: 1.5 mm²
  • Colour: Grey
  • Outer diameter: 16 mm
  • Number of stranding elements: 0
  • Number of data cables: 0
  • Number of coaxial cables: 0
  • Number of loudspeaker cables: 0
  • Number of cores signal-/telecommunications cable: 0
  • Material: Polypropylene (PP)
  • Halogen free: No
  • Bending strength: Flexible
  • Operating temperature: -25-90 °C
  • Suitable for concrete installation: Yes
  • Suitable for installation on wood: Yes
  • Suitable for underfloor installation (screed): Yes
  • High conducting inner coating: No
  • Reaction-to-fire according to EN 13501-6: Class: Eca
  • Fire retardant version: Yes
  • Suitable for hollow wall installation: Yes
  • Inner diameter: 10.9 mm
  • Machine and systems installation: No
  • With draw wire: No
  • With integrated POF conductor: No
  • Impact strength: Medium (class 3)
  • Suitable for underground installation: No
  • Surface mounting: No
  • Suitable for outdoor installation: No
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d1
  • Reaction-to-fire according to EN 13501-6: Smoke production: s1
  • Reaction-to-fire according to EN 13501-6: Acidity: a2
  • Flush-mounted installation: Yes
  • With protective conductor: No
  • REACH Date: 2021-06-15
  • Compressive strength class: Medium (class 3)
  • REACH Information obligation: No
