AhlsellProductsElectricInstallation equipment 11-1814 Pipe laying materialsFlexible pipes with preinstalled wires/cable
Eurolan

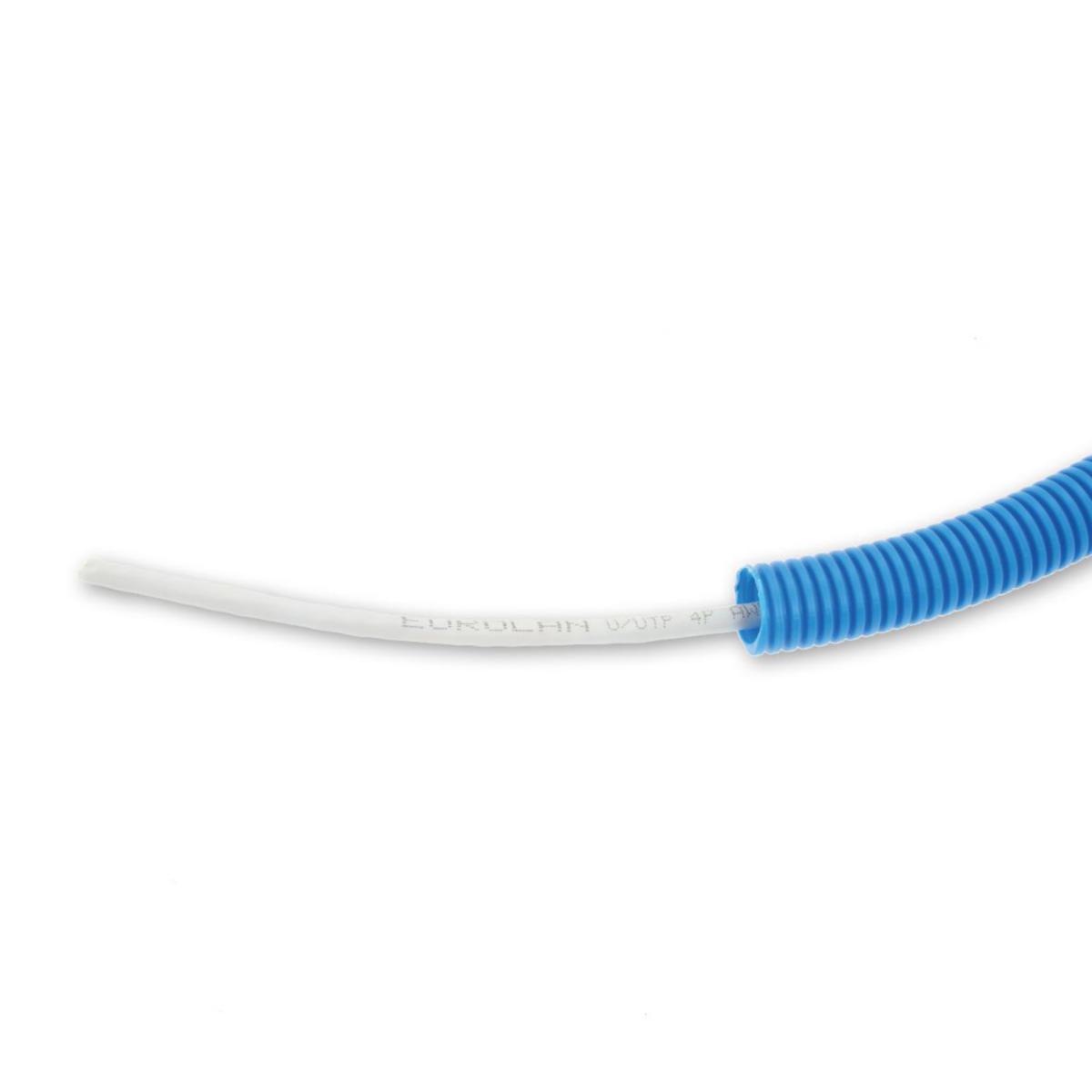

Flex hose pre-wired network cable C6 U / UTP Dca, Eurolan
CONDUIT 1XC6 U/UTP 16MM TUBE 19PD-16-1U6-25WT-100
Article number: Suppl. article no:
1414495
19PD-16-1U6-25WT-100
to see price and stock
Contracted network cable copper in hose, 100m drum. The cables are in Slimline design and each have a diameter of 5.4mm.
- Article number: 1414495
- Suppl. article no: 19PD-16-1U6-25WT-100
- Material class QE461A
Technical data
- Packagin Size: 100 M
- Colour: Blue
- Outer diameter: 16 mm
- Number of data cables: 1
- Number of coaxial cables: 0
- Number of cores signal-/telecommunications cable: 8
- Number of cores low voltage power cable: 0
- Number of cores single core cable: 8
- Number of loudspeaker cables: 0
- Material: Polypropylene (PP)
- Halogen free: Yes
- Number of stranding elements: 4
- Operating temperature: -25-90 °C
- Suitable for concrete installation: Yes
- Suitable for installation on wood: Yes
- Suitable for underfloor installation (screed): Yes
- High conducting inner coating: Yes
- Reaction-to-fire according to EN 13501-6: Class: Dca
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles: d2
- Fire retardant version: Yes
- Suitable for hollow wall installation: Yes
- Inner diameter: 10.7 mm
- Machine and systems installation: No
- With draw wire: No
- Suitable for underground installation: No
- Surface mounting: No
- Reaction-to-fire according to EN 13501-6: Smoke production: s2
- Reaction-to-fire according to EN 13501-6: Acidity: a1
