Roxtec

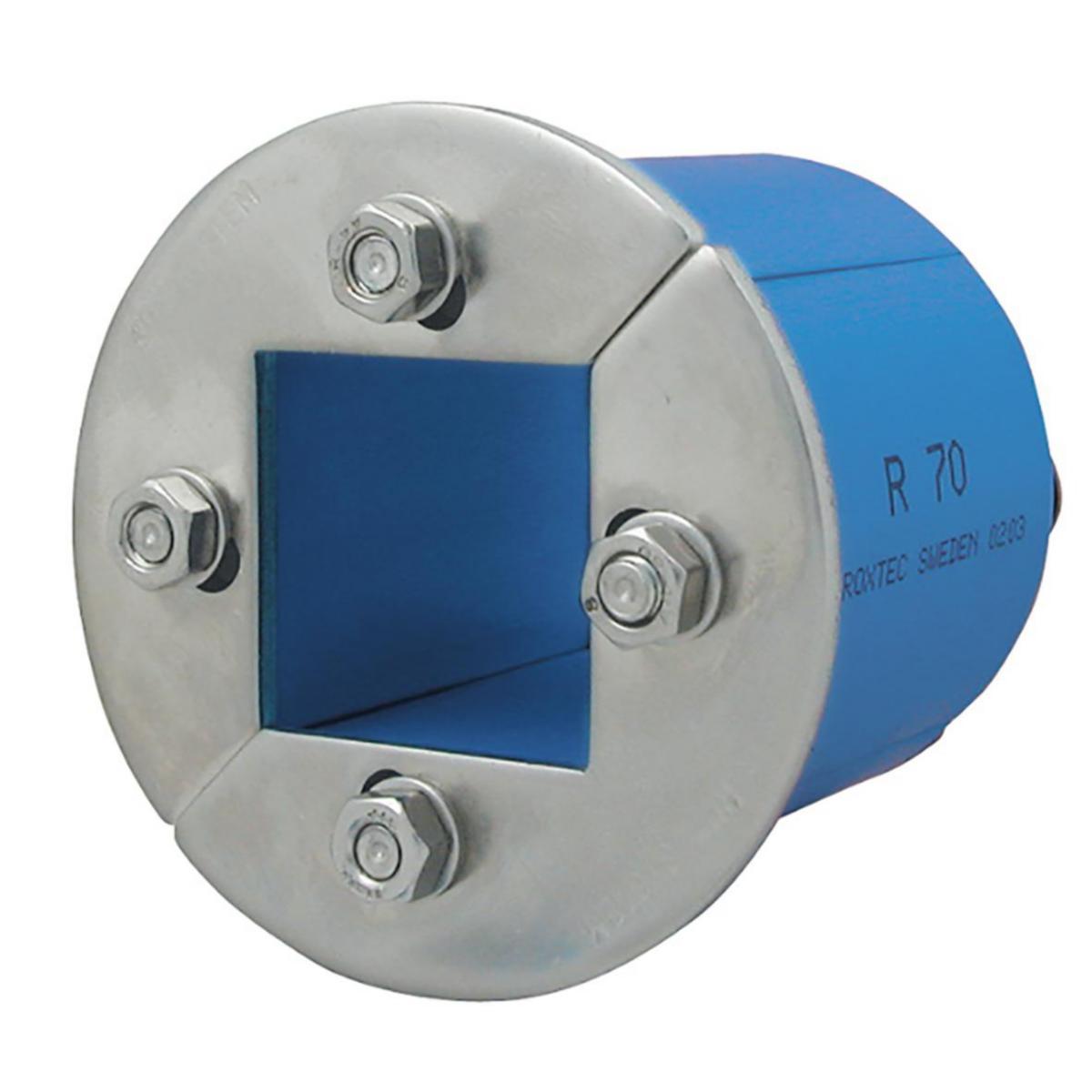

R-sealing frame R Roxtec
R-SEALING FRAME R 70
Article number: Suppl. article no:
1480901
R000000701021
to see price and stock
Roxtec R is a round frame with square packing space for several cables, pipes and modules. The compression function is integrated in the frame. Enables installation around existing cables and pipes. It creates a complete sealing solution when used together with custom Roxtec components Mounted by expansion in holes Sleeves are available as accessories "
- Article number: 1480901
- Suppl. article no: R000000701021
- Ean no: 7340016903807
- Material class QE770B
Technical data
- Packagin Size: 1 ST/12 ST
- Type: R 70
- Model: Press ring seal
- Tube diameter: 70-72 mm
- Diameter wall opening: 70-72 mm
- Pressure: 2.5 bar
- Mounting method: Core holes/tubes
- Length: 85 mm
- Dismantling possible: Yes
- REACH Date: 2021-08-30
- Pressurising medium: Gas
- REACH Information obligation: No
