Hensel

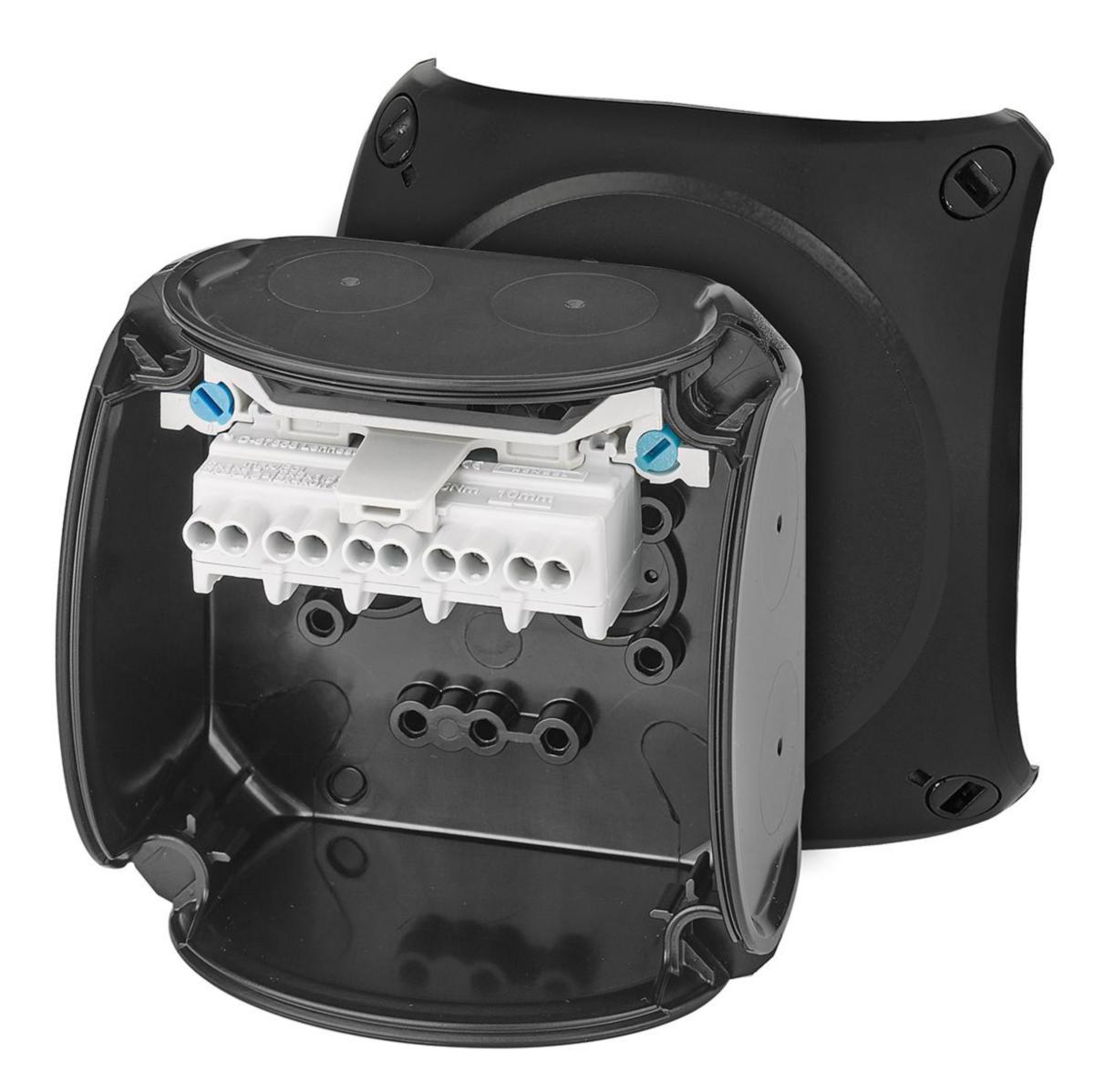

Junction box Ex KX 0202 C
Dosa EX m plint 2,5mm2 93x93
Article number: Suppl. article no:
1438465
KX 0202 C
to see price and stock
Ex-rated junction box with terminal block and break-out openings for flexible adaptation to the desired number of inputs. Screw connections are ordered separately.
Approved for use in Zone 2 and 22.
Approved for use in Zone 2 and 22.
- Article number: 1438465
- Suppl. article no: KX 0202 C
- Ean no: 4012591135241
- Material class QZ0200
Technical data
- Packagin Size: 1 PCS/81 PCS
- Number of inlets: 7
- Equipped with: Screwed terminal
- Max. conductor cross section: 2.5 mm²
- Width: 93 mm
- Length: 93 mm
- Depth: 62 mm
- Explosion-tested version: Yes
- For Ex-zone gas: 2
- For Ex-zone dust: 22
- Material: Plastic
- Degree of protection (IP): IP66
- Shape: Square
- Colour: Black
- Halogen free: Yes
- Connectable: No
- Inlet from the rear: No
- Mounting method: Wall-/ceiling mounting
- Rated insulation voltage Ui: 690 V
- Type of housing feed-through: Preembossing
- Weatherproof: Yes
- Surface protection: Untreated
- Mounting in the soil: No
- Mounting under water: No
- Cover attachment: Screwed
- REACH Date: 2023-02-27
- REACH Information obligation: No
- Model: Junction box
