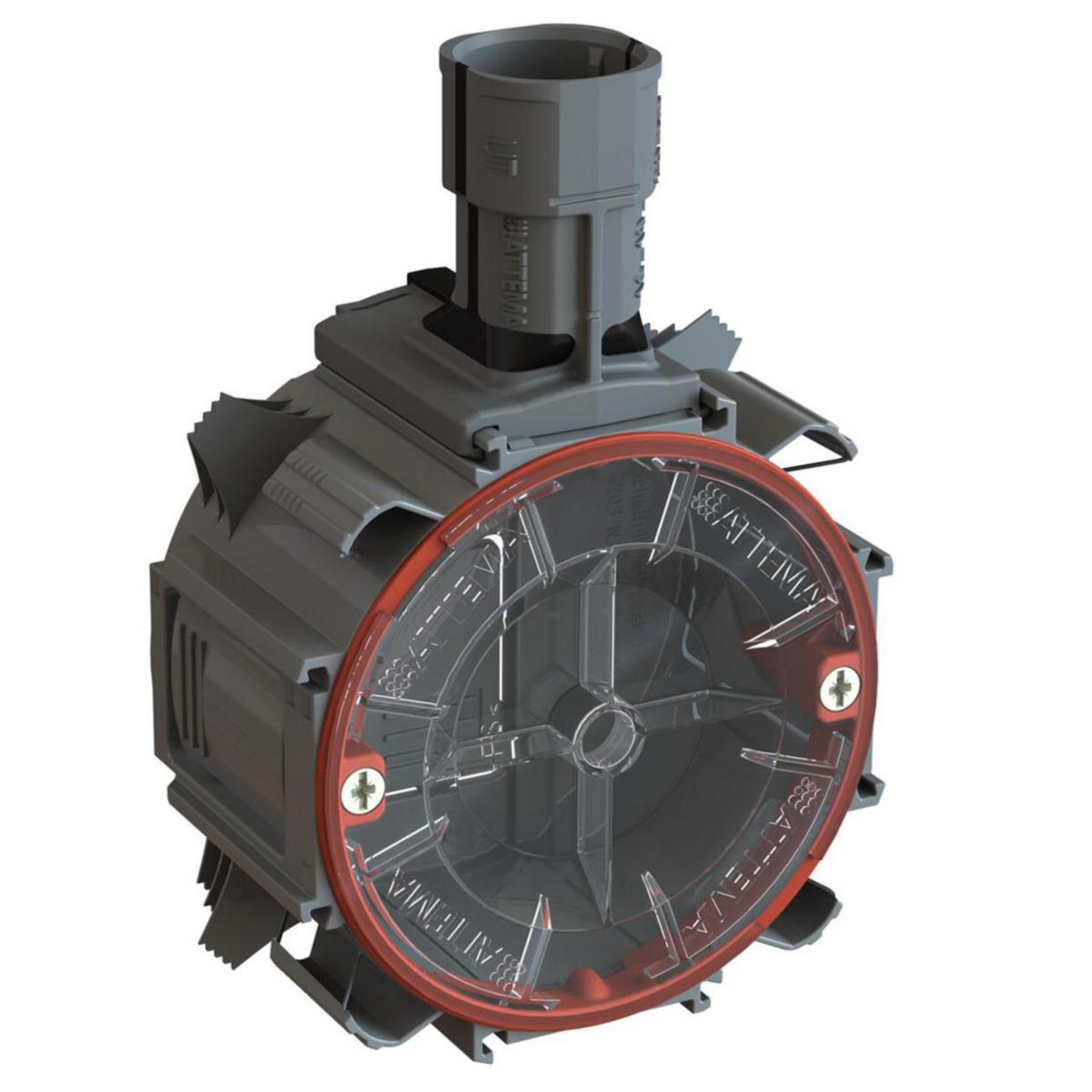

Track box U40 / U50, Attema GII
Wall junction box U40
Article number: Suppl. article no:
1426520
1426520
to see price and stock
Track box for e.g. lightweight concrete, concrete and brick. Hole saw 82 mm. Supplied with plaster cap. 360 degree rotatable ring. Can be assembled for combination frame. Mounting screws: M3 x 20 mm. Knock-out for pipe connector at the bottom. Supplied with 1 combined 16/20 mm flexible nozzle. Can be completed with 4 pcs (1 x 16/20 mm, or (2 x 16/20 mm) nozzles.
- Article number: 1426520
- Suppl. article no: 1426520
- Ean no: 8712259605920
- Material class QE5800
Technical data
- Packagin Size: 1 PCS/10 PCS/230 PCS/1840 PCS
- Type: AT1222.01
- Model: Single
- Construction type: Built-in installation box (device box)
- Shape: Round
- Colour: Grey
- Diameter: 80 mm
- Number of inlets: 5
- For tube diameter: 16/19/20 mm
- Mounting method: Flush-mounted
- Inner depth: 40 mm
- For number of device inserts: 1
- Degree of protection (IP): IP20
- Material: Plastic
- Halogen free: Yes
- Inlet from the rear: Yes
- Mounting switching equipment: Screw or spread out
- Luminaire hook mounting: No
- Transparent cover: Yes
- Clamp position fixed: No
- Max. conductor cross section: 6 mm²
- With screening: No
- With screws: Yes
- Nozzle: Pipe socket
- Sealable: No
- Cover attachment: Snapped on
- Airtight: No
- Surface protection: Untreated
- Couplable: Yes
- Housing feed-through by break-out opening: Yes
- Provided with revolving ring: Yes
- Cover model: Construction protective cover
- Circuit integrity: None
- REACH Date: 2023-12-04
- REACH Information obligation: No
