Mounting box AU81
MOUNTING BOX AU81
Article number: Suppl. article no:
1420955
2TKA00003222
to see price and stock

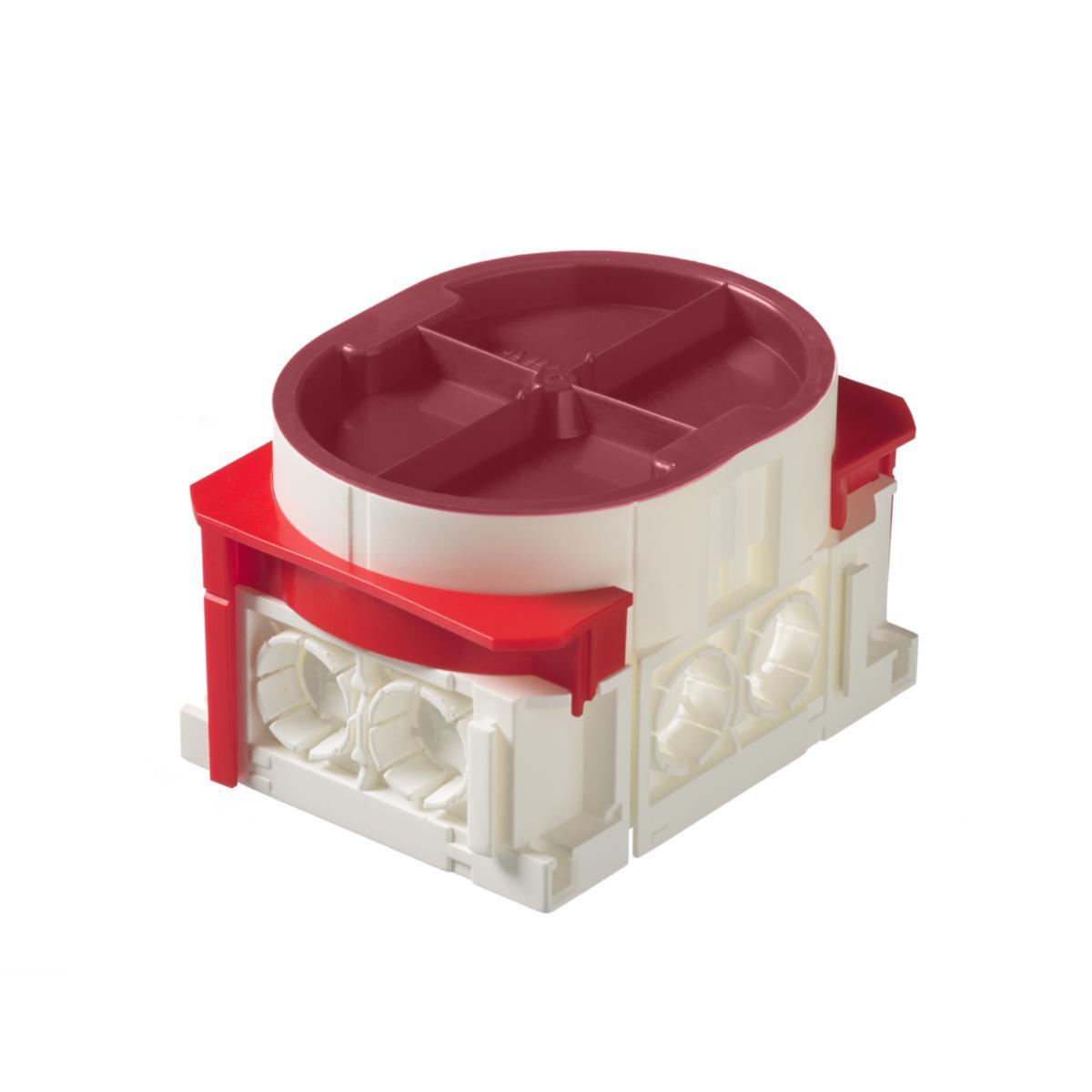

The box is intended for installation of low-profile sockets (for example 302EUJT) with flexible conduit. There are six knockouts for 16 mm conduit and two for 20 mm conduit. At the bottom there are two knockouts for the lower inlets. The device box has two red semicircles that allow installation on panels with a thickness of 12-26 mm. Made of halogen-free material (IEC/61249-2-21) and meets the requirements for glow wire test according to the standard IEC/EN60670: 2005 (850 °C).
- Article number: 1420955
- Suppl. article no: 2TKA00003222
- Ean no: 6438199004839
- Material class QE5600
Technical data
- Packagin Size: 1 PCS/30 PCS/1350 PCS
- Model: One and a half
- Suitable for wall/board thickness: 13-26 mm
- Construction type: Built-in installation box (device box)
- Shape: Rectangular
- Colour: White
- Number of inlets: 8
- For tube diameter: 16/20 mm
- Equipped with: None
- Width: 74 mm
- Length: 96 mm
- Mounting method: Flush-mounted
- Inner depth: 54 mm
- For number of device inserts: 1
- Degree of protection (IP): IP3X
- Material: Plastic
- Halogen free: Yes
- Inlet from the rear: Yes
- Pipe locking: Yes
- Mounting switching equipment: Screwing
- Transparent cover: No
- With screws: Yes
- Sealable: No
- Cover attachment: Snapped on
- Surface protection: Untreated
- Couplable: Yes
- Housing feed-through by seal membrane: No
- Housing feed-through by nozzle: Yes
- Housing feed-through by step membrane: No
- Housing feed-through by break-out opening: Yes
- Provided with revolving ring: No
- Cover model: Construction protective cover
- REACH Date: 2025-07-01
- REACH Information obligation: No
