Mounting box AU80.2
MOUNTING BOX AU80.2
Article number: Suppl. article no:
1420954
2TKA00002541
to see price and stock

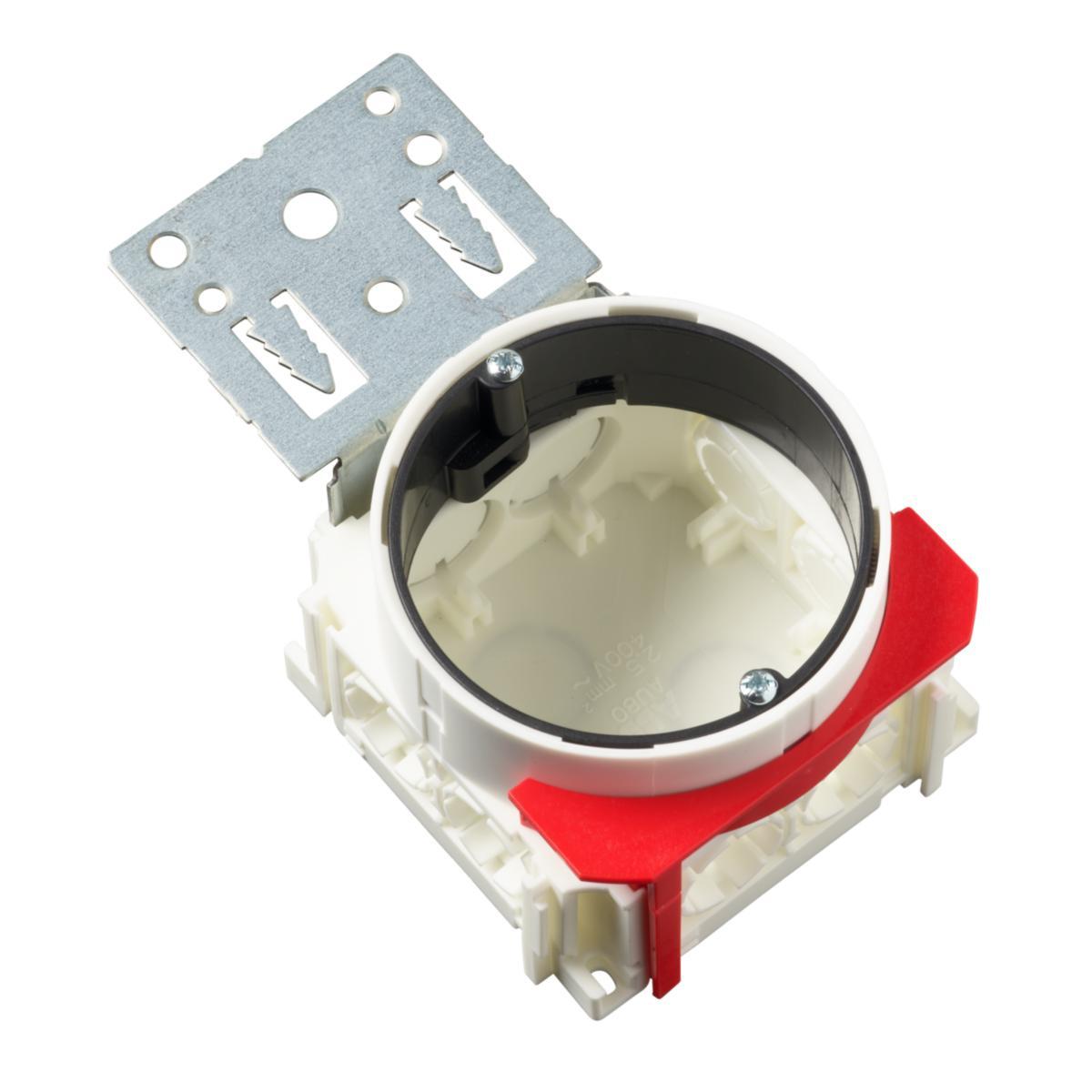

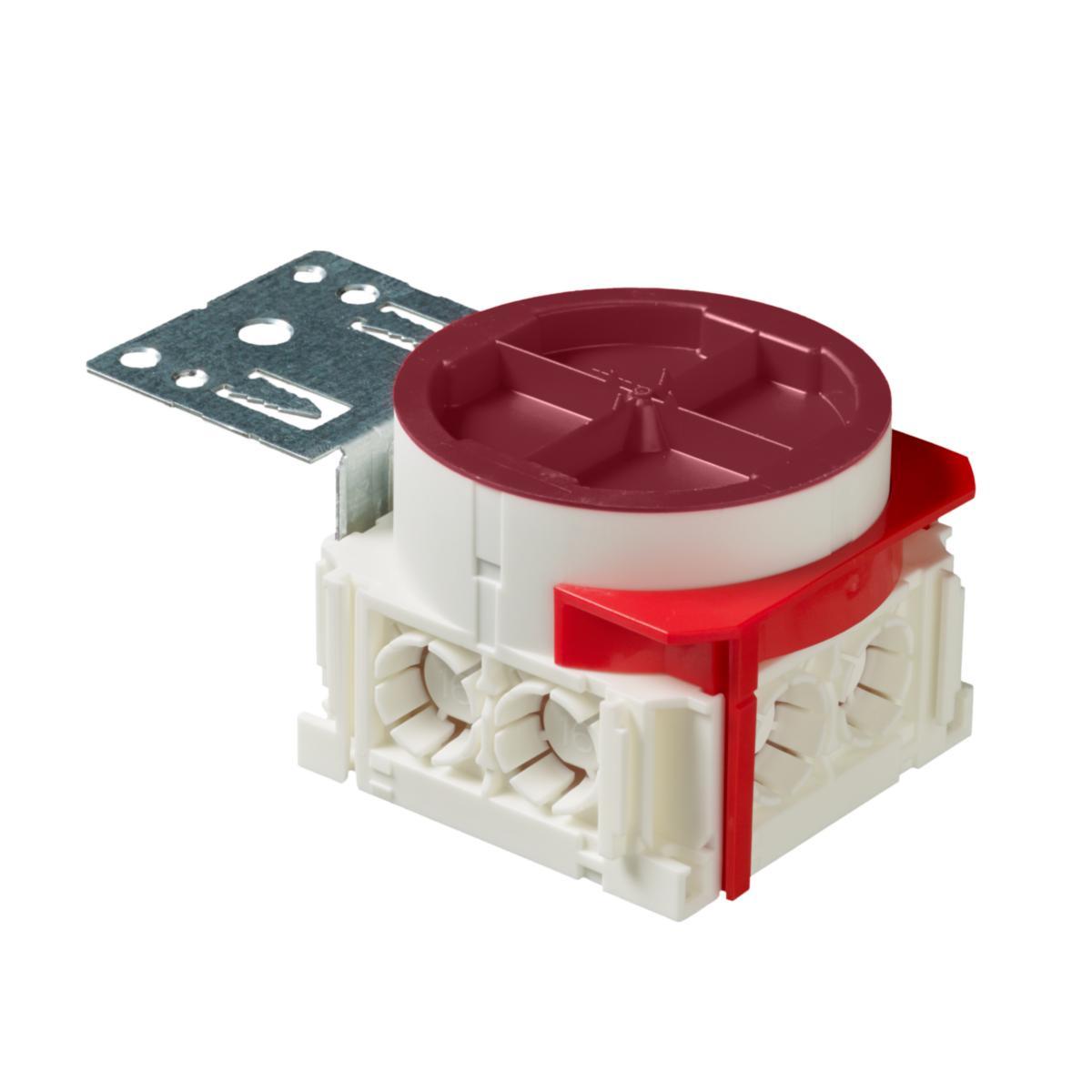

The device box is intended for installations with flexible pipes. There are six knockouts for 16/20 mm pipes and two for 20 mm pipes. There are two knockouts at the bottom for the lower inlets. The device box includes a rotating, infinitely adjustable mounting ring with two locking wings and two red semicircles that allow installation on panels with a thickness of 12-39 mm. The minimum installation depth is 45 mm and the total height is 58-73 mm. Including stud bracket. Made of halogen-free material (IEC/61249-2-21) and meets the requirements for the glow wire test according to the standard IEC/EN60670: 2005 (850 °C).
- Article number: 1420954
- Suppl. article no: 2TKA00002541
- Ean no: 6438199004273
- Material class QE5600
Technical data
- Packagin Size: 1 PCS/60 PCS
- Model: Single
- Suitable for wall/board thickness: 13-26 mm
- Construction type: Built-in installation box (device box)
- Shape: Round
- Colour: White
- Diameter: 70 mm
- Number of inlets: 8
- For tube diameter: 16/20 mm
- Equipped with: None
- Width: 74 mm
- Length: 74 mm
- Mounting method: Flush-mounted
- Inner depth: 54 mm
- For number of device inserts: 1
- Degree of protection (IP): IP3X
- Material: Plastic
- Halogen free: Yes
- Inlet from the rear: Yes
- Pipe locking: Yes
- Mounting switching equipment: Screwing
- Transparent cover: No
- With screws: Yes
- Sealable: No
- Cover attachment: Snapped on
- Surface protection: Untreated
- Couplable: Yes
- Housing feed-through by seal membrane: No
- Housing feed-through by nozzle: Yes
- Housing feed-through by step membrane: No
- Housing feed-through by break-out opening: Yes
- Provided with revolving ring: Yes
- Cover model: Construction protective cover
- REACH Date: 2025-07-01
- REACH Information obligation: No
