Schneider Electric

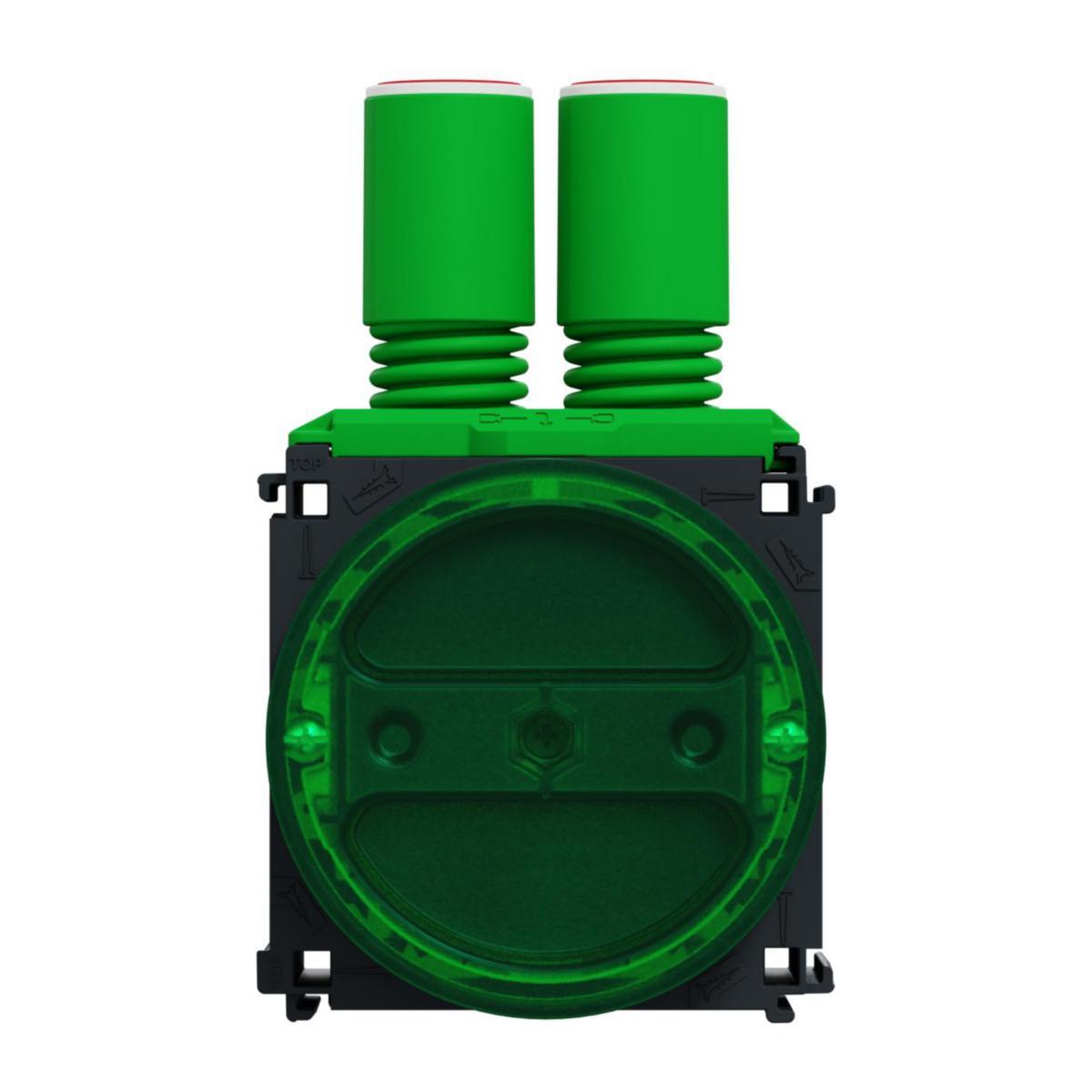

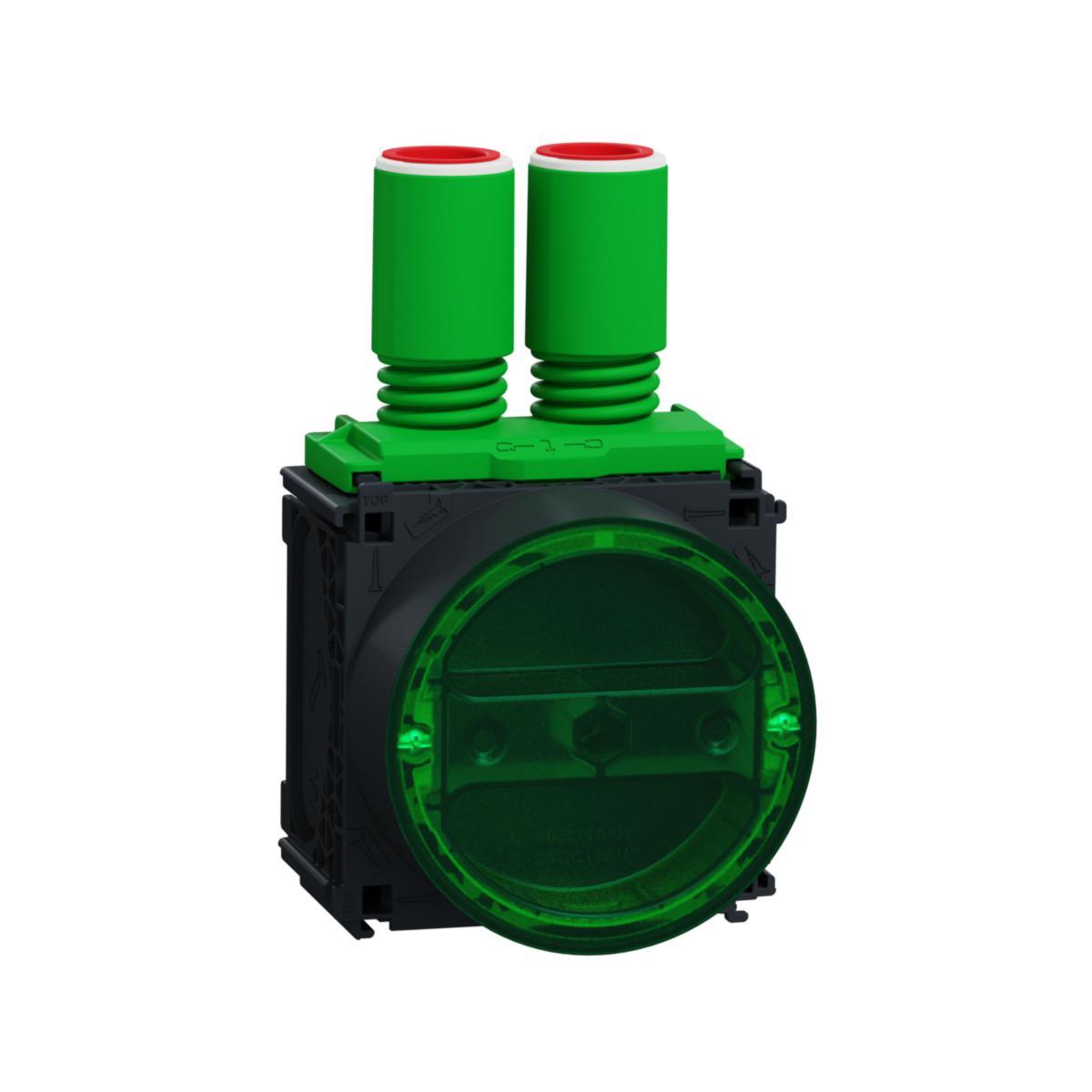

Device box Multifix High
APP.BOX 1M 26-39MM. 2 STUBS IMT80251
Article number: Suppl. article no:
1420184
IMT80251
to see price and stock
Simple device box with adjustable ring for recessed use Choose box according to board thickness.
- Article number: 1420184
- Suppl. article no: IMT80251
- Ean no: 3606481455550
- Material class QE5201
Technical data
- Packagin Size: 1 ST/50 ST/900 ST
- Type: IMT80251
- Product series: Multifix
- Suitable for wall/board thickness: 24-39 mm
- Model: Single
- For tube diameter: 16/20 mm
- Shape: Round
- Number of included spouts: 2
- Number of inlets: 2
- Diameter: 73 mm
- Colour: Grey
- Depth: 69 mm
- Width: 71 mm
- Length: 123 mm
- Construction type: Device connection box (round/square)
- Mounting method: Flush-mounted
- Inner depth: 67 mm
- Special application: None
- Degree of protection (IP): IP30
- Material: Plastic
- Halogen free: Yes
- Inlet from the rear: Yes
- Pipe locking: Yes
- Number of poles of the clamp: 0
- Mounting switching equipment: Screw or spread out
- Luminaire hook mounting: No
- Transparent cover: No
- Clamp position fixed: No
- With screening: No
- With screws: Yes
- Nozzle: None
- Sealable: No
- Cover attachment: Snapped on
- Airtight: No
- Surface protection: Untreated
- Couplable: Yes
- Housing feed-through by seal membrane: No
- Housing feed-through by nozzle: Yes
- Housing feed-through by step membrane: No
- Housing feed-through by break-out opening: Yes
- Pipe locking optional: No
- For number of device inserts: 1
- Provided with revolving ring: Yes
- Cover model: Suitable for snap-in connector (manufacturer specific)
- Circuit integrity: None
- With partition panel: No
- Compliant with BS 4662: No
- REACH Date: 2024-07-31
- REACH Information obligation: No
- With nail lugs: No
