Ceiling boxes Elko white
40/246 FLUSH MOUNTING BOX EKO06796
Article number: Suppl. article no:
1420272E
EKO06796
to see price and stock

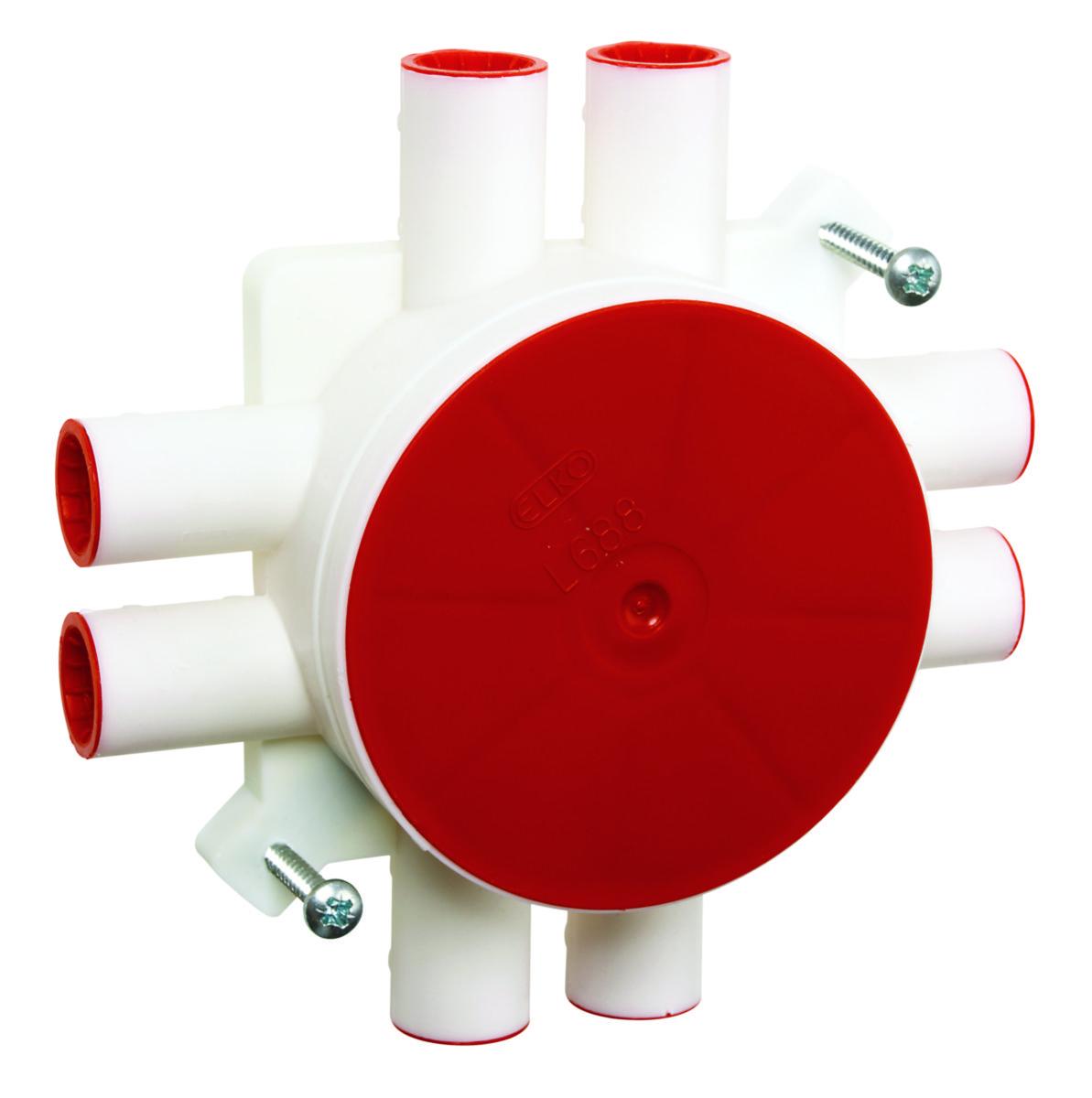

Ceiling box, recessed. The boxes are delivered with sealing plugs and latch springs, and grout covers. The pipe outlets are for 16 mm but also fit 20 mm with a pipe sleeve. Delivered complete with mounting screw.
- Article number: 1420272E
- Suppl. article no: EKO06796
- Ean no: 7020160679604
- Material class QE540A
Technical data
- Packagin Size: 1 ST/50 ST/1200 ST
- Type: 40/8
- Suitable for wall/board thickness: 13 mm
- Model: Single
- For tube diameter: 16 mm
- Shape: Round
- Number of included spouts: 0
- Number of inlets: 8
- Diameter: 83 mm
- Colour: White
- Equipped with: None
- Depth: 40 mm
- Width: 134 mm
- Length: 134 mm
- Construction type: Built-in installation box (device box)
- Mounting method: Flush-mounted
- Inner depth: 40 mm
- Special application: None
- Degree of protection (IP): IP20
- Material: Plastic
- Halogen free: Yes
- Inlet from the rear: Yes
- Pipe locking: No
- Number of poles of the clamp: 0
- Mounting switching equipment: Screwing
- Luminaire hook mounting: No
- Transparent cover: No
- Clamp position fixed: No
- With screening: No
- With screws: Yes
- Nozzle: Other
- Sealable: No
- Cover attachment: Snapped on
- Airtight: No
- Surface protection: Untreated
- Couplable: No
- Housing feed-through by seal membrane: No
- Housing feed-through by nozzle: Yes
- Housing feed-through by step membrane: No
- Housing feed-through by break-out opening: No
- Pipe locking optional: No
- For number of device inserts: 1
- Provided with revolving ring: Yes
- Cover model: Construction protective cover
- Circuit integrity: None
- With partition panel: No
- Compliant with BS 4662: No
- REACH Date: 2023-12-31
- REACH Information obligation: No
- With nail lugs: Yes
