Connection terminals 1-pole

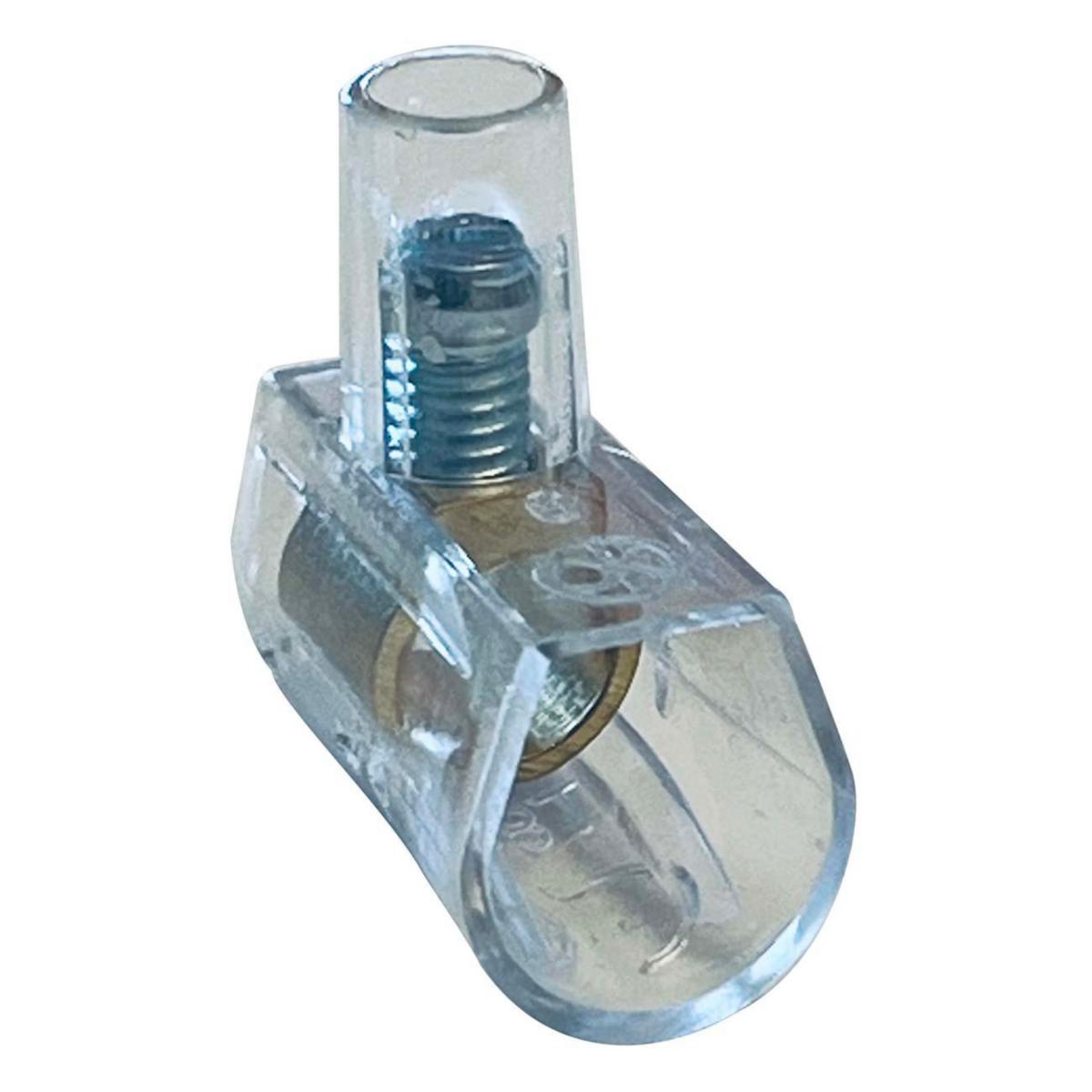

Terminal Block 6mm2
Article number: Suppl. article no:
1441246
1441246
to see price and stock
Transparent polycarbonate cover (UL94-VO), brass clamp and galvanized steel screw. Halogen-free. Max area is indicated for coupling two wires with the same area, 6 mm² meaning that two 6mm² conductors can be connected in the clamp. It is also possible to connect multiple wires with the same maximum area as two wires with the specified maximum area, so for 6 mm² there can be max 8 wires of 1.5 mm² or 4 wires of 2.5 mm².
- Article number: 1441246
- Suppl. article no: 1441246
- Material class QE9120
Technical data
- Packagin Size: 50 PCS/5000 PCS
- Type: OK6/1
- Number of poles: 1
- Connectable conductor cross section solid-core: 2.5-6 mm²
- Width: 12 mm
- Depth: 24 mm
- Height: 24 mm
- Connectable conductor cross section multi-wired: 2.5-6 mm²
- Rated voltage: 450 V
- Type of electrical connection 1: Screw connection
- Material insulation body: Other
- Transparent: Yes
- Halogen free: Yes
- REACH Date: 2022-06-15
- REACH Information obligation: No
