AhlsellProductsElectricInstallation equipment 11-1814 Pipe laying materialsCoupling clamps and coupling stripsConnection terminals
Wago

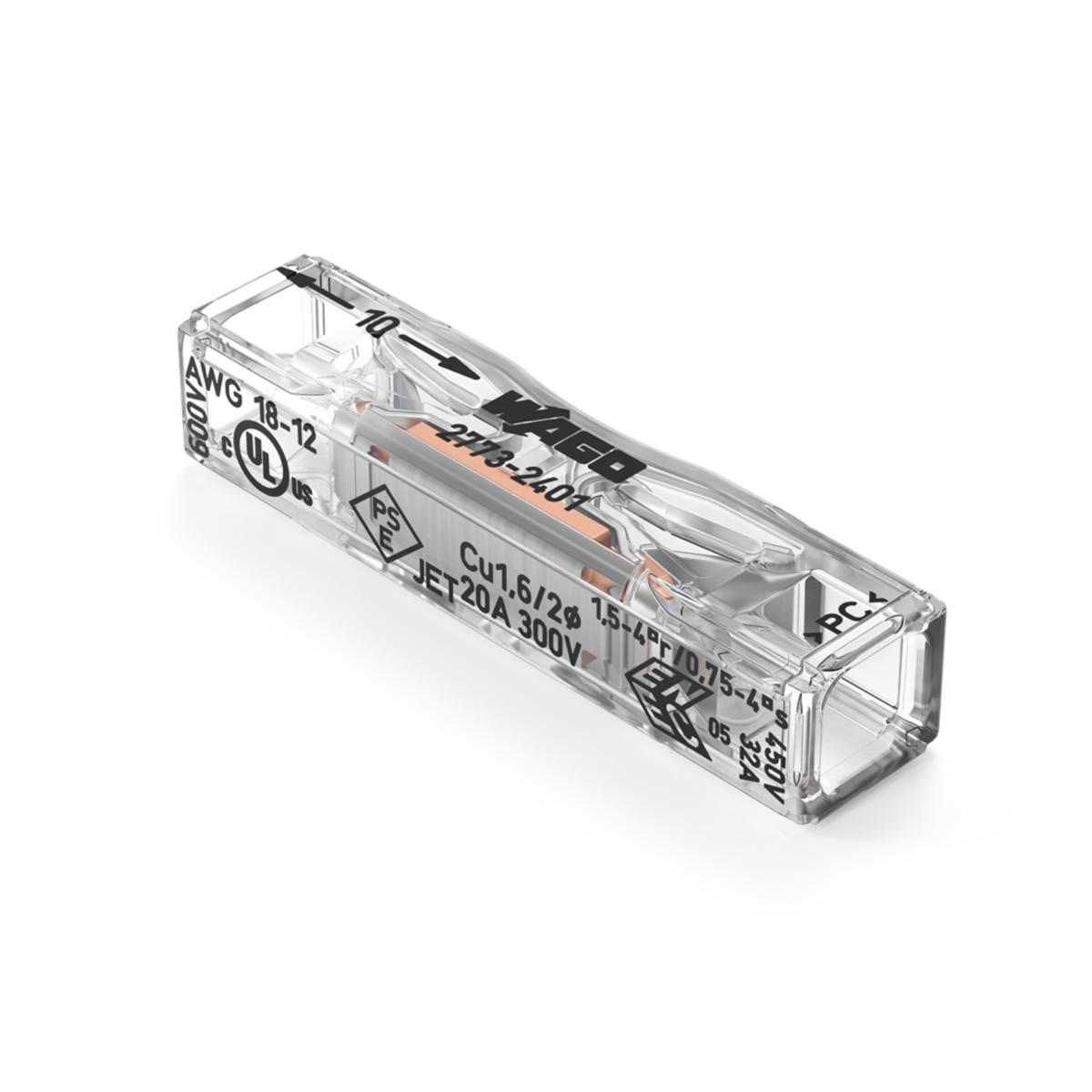

Coupling clamp 2773 straight joint for all conductor types push in
Push Wire Inline Connector
Article number: Suppl. article no:
1441225
2773-2401
to see price and stock
Wago 2773-2401 is a push in splice clamp for solid and twisted cable max 4mm² 32A
Oak 0.75 - 4mm²
FK 1.5 - 4mm²
Transparent casing.
Ambient air temperature max 85C
Oak 0.75 - 4mm²
FK 1.5 - 4mm²
Transparent casing.
Ambient air temperature max 85C
- Article number: 1441225
- Suppl. article no: 2773-2401
- Ean no: 4066966321630
- Material class QE9111
Technical data
- Packagin Size: 100 PCS/1000 PCS/176000 PCS
- Number of clamp positions (installation side): 2
- Conductor cross section solid (solid, stranded): 0.75-4 mm²
- Conductor cross section flexible (fine-strand) with cable end sleeve: 0.75-4 mm²
- Colour: Colourless
- Nominal voltage: 450 V
- Nominal current: 32 A
- Suitable for flexible conductors: No
- Suitable for multi-wire conductors: Yes
- Suitable for solid conductors: Yes
- Transparent: Yes
- REACH Date: 2023-05-17
- REACH Information obligation: No
