HellermannTyton

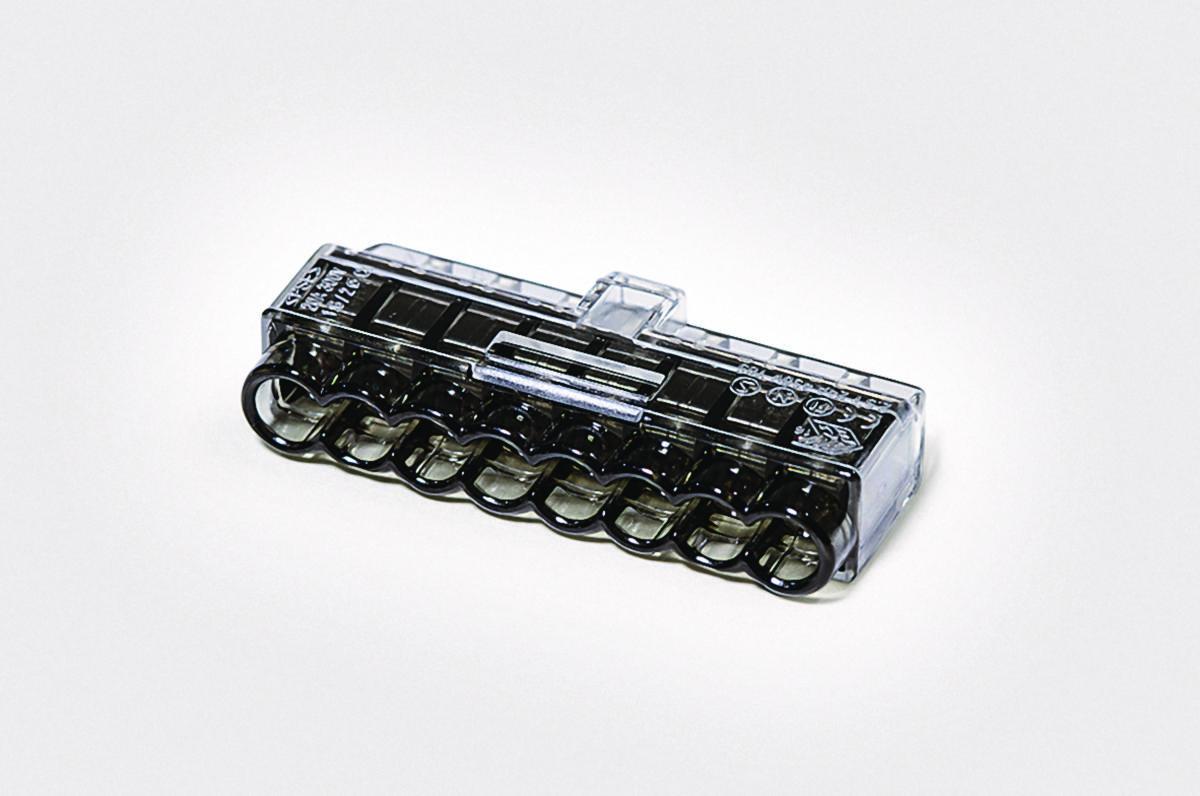

Helacon Plus Mini connection clamps
PUSH WIRE CONNECTOR 8-POLE HCPM-8
Article number: Suppl. article no:
1440979
148-90041
to see price and stock

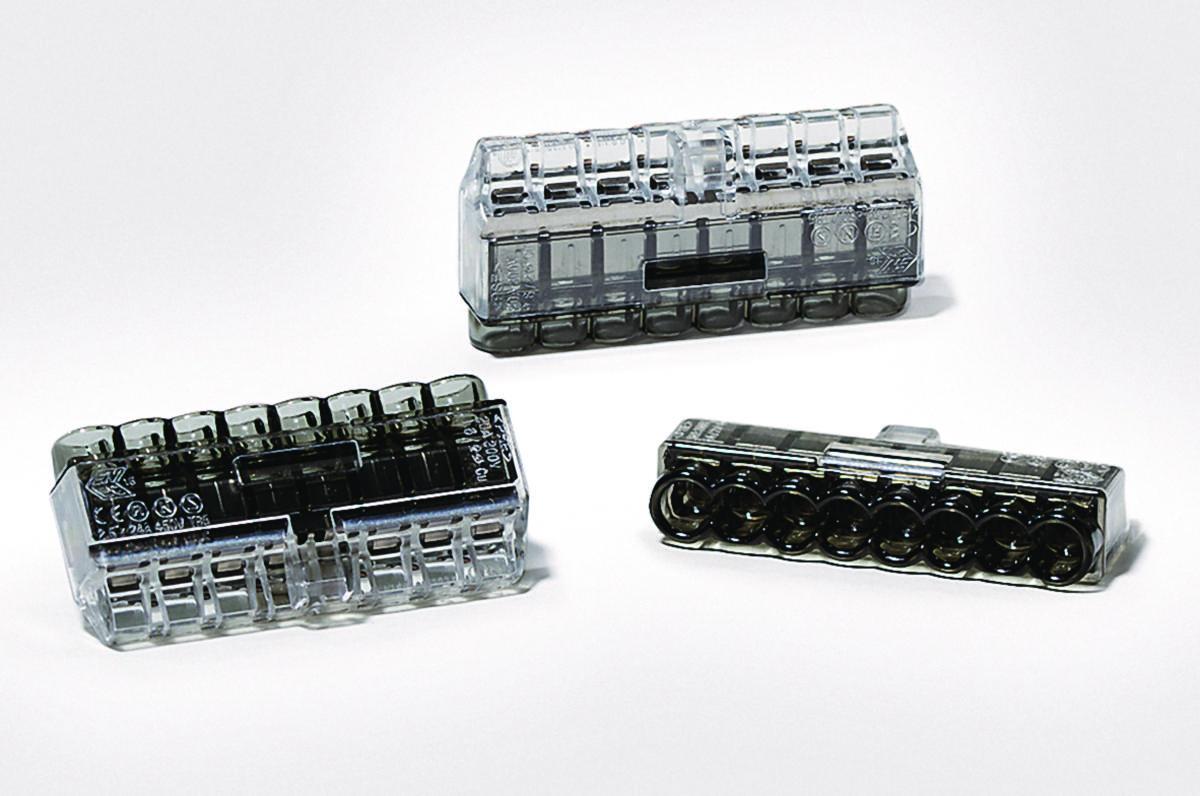

The HelaCon top clamps are used for the quick, simple and reliable connection of cables using push-in-technology without tools. HelaCon Plus Mini has the latest technology - double locking springs that simplify connection and increase safety. Produced for both single and multi-strand conductors
- Article number: 1440979
- Suppl. article no: 148-90041
- Ean no: 4031026530642
- Replaces art.nbr: 1440808
- Material class QE9100
Technical data
- Packagin Size: 1 FRP/63 FRP
- Type: 148-90041
- Number of clamp positions (installation side): 8
- Conductor cross section solid (solid, stranded): 0.5-2.5 mm²
- Colour: Black
- Nominal voltage: 450 V
- Nominal current: 24 A
- Suitable for flexible conductors: Yes
- Suitable for multi-wire conductors: No
- Suitable for solid conductors: Yes
- REACH Date: 2021-01-19
- REACH Information obligation: No
