Helag

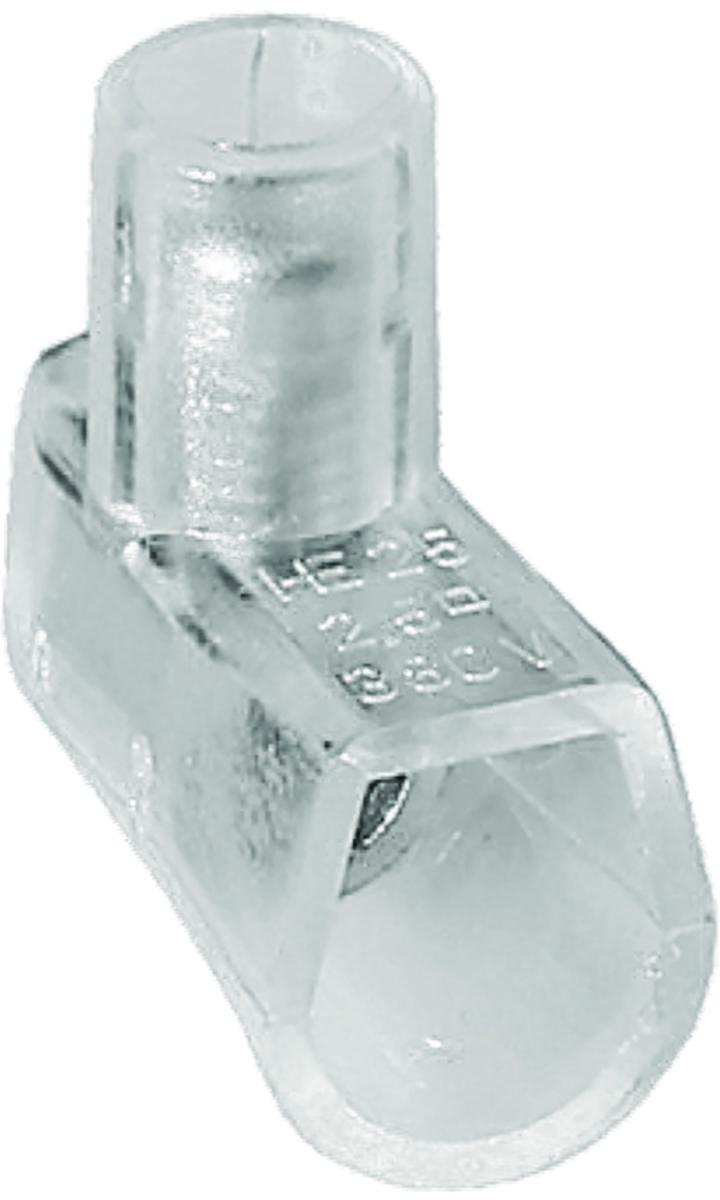

Top clamp HE
TOP CLAMP HE25-1 3x2.5 (100)
Article number: Suppl. article no:
1440880
HE25 POLYKARBONAT
to see price and stock
Top clamp suitable for connecting one or more wired conductors in an installation box, the internal wiring system of appliances or to lighting fixtures.
- Article number: 1440880
- Suppl. article no: HE25 POLYKARBONAT
- Ean no: 7392370000067
- Material class QE919B
Technical data
- Packagin Size: 100 ST
- Type: HE25-1
- Number of poles: 1
- Number of clamp positions per pole: 1
- Colour: Other
- Connectable conductor cross section solid-core: 1.5-2.5 mm²
- Width: 9 mm
- Rated voltage: 400 V
- Type of electrical connection 1: Screw connection
- Connection position: Sideways
- Closing plate required: No
- Operating temperature: 125 °C
- Explosion-tested version 'Ex e': No
- Material insulation body: Thermoplastic
- Mounting method: Other
- Rated current In: 25 A
- Transparent: Yes
