Rutab

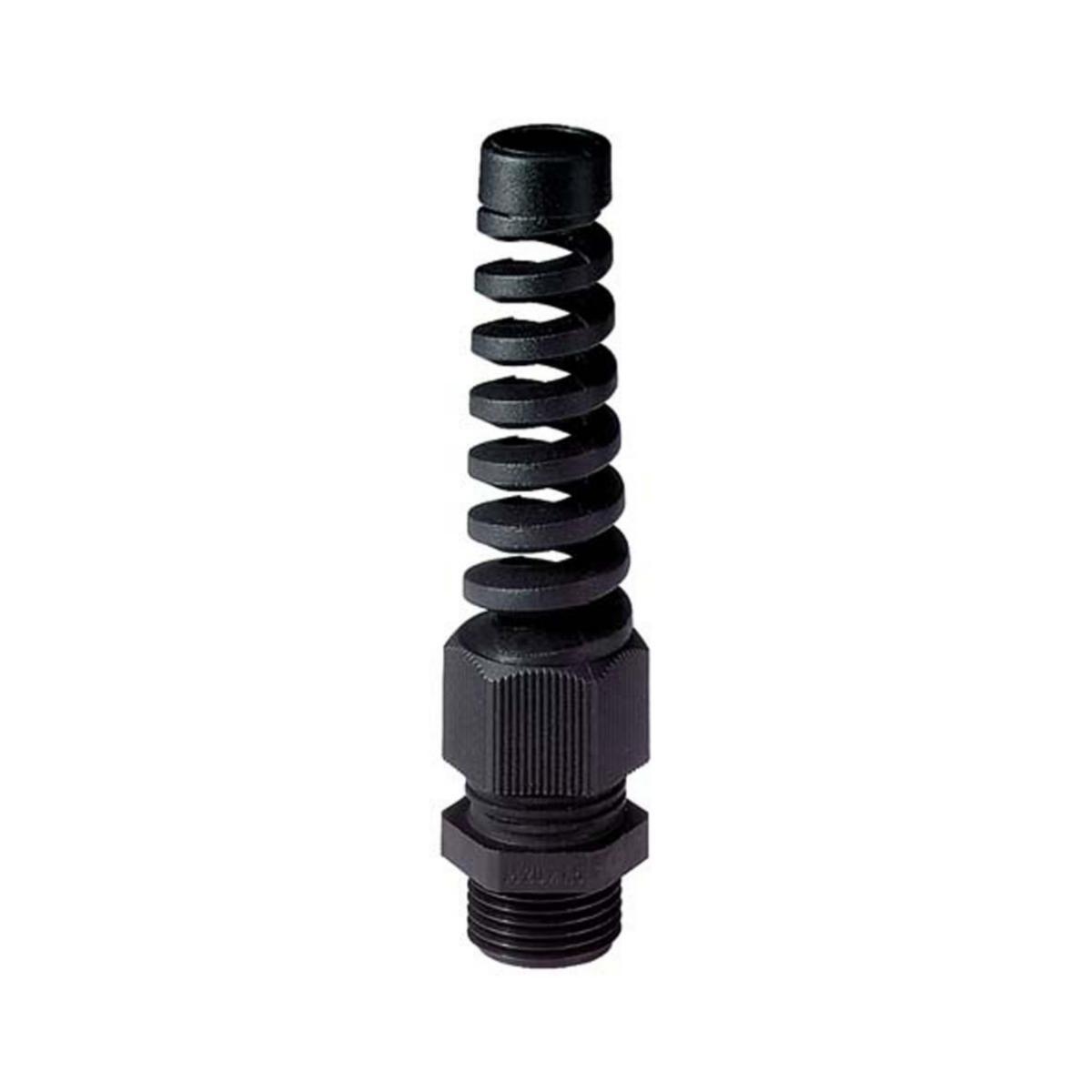

Cable gland black polyamide Perfect, cable connector boot, Metric thread
CABLE GLAND POLYAM M16 BLK CABLE Ø 5-10 IP68 BRK PROT
Article number: Suppl. article no:
1476142
1476142
to see price and stock
Cable gland Perfect with break protection is made of black glass fiber reinforced polyamide according to RAL 9005. Equipped with metric thread. Equipped with neoprene gasket. Perfect is easy to install and has very good stress relief properties. Perfect offers a wide range of tightening options and universal usability. Used especially for moving parts on machines and in the electrical industry in general. Protection class IP68, 5 bar. Halogen-free. Plastic type lower part: Polyamide 6.
Upper part: Polyamide 6 glass fiber reinforced. VDE approved according to DIN 0619.
Upper part: Polyamide 6 glass fiber reinforced. VDE approved according to DIN 0619.
- Article number: 1476142
- Suppl. article no: 1476142
- Ean no: 4024092025457
- Material class QE750B
Technical data
- Packagin Size: 1 ST/100 ST
- Type: 50.616PABS SW
- Model: Straight
- Thread type: Metric
- Nominal thread size metric/PG: 16
- Suitable for cable diameter: 5-10 mm
- Pitch thread: 1.5 mm
- Thread length: 15 mm
- Colour: Black
- RAL-number: 9005
- Wrench width: 22 mm
- Material: Plastic
- Material quality: Polyamide (PA)
- Multi seal area: No
- EMC-version: No
- With strain relief: Yes
- Type of sealing: Sealing ring
- Degree of protection (IP): IP68
- Working temperature: -20-100 °C
- Explosion-tested version: No
- With locknut: No
- Flat cable coupling: No
- Bend radius protection/trumpet flare: Yes
- Halogen free: Yes
- Surface protection: Untreated
- For armoured cable: No
- Hexagon angular dimension: 24.5 mm
- REACH Date: 2022-03-23
- REACH Information obligation: No
