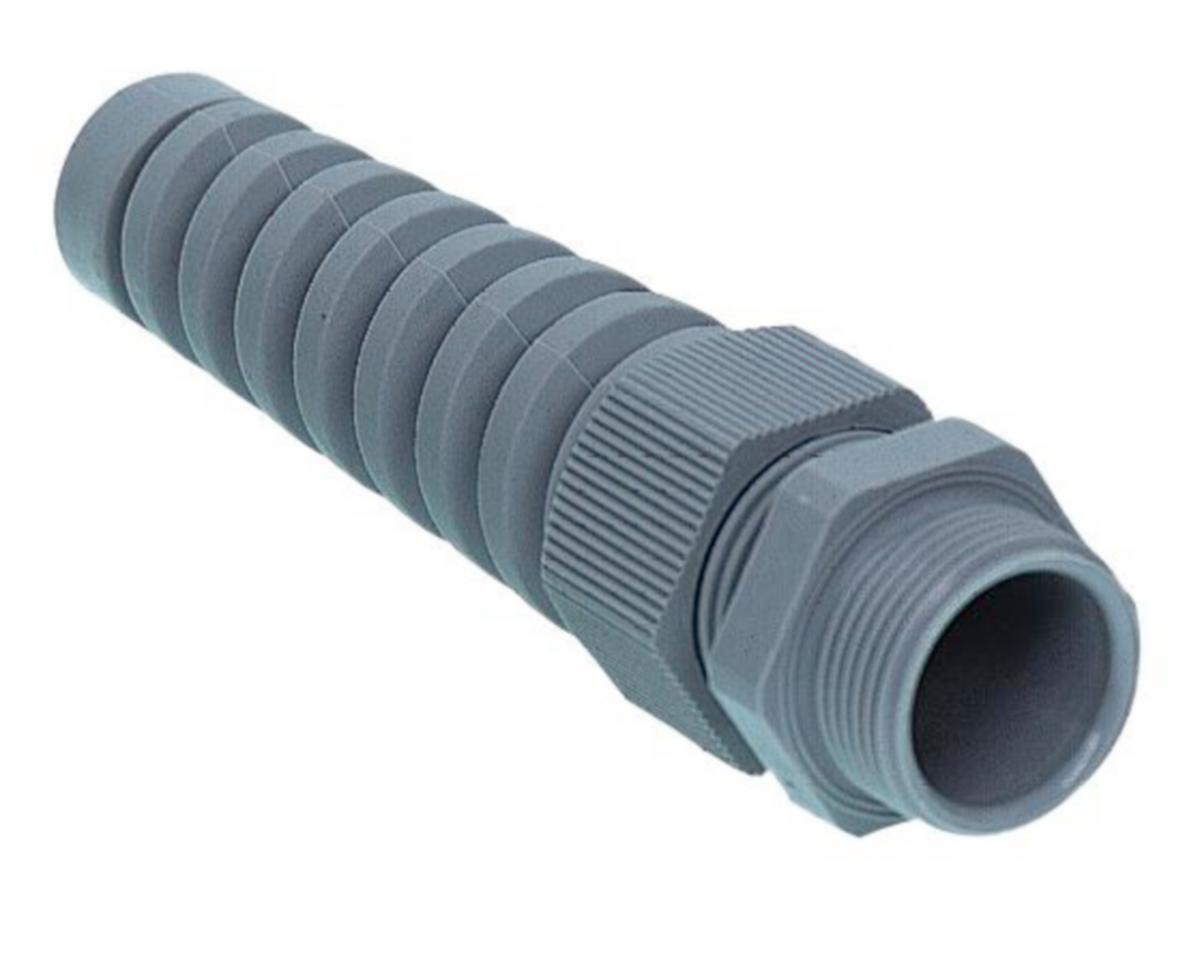

Cable gland Polyamide Perfect, break protection, Metric thread
POLYAMIDE CABLE GLAND M16 GREY CABLE Ø 5-10 IP68 BRK
Article number: Suppl. article no:
1476132
1476132
to see price and stock
Cable gland Perfect with break protection is made of grey glass fibre reinforced polyamide according to RAL 7001. Equipped with metric thread. Equipped with neoprene gasket. Perfect is easy to install and has very good strain relief properties. Perfect offers a wide range of tightening options and universal usability. Used especially for moving parts on machines and in the electrical industry in general. Protection class IP68, 5 bar. Halogen-free. Plastic type lower part: Polyamide 6.
Upper part: Polyamide 6 glass fibre reinforced. VDE approved according to DIN 0619.
Upper part: Polyamide 6 glass fibre reinforced. VDE approved according to DIN 0619.
- Article number: 1476132
- Suppl. article no: 1476132
- Ean no: 4024092115677
- Material class QE750B
Technical data
- Packagin Size: 1 PCS/100 PCS
- Type: 50.616PABS 7001
- Model: Straight
- Thread type: Metric
- Nominal thread size metric/PG: 16
- Suitable for cable diameter: 5-10 mm
- Pitch thread: 1.5 mm
- Thread length: 15 mm
- Colour: Grey
- RAL-number: 7001
- Wrench width: 22 mm
- Material: Plastic
- Material quality: Polyamide (PA)
- Multi seal area: No
- EMC-version: No
- With strain relief: Yes
- Type of sealing: Sealing ring
- Degree of protection (IP): IP68
- Working temperature: -20-100 °C
- Explosion-tested version: No
- With locknut: No
- Flat cable coupling: No
- Bend radius protection/trumpet flare: Yes
- Halogen free: Yes
- For armoured cable: No
- Hexagon angular dimension: 24.5 mm
- REACH Date: 2022-03-23
- REACH Information obligation: No
