Rutab

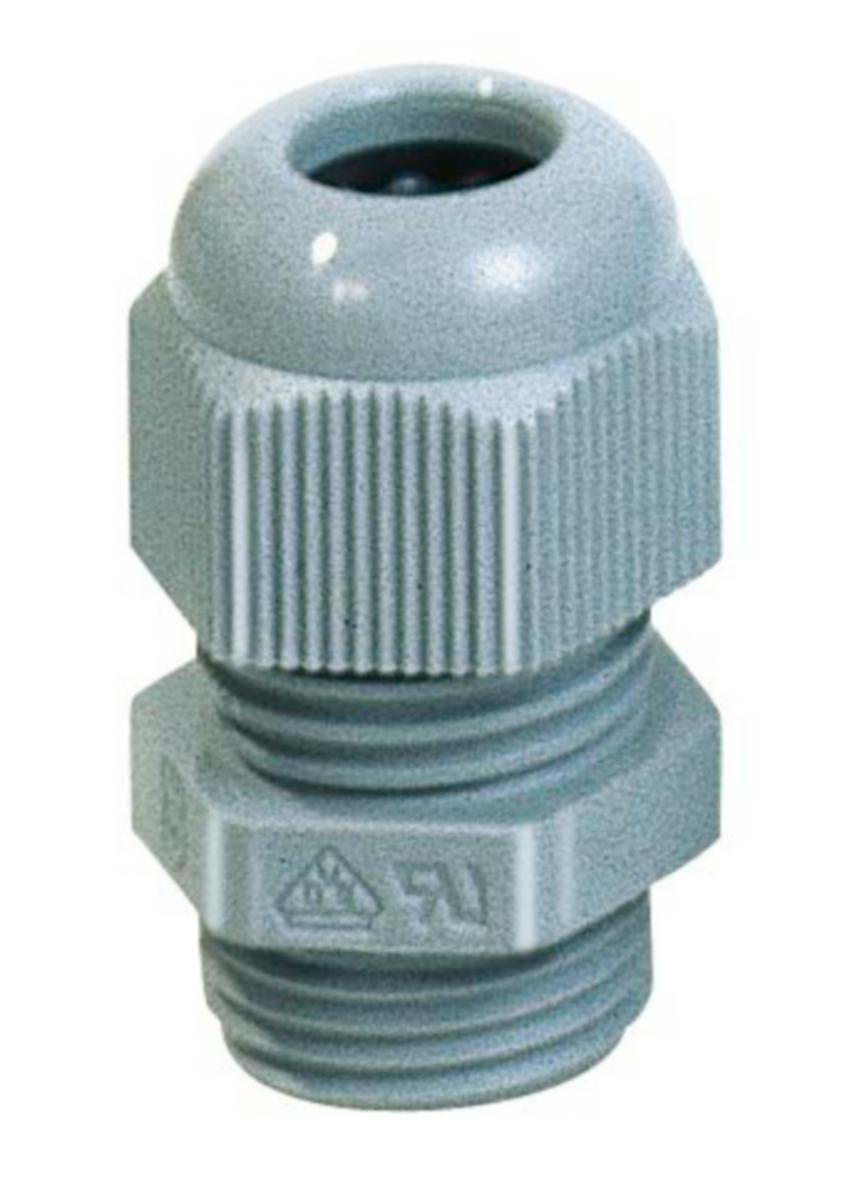

Cable gland Polyamide "Perfect", PG thread with integrated tension relief
CABLE GLAND IP68 PG7 3-6,5
Article number: Suppl. article no:
1459912
1459912
to see price and stock
The "Perfect" cable gland is made of grey fibreglass-reinforced polyamide in accordance with RAL 7001. Equipped with gasket of neoprene. “Perfect" is easy to mount and has very good strain relief properties. “Perfect" offers great tightening variability and universal application. Upper section: Polyamide 6 glass fibre-reinforced. VDE approved in accordance with DIN 0619. UL approved. SEV approved. UR registered.
- Article number: 1459912
- Suppl. article no: 1459912
- Ean no: 4024092012044
- Material class QE750B
Technical data
- Packagin Size: 1 PCS/100 PCS/4000 PCS
- Model: Straight
- Thread type: PG
- Nominal thread size metric/PG: 7
- Suitable for cable diameter: 3-6.5 mm
- Pitch thread: 1.27 mm
- Thread length: 8 mm
- Colour: Grey
- RAL-number: 7001
- Wrench width: 15 mm
- Material: Plastic
- Material quality: Polyamide (PA)
- Multi seal area: No
- EMC-version: No
- With strain relief: Yes
- Type of sealing: Sealing ring
- Degree of protection (IP): IP68
- Working temperature: -20-100 °C
- Explosion-tested version: No
- With locknut: No
- Flat cable coupling: No
- Bend radius protection/trumpet flare: No
- Halogen free: Yes
- For armoured cable: No
- Hexagon angular dimension: 16.5 mm
- Shock resistant: Yes
- REACH Date: 2022-03-23
- REACH Information obligation: No
