Schneider Electric

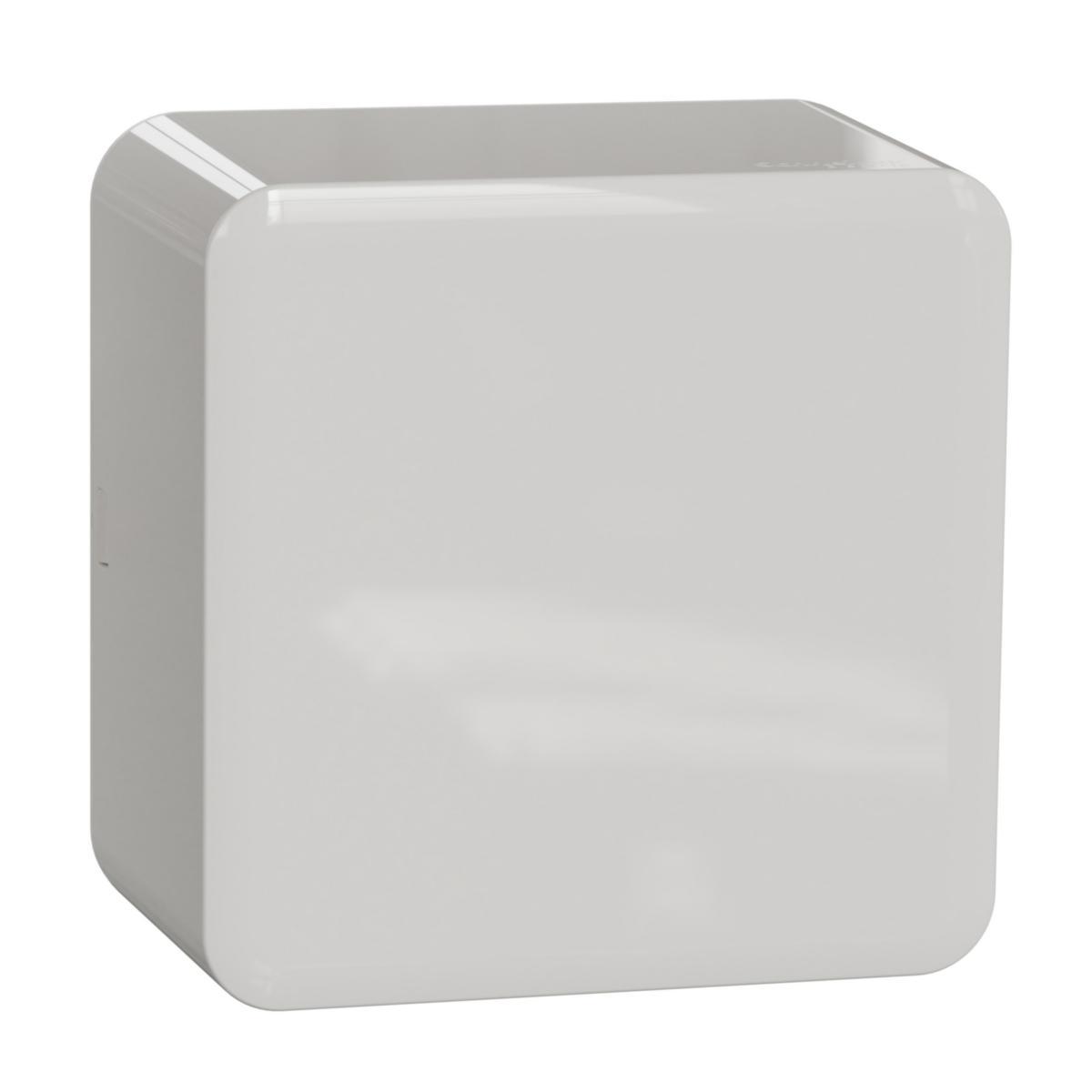

Junction box Exxact surface-mounted
CONNECTION BOX WDE015510
Article number: Suppl. article no:
1438224
WDE015510
to see price and stock
Junction box for surface installation. 440V. Without plinth. Inputs for cables from the back through outlets in the base plate or from all sides using cut-outs in the cover. Base plate is prepared to use cable ties as strain relief of outgoing cable.
- Article number: 1438224
- Suppl. article no: WDE015510
- Ean no: 3606489504434
- Material class QH1600
Technical data
- Packagin Size: 1 ST/5 ST/140 ST
- Product series: Exxact
- Number of inlets: 2
- Max. conductor cross section: 2.5 mm²
- Width: 65 mm
- Length: 65 mm
- Depth: 36 mm
- Cover attachment: Snapped on
- Equipped with: Mounting plate
- Degree of protection (IP): IP20
- Colour: White
- RAL-number (similar): 9010
- Casting compound included: No
- Castable: No
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- With screening: No
- Shape: Square
- Inlet from the rear: Yes
- Type of housing feed-through: Preembossing
- Mounting method: Wall-/ceiling mounting
- Halogen free: Yes
- Weatherproof: No
- Connectable: No
- Cover model: Blind cover
- Working temperature: -5-40 °C
- Sealable: No
- Surface protection: Untreated
- Suitable for Ex-zone gas: None
- Suitable for Ex-zone dust: None
- Explosion-tested version: No
- Rated insulation voltage Ui: 440 V
- Transparent cover: No
- Circuit integrity: None
- Model: Junction box
- REACH Date: 2025-07-18
- REACH Information obligation: No
