Schneider Electric

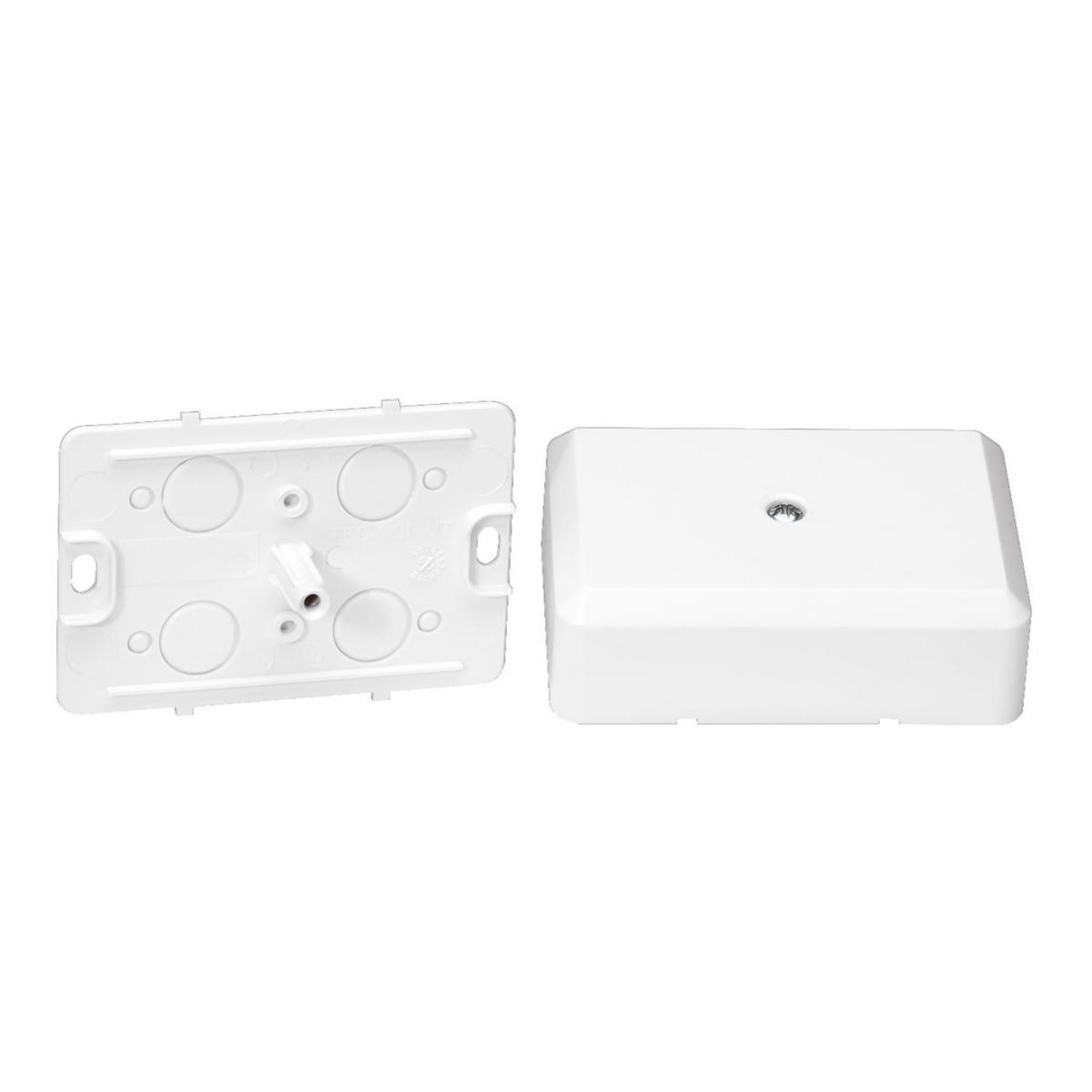

Ball stud box TED001 Mureva
TED-001 JUNCTION BOX W/O TERM
Article number: Suppl. article no:
1438033
IMT34115
to see price and stock
Surface-mounted junction box for dry living environments.
- Article number: 1438033
- Suppl. article no: IMT34115
- Ean no: 3606481166555
- Material class QE6701
Technical data
- Packagin Size: 1 ST/5 ST/330 ST
- Product series: Mureva
- Number of inlets: 10
- Width: 25 mm
- Length: 60 mm
- Depth: 91 mm
- Cover attachment: Screwed
- Equipped with: None
- Degree of protection (IP): IP20
- Colour: White
- RAL-number (similar): 9003
- Casting compound included: No
- Castable: No
- Material: Plastic
- Mounting under water: No
- Mounting in the soil: No
- With screening: No
- Shape: Rectangular
- Inlet from the rear: Yes
- Type of housing feed-through: Trimmable step membrane
- Mounting method: Wall-/ceiling mounting
- Halogen free: No
- Weatherproof: No
- Connectable: Yes
- Cover model: Blind cover
- Working temperature: -25-40 °C
- Sealable: No
- Surface protection: Untreated
- For Ex-zone gas: None
- For Ex-zone dust: None
- Explosion-tested version: No
- Rated insulation voltage Ui: 440 V
- Transparent cover: No
- Circuit integrity: None
- Model: Junction box
- REACH Date: 2025-07-18
- GWP-tot (A1-A3): 0,3381 kgCO2e/ST
- REACH Information obligation: No
