Schneider Electric
Base profile POL W1
POL-W1 WHITE 5860101
Article number: Suppl. article no:
1168026
5860101
to see price and stock

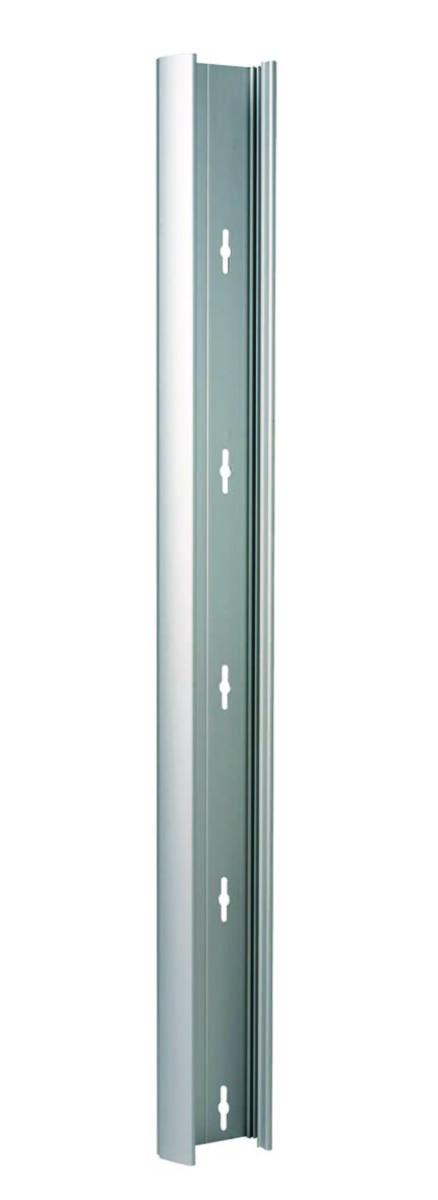

Base profile 2700mm. For service contents type CYB or CAN. For installation of other manufacture (c/c 60 standard) installation box type MIB is used. Pre-punched holes in back for easy mounting. Provided with internal screw groove for earth connection. Supplemented with service contents, front FCA-F80, end piece, collar, cable holder, mounting profile and ceiling frame.
- Article number: 1168026
- Suppl. article no: 5860101
- Ean no: 7315880079712
- Material class QD160B
Technical data
- Packagin Size: 1 ST/2 ST/80 ST
- Type: POL-W1
- Width: 115 mm
- Depth: 49 mm
- Length: 2700 mm
- Colour: White
- RAL-number: 0
- Number of covers: 0
- Covers included: No
- Cover width 1: 0 mm
- Cover width 2: 0 mm
- Cover width 3: 0 mm
- Material: Aluminium
- Material quality: Other
- Bottom perforation: Yes
- Halogen free: Yes
- Symmetric: Yes
- Construction type rectangular: Yes
- Surface protection: Coated
- Construction rear wall (inner side): Continuous C-profile
- With protective foil: Yes
- Number of plug-in partitions: 1
- With duct connector: No
- Mounting method cover: Spanned
- With cable fixing clip: No
- Usable cross section: 5635 mm²
- Anti-bacterial treatment: No
- Working temperature: -15-60 °C
- Degree of protection (IP): IP40
- Impact strength: IK08
- Product series: Pol
- REACH Date: 2025-07-18
- REACH contains candidate substances: 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)
- REACH Information obligation: Yes
