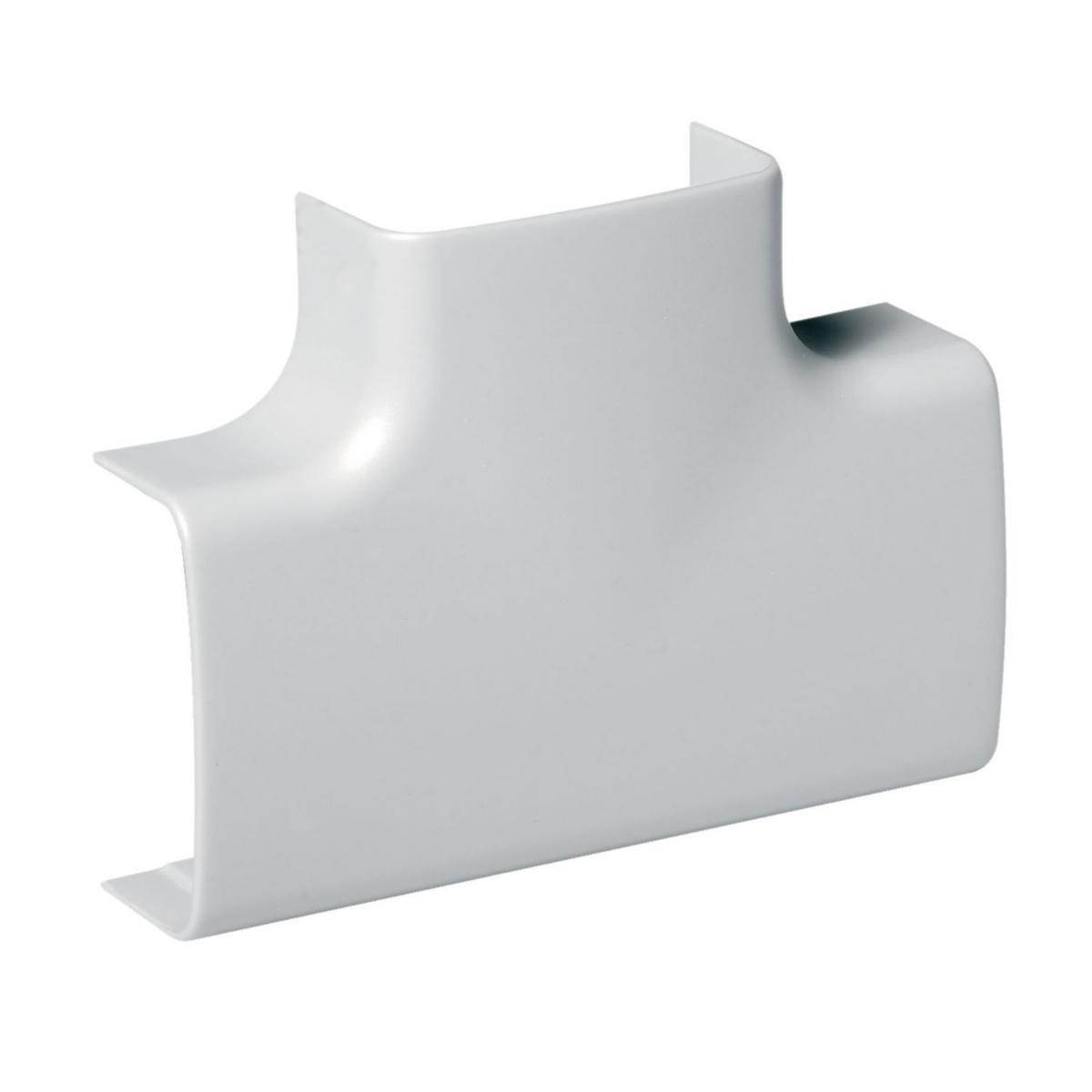

T-piece Optiline, Schneider-Electric
MINI 25X60 T-PIECE POLAR WHITE ISM14606P
Article number: Suppl. article no:
1169678
ISM14606P
to see price and stock
T-piece for 90° offset upward, downward, and to the side of the OptLine mini-duct of corresponding dimension. Snaps into place on the bottom section; covers the seams toward the front by approx. 5 mm. Removal requires tools. Provides a bend radius of 35 mm for cables with Ø7 mm diameter.
- Article number: 1169678
- Suppl. article no: ISM14606P
- Ean no: 3606480683459
- Material class QD520A
Technical data
- Packagin Size: 1 ST/10 ST
- Type: ISM14606P
- Product series: OptiLine
- Outgoing height: 25 mm
- Outgoing width: 60 mm
- Height: 25 mm
- Width: 60 mm
- Colour: White
- RAL-number: 9003
- Halogen free: Yes
- Material: Plastic
- Material quality: Polycarbonate (PC)/ABS
- Model: Moulded hood
- With protective foil: No
- Type of fastening: Snap on
- Suitable for circuit integrity: No
- Surface protection: Untreated
- Working temperature: -5-60 °C
- Degree of protection (IP): IP40
- Impact strength: IK07
- REACH Date: 2024-07-31
- REACH contains candidate substances: 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)
- REACH Information obligation: Yes
