Schneider Electric

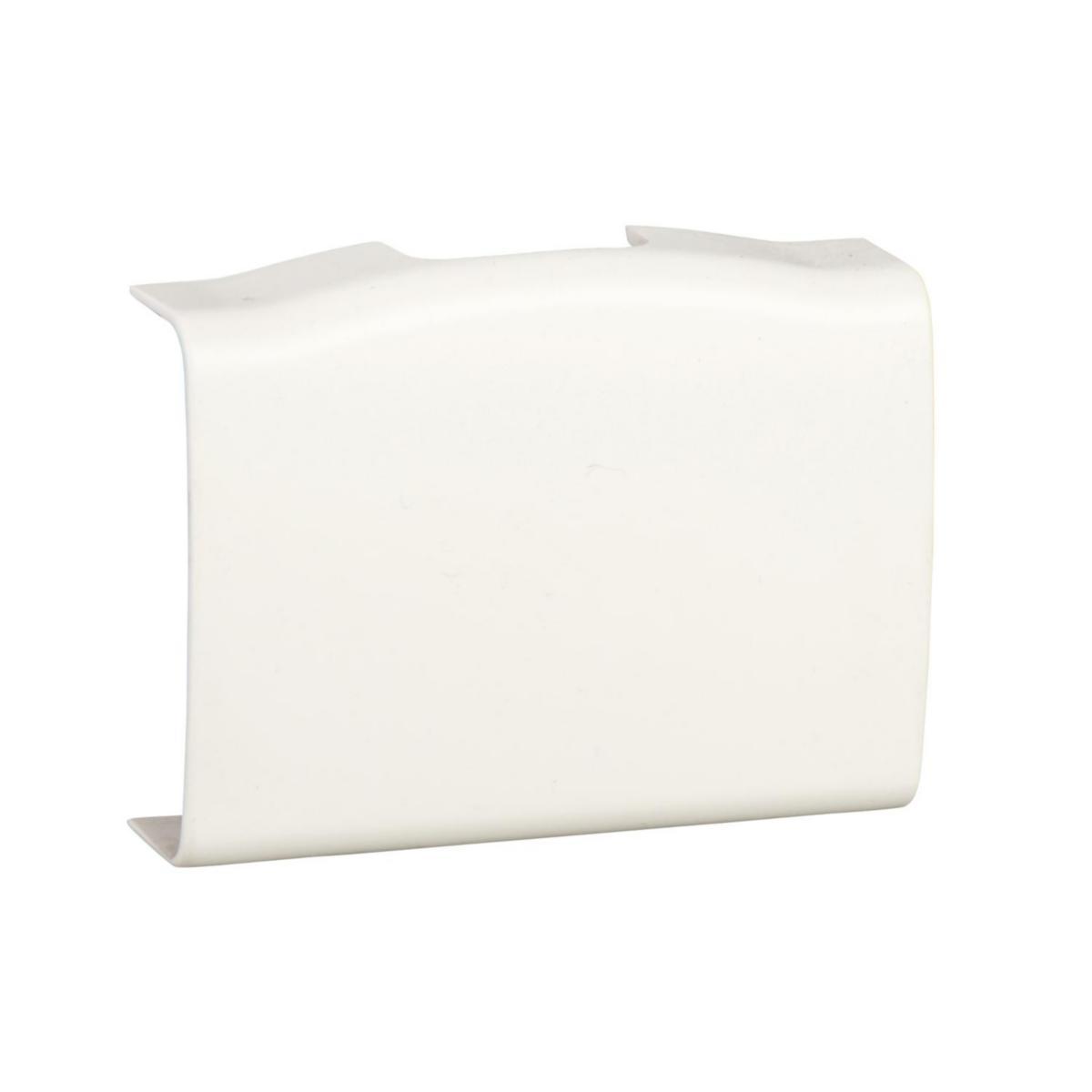

Connection piece Optiline, Schneider-Electric
MINI BRANCHING P12X20-18X45PWH
Article number: Suppl. article no:
1169632
ISM14507P
to see price and stock
Connector piece that enables branching to a smaller dimension of the OptiLine mini-duct. Snaps into place on the bottom section; covers the seams toward the front by approx. 5 mm. The connector piece cannot be removed without tools.
- Article number: 1169632
- Suppl. article no: ISM14507P
- Ean no: 3606480683473
- Material class QD520A
Technical data
- Packagin Size: 1 ST/10 ST
- Product series: OptiLine
- Outgoing height: 12 mm
- Outgoing width: 20 mm
- Height: 18 mm
- Width: 45 mm
- Colour: White
- RAL-number: 9003
- Halogen free: Yes
- Material: Plastic
- Material quality: Polycarbonate (PC)/ABS
- Model: Moulded hood
- With protective foil: No
- Type of fastening: Snap on
- Suitable for circuit integrity: No
- Surface protection: Untreated
- Working temperature: -5-60 °C
- Degree of protection (IP): IP40
- Impact strength: IK07
- REACH Date: 2025-07-18
- REACH contains candidate substances: 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)
- Design: Connection piece 1845/1220 for Optoline
- REACH Information obligation: Yes
