Schneider Electric

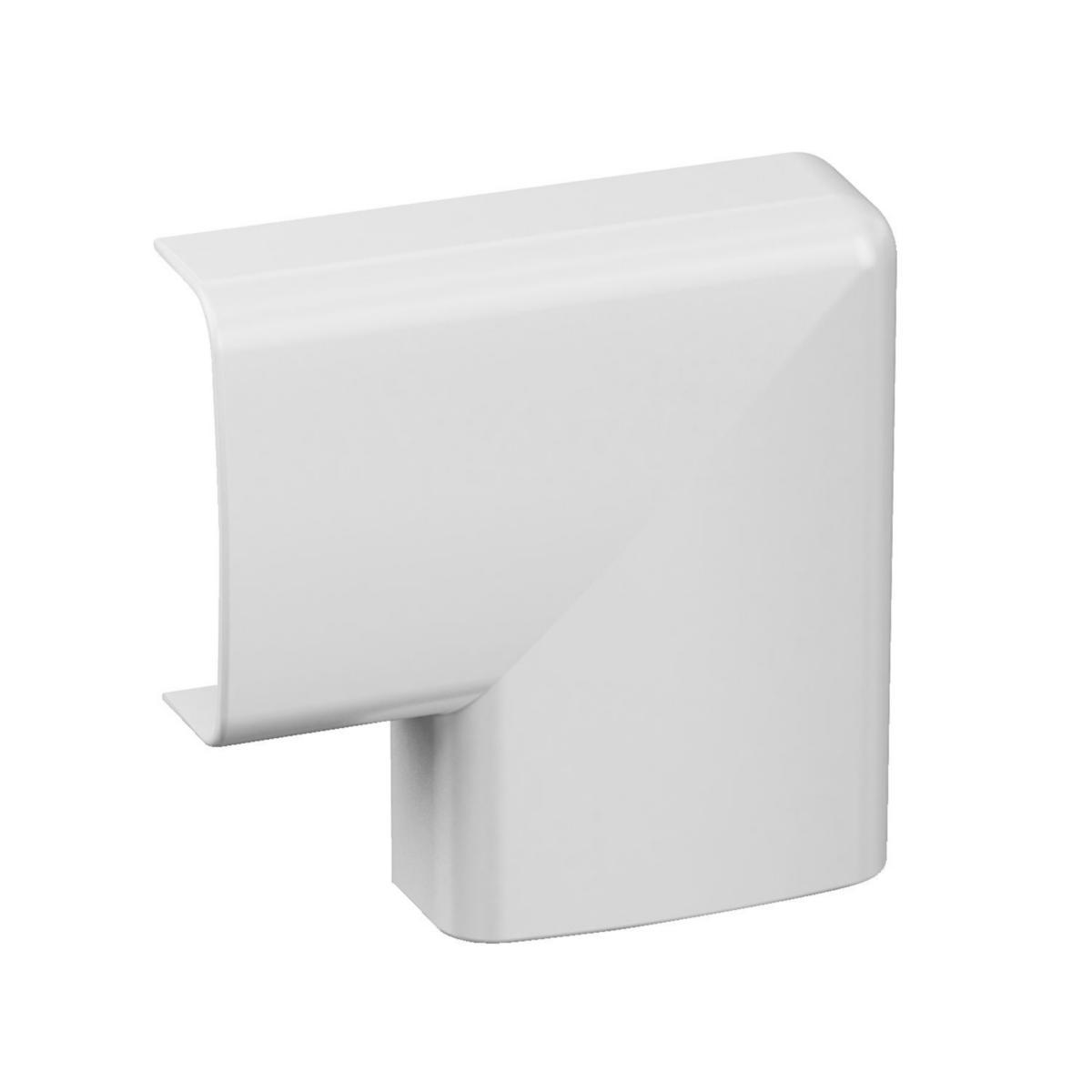

L-Piece Optiline, Schneider-Electric
MINI 12X30 BEND 90 DEGR POL WH ISM14209P
Article number: Suppl. article no:
1169662
ISM14209P
to see price and stock
L-piece for 90° offset of the OptLine mini-duct. Snaps into place on the bottom section; covers the seams toward the front by approx. 5 mm. Removal of the L-piece, when the front is installed, requires tools. Provides a bend radius of 35 mm for cables with Ø7 mm diameter.
- Article number: 1169662
- Suppl. article no: ISM14209P
- Ean no: 3606480683237
- Material class QD520A
Technical data
- Packagin Size: 1 PCS/10 PCS
- Type: ISM14209P
- Width: 30 mm
- Height: 12 mm
- Colour: White
- RAL-number: 9003
- Suitable for circuit integrity: No
- Halogen free: Yes
- Angle: 90 °
- Material: Plastic
- Material quality: Polycarbonate (PC)/ABS
- Model: Moulded hood
- With protective foil: No
- Type of fastening: Snap on
- Surface protection: Untreated
- Anti-bacterial treatment: No
- Working temperature: -5-60 °C
- Degree of protection (IP): IP40
- Impact strength: IK07
- Product series: OptiLine
- REACH Date: 2024-07-31
- REACH contains candidate substances: 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)
- REACH Information obligation: Yes
