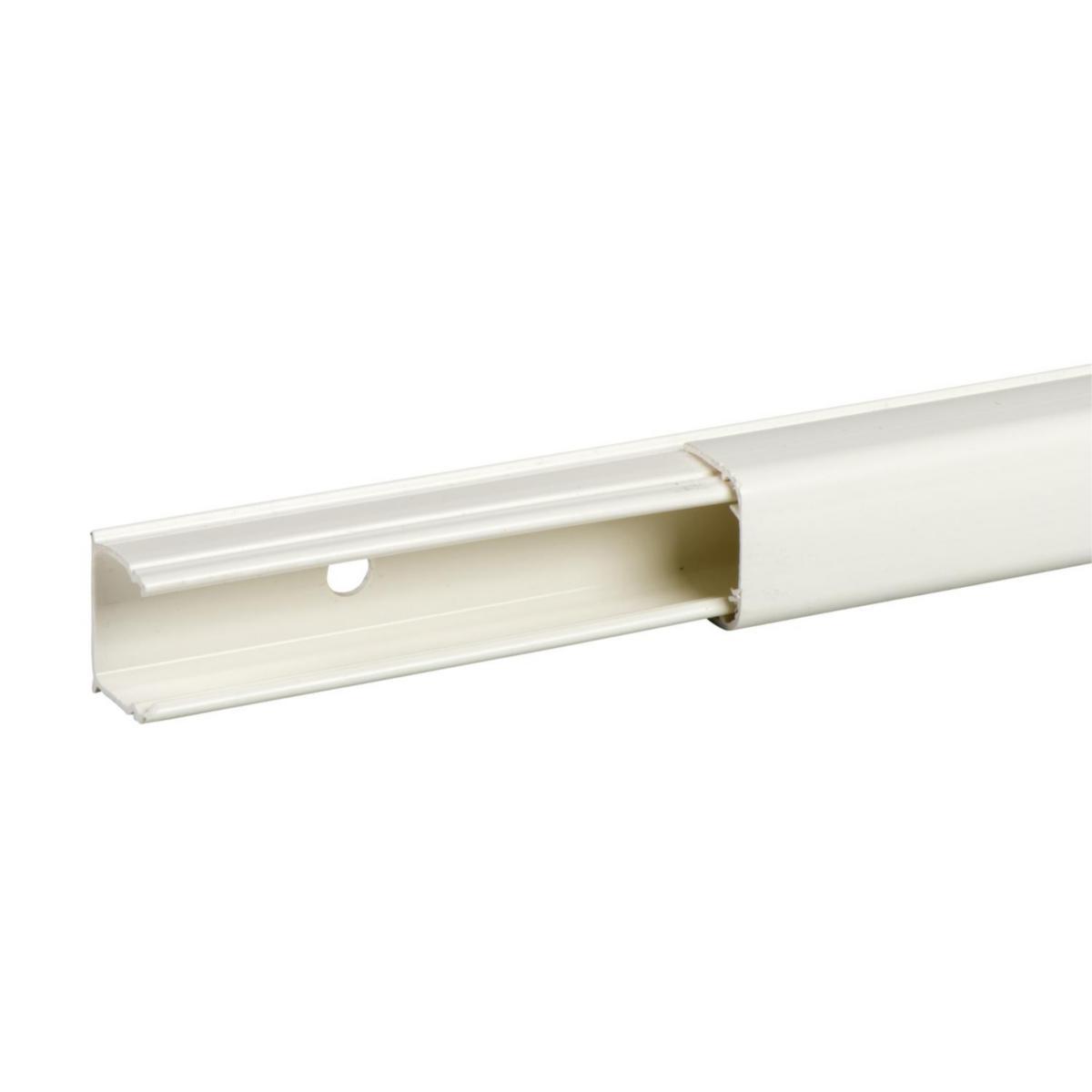

Mini trunking Optiline 1820, Schneider-Electric
MINI 18X20 1-COMP PVC POLAR WH ISM14300P
Article number: Suppl. article no:
1169604
ISM14300P
to see price and stock
OptiLine mini-duct for high- and low-voltage power lines; hole-punched bottom section. Plastic version approved for single-insulated cable. Please use a screw E1534909, which has an insulating collar. Tape installation only for low voltage. Removal requires tools. Available in lead- and cadmium-free PVC, halogen-free plastic, and aluminium
- Article number: 1169604
- Suppl. article no: ISM14300P
- Ean no: 3606480682988
- Material class QD5101
Technical data
- Packagin Size: 1 ST/20 ST/720 ST
- Type: ISM14300P
- Product series: OptiLine
- Width: 20 mm
- Height: 18 mm
- Length: 2100 mm
- Colour: White
- RAL-number: 9003
- Type of fastening: Bottom perforation
- Material: Plastic
- Halogen free: No
- Material quality: Polyvinyl chloride (PVC)
- With cable fixing clip: No
- Number of permanent partitions: 0
- Number of plug-in partitions: 0
- Delivery on roll: No
- Suitable for circuit integrity: No
- With duct connector: No
- With protective foil: No
- Cover model: Loose
- Transparent: No
- Surface protection: Untreated
- Pre-stamping: No
- Anti-bacterial treatment: No
- Working temperature: -5-60 °C
- Degree of protection (IP): IP40
- Impact strength: IK07
- Usable cross section: 246 mm²
- REACH Date: 2025-07-18
- REACH Information obligation: No
