Hager

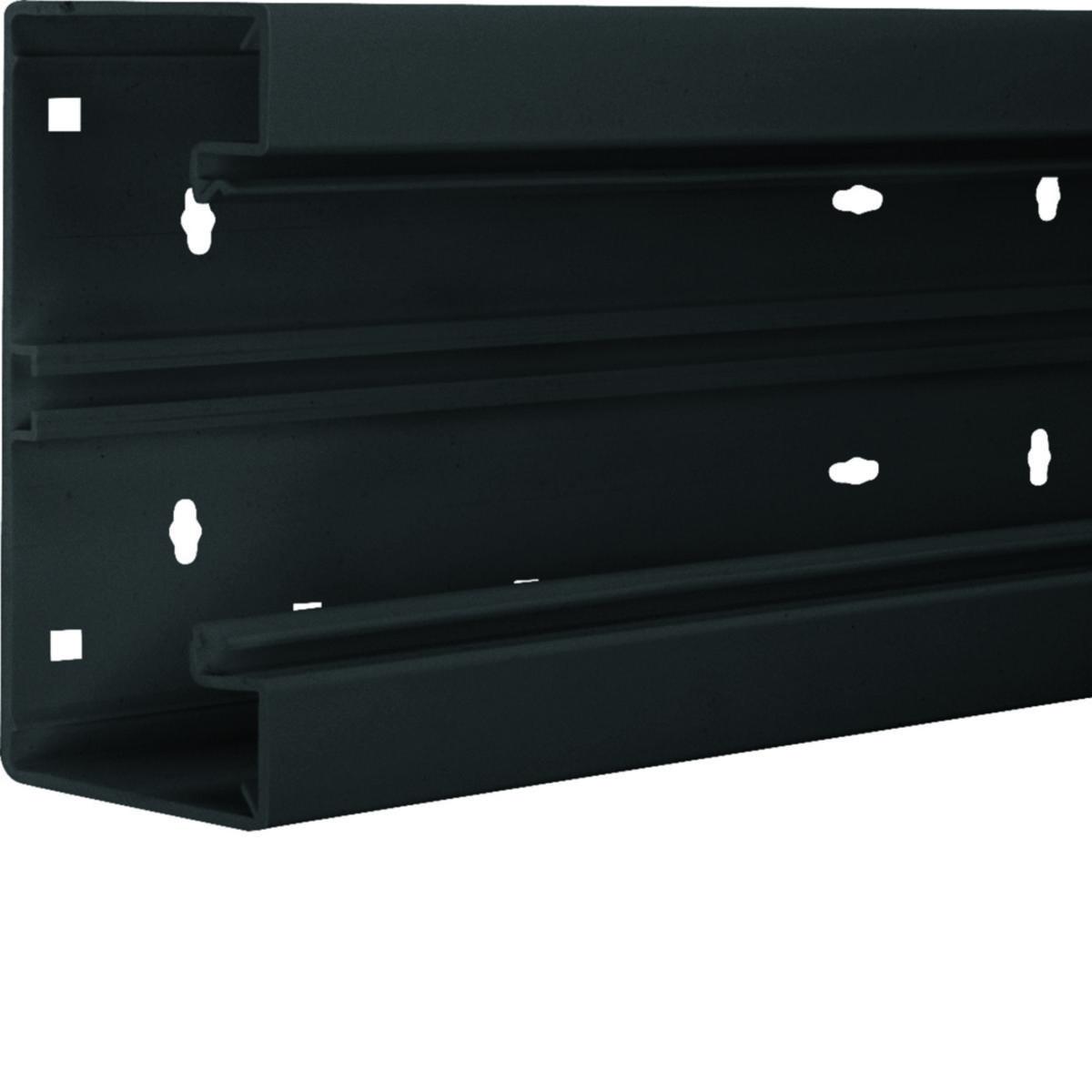

Basic profile BR65130 PVC
TRUNKING BASE BR 68X130 GRAFIT BR6513019011
Article number: Suppl. article no:
1157125
BR6513019011
to see price and stock
Basic profile for window sill channel BR65
- Article number: 1157125
- Suppl. article no: BR6513019011
- Material class QD260B
Technical data
- Packagin Size: 1 ST/4 ST/144 ST
- Width: 130 mm
- Depth: 68 mm
- Length: 2000 mm
- Colour: Black
- RAL-number: 9011
- Number of covers: 1
- Covers included: No
- Cover width 1: 80 mm
- Cover width 2: 0 mm
- Cover width 3: 0 mm
- Material: Plastic
- Material quality: Polyvinyl chloride (PVC)
- Bottom perforation: Yes
- Halogen free: No
- Symmetric: Yes
- Construction type rectangular: Yes
- Surface protection: Untreated
- Construction rear wall (inner side): Continuous C-profile
- With protective foil: Yes
- Number of plug-in partitions: 1
- With duct connector: Yes
- Mounting method cover: Inner lying
- With cable fixing clip: No
- Usable cross section: 7580 mm²
- Product series: BRP
- REACH Date: 2024-06-27
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
