Defem

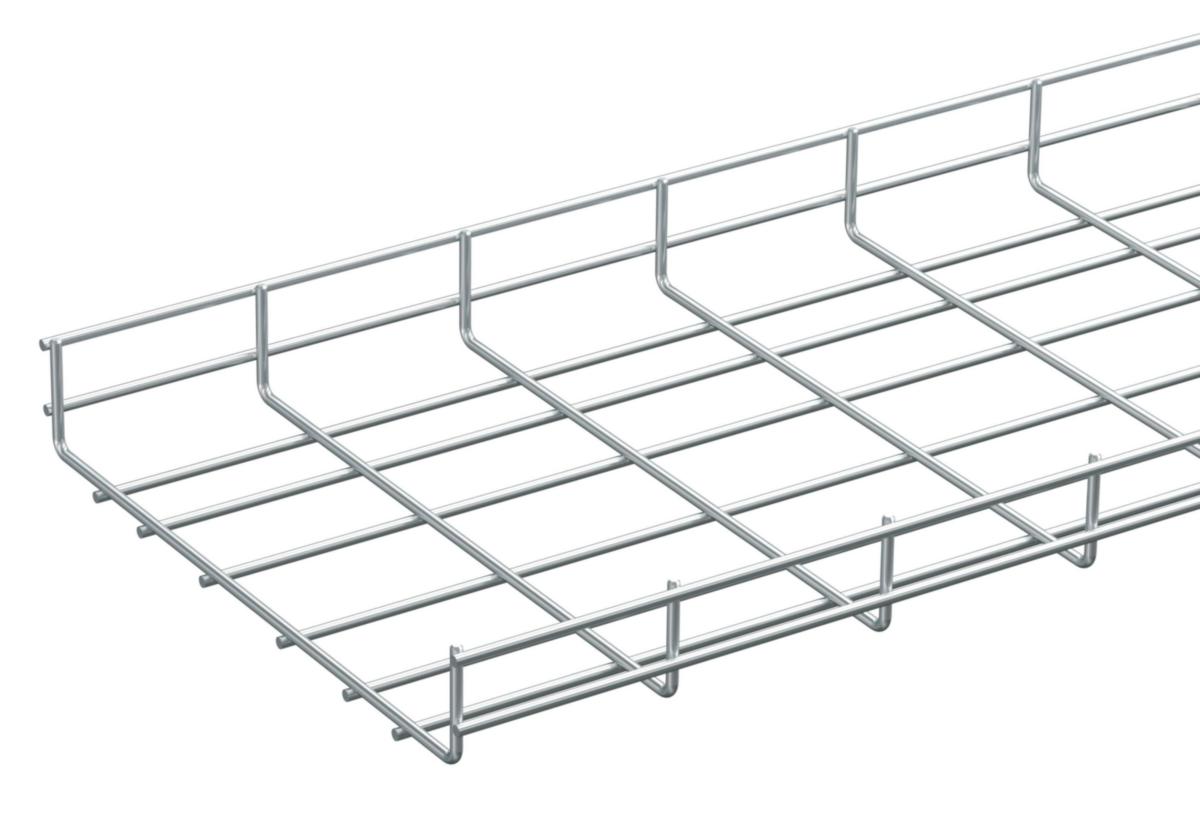

Wire trunking Hot-dip galvanised, Wibe/Defem
M TRAY 320/60-Ø5 L=2.5M HDG
Article number: Suppl. article no:
1149203
1149203
to see price and stock
The wire trunking system is strong and flexible, it is quick and easy to mount. Wire trunking comes in eight different widths 53, 75, 120, 220, 320, 422, 522 and 622 mm.
- Article number: 1149203
- Suppl. article no: 1149203
- Ean no: 7332227012034
- Material class QC3200
Technical data
- Packagin Size: 1 ST/74 ST
- Profile shape: U-shape
- Width: 320 mm
- Height: 60 mm
- Length: 2500 mm
- Wire diameter: 5 mm
- Material: Steel
- Corrosiveness class: C4
- Material quality: Other
- Surface protection: Hot-dip galvanised
- Stainless steel, pickled: No
- Model: Without connector
- Colour: Other
- Usable cross section: 35720000 mm²
- Suitable for circuit integrity: No
- Integrated partition: None
- REACH Date: 2021-03-08
- GWP-tot (A1-A3): 15,3450 kgCO2e/ST
- REACH Information obligation: No
- Wide span model: No
- Screwless connector: No
