Defem

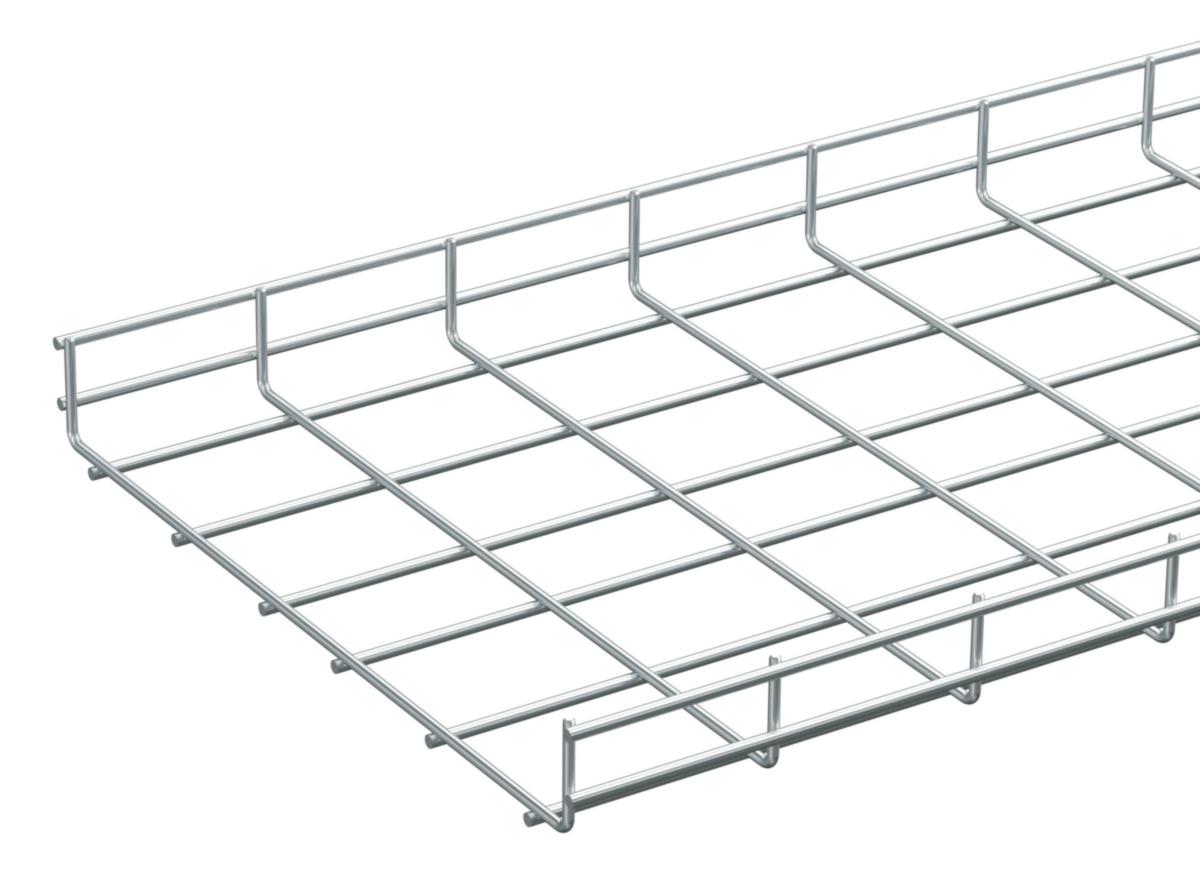

Wire trunking Zinc-plated, Wibe/Defem
M TRAY 422/60 2.5M E-GALV
Article number: Suppl. article no:
1149114
1149114
to see price and stock
The wire trunking system is strong and flexible, it is quick and easy to mount. Wire trunking comes in eight different widths 53, 75, 120, 220, 320, 422, 522 and 622 mm.
- Article number: 1149114
- Suppl. article no: 1149114
- Ean no: 7332227011143
- Material class QC3200
Technical data
- Packagin Size: 1 ST/48 ST
- Profile shape: U-shape
- Width: 422 mm
- Height: 60 mm
- Length: 2500 mm
- Wire diameter: 6 mm
- Material: Steel
- Corrosiveness class: C1
- Material quality: Other
- Surface protection: Galvanic/electrolytic zinc plated
- Stainless steel, pickled: No
- Model: Without connector
- Colour: Other
- Usable cross section: 48480000 mm²
- Suitable for circuit integrity: No
- Integrated partition: None
- REACH Date: 2021-03-08
- GWP-tot (A1-A3): 11,476 kgCO2e/ST
- REACH Information obligation: No
- Wide span model: No
- Screwless connector: No
