OBO Bettermann
Wire trunking GR-Magic 55

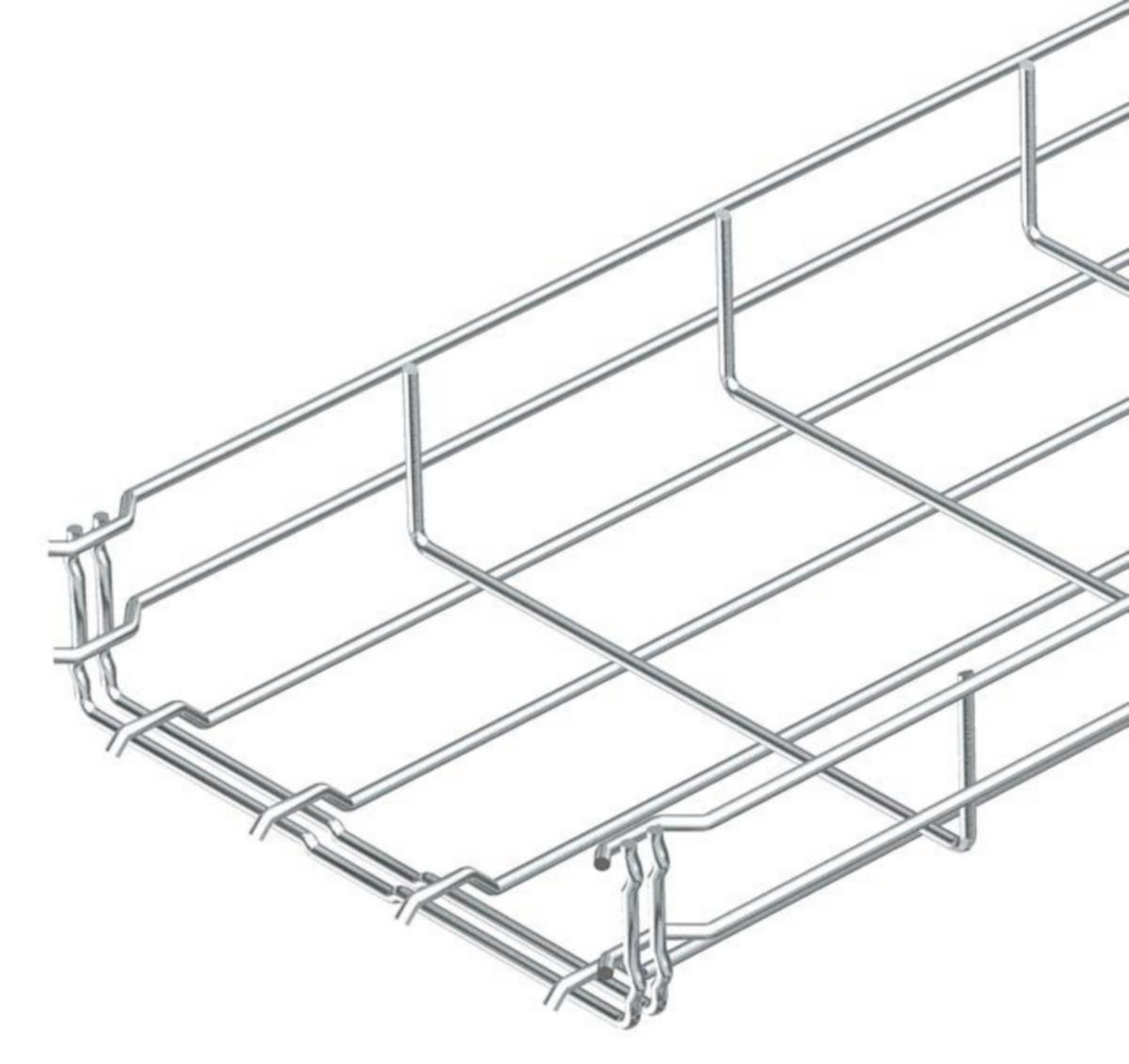

MESH CABLE TRAY GRM 55/50 L=3M
Article number: Suppl. article no:
1131997
6001441
to see price and stock
GRM has a patented design which means that the trays can be cut without tools and accessories. This joining means that the tray withstands high loads. GRM meets requirements for potential equalisation.
GRM cable trays are made in widths from 100-600 with cable diameter in accordance with technical specification. Material is zinc-plated, but is also available in hot-dip galvanised and stainless. The length of trays is 3 metres. The trays are available in 2 heights.
GRM cable trays are made in widths from 100-600 with cable diameter in accordance with technical specification. Material is zinc-plated, but is also available in hot-dip galvanised and stainless. The length of trays is 3 metres. The trays are available in 2 heights.
- Article number: 1131997
- Suppl. article no: 6001441
- Ean no: 4012195430957
- Material class QC570A
Technical data
- Packagin Size: 1 ST/42 ST/252 ST
- Type: 6001441
- Profile shape: U-shape
- Width: 50 mm
- Height: 55 mm
- Length: 3000 mm
- Wire diameter: 3.9 mm
- Material: Steel
- Material quality: Other
- Surface protection: Galvanic/electrolytic zinc plated
- Stainless steel, pickled: No
- Model: Integrated connector
- Usable cross section: 1600 mm²
- Suitable for circuit integrity: No
- Integrated partition: None
- REACH Date: 2021-08-13
- Wide span model: No
- Screwless connector: Yes
- REACH Information obligation: No
