Defem

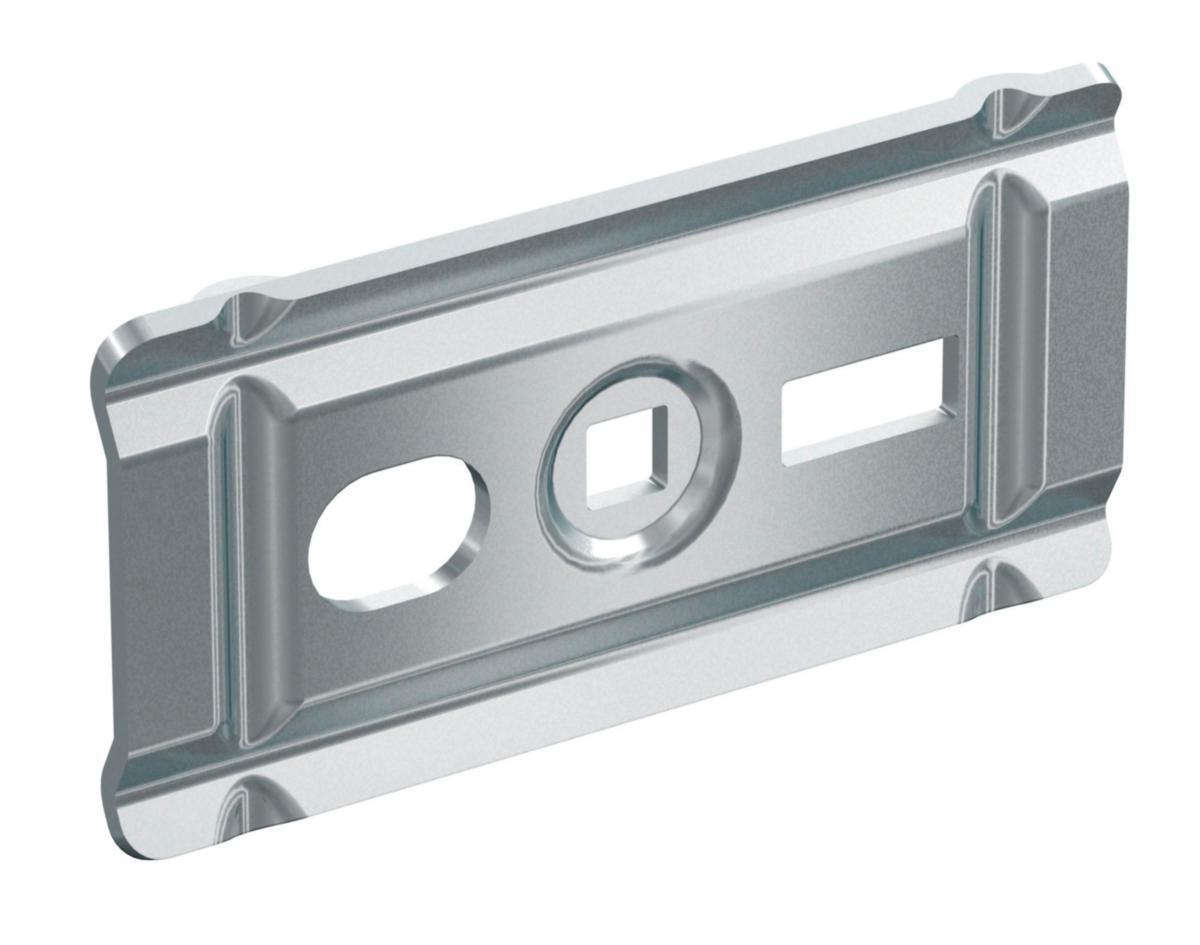

Fitting B1
FITTING B1 E-GALV
Article number: Suppl. article no:
1149154
1149154
to see price and stock
B1 (together with B2) used to join the same ladders. B1 has two extra holes, diameter 10 mm and 6.5 mm which can be used for earthing. The fitting can also be used to attach the ladder to walls, ceilings and floors. Or to attach luminaires, etc. directly on the tray. Supplied excluding screws and nuts (M6).
- Article number: 1149154
- Suppl. article no: 1149154
- Ean no: 7332227011549
- Material class QC3501
Technical data
- Packagin Size: 1 ST/50 ST/200 ST/4000 ST
- Type: Fitting B1, FZB
- Model: Longitudinal joint
- Corrosiveness class: C1
- Surface protection: Galvanic/electrolytic zinc plated
- Material quality: Other
- Material: Steel
- Type of connection: Other
- Stainless steel, pickled: No
- RAL-number: 0
- Suitable for wire mesh tray filament: 45-110 mm
- Suitable for cable support system width: 53-622 mm
- Suitable for cable tray: No
- Suitable for wire mesh tray: Yes
- Suitable for cable ladder: No
- Suitable for circuit integrity: No
- Length: 80 mm
- Hinged joint horizontal: No
- Hinged joint vertical: No
- REACH Date: 2021-03-08
- Suitable for cable management system height: 0 mm
- GWP-tot (A1-A3): 0,0725 kgCO2e/ST
- Design: Electro zinc-plated
- Dimension other: 80x42x5
- REACH Information obligation: No
