Supporting bracket wall, Internal Wall bracket

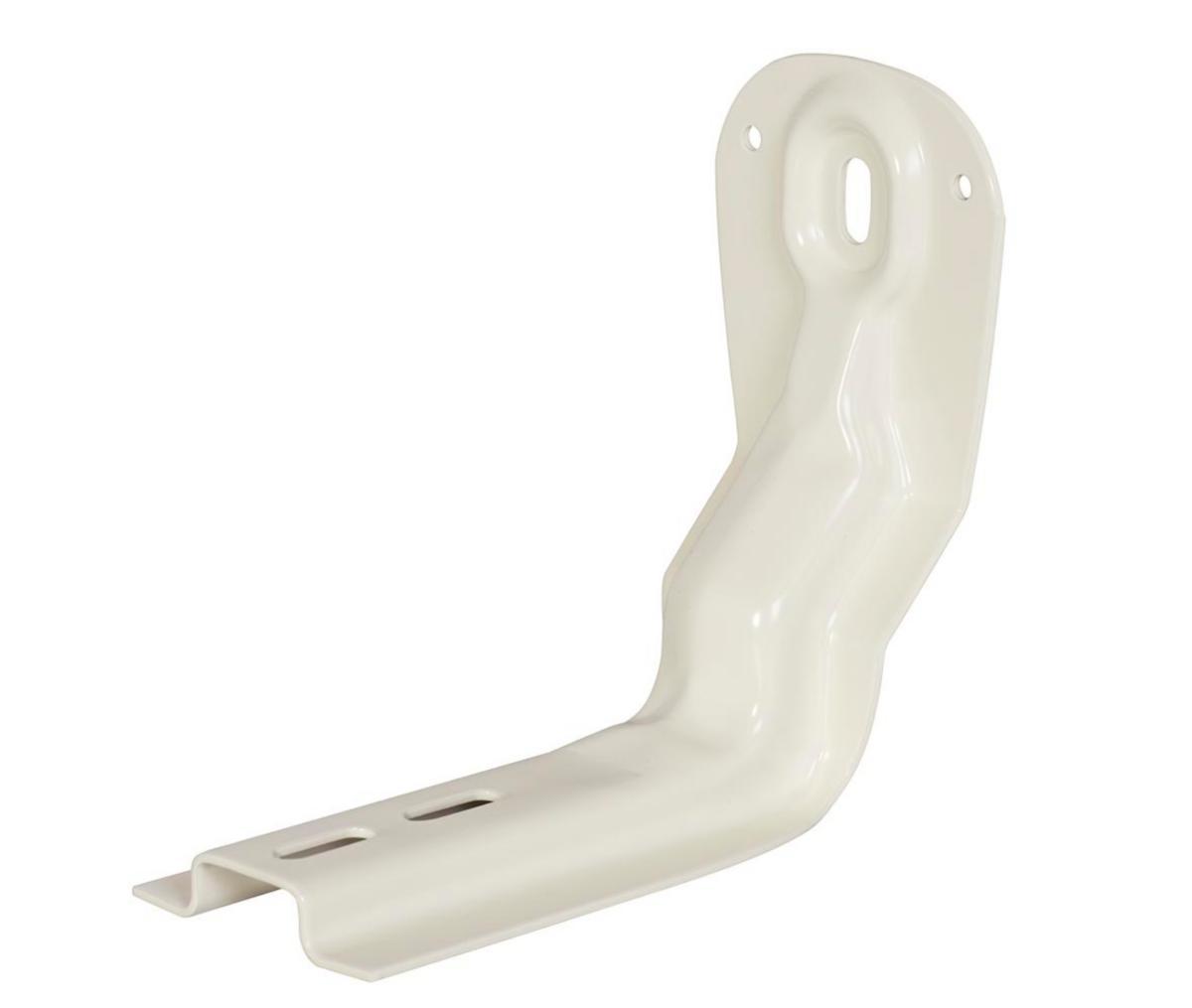

INTERNAL CANTILEVER ARM MP-943 V
Article number: Suppl. article no:
1117210
943V
to see price and stock
Internal supporting bracket is suitable for cable ladders (MP-S) and cable trays. Mounted in splice or support yoke with bolt MP-941 E
- Article number: 1117210
- Suppl. article no: 943V
- Ean no: 7394333112985
- Material class QC180A
Technical data
- Packagin Size: 1 ST/5 ST/40 ST/120 ST
- Type: MP-943V
- Length: 194 mm
- Width: 94 mm
- Height: 180 mm
- Suitable for cable support system width: 200-600 mm
- Colour: White
- RAL-number: 9010
- Model: Wall bracket
- Load bearing capacity: 600 kN
- Suitable for circuit integrity: No
- Material: Steel
- Surface protection: Continuously galvanised and coated
- Corrosiveness class: C1
- REACH Date: 2021-06-17
- GWP-tot (A1-A3): 1,5163 kgCO2e/ST
- REACH Information obligation: No
