Wibe
Fitting rail W70
LIGHT.TRUNKING W70-100 3M FZSW
Article number: Suppl. article no:
1126134
CSU794185
to see price and stock

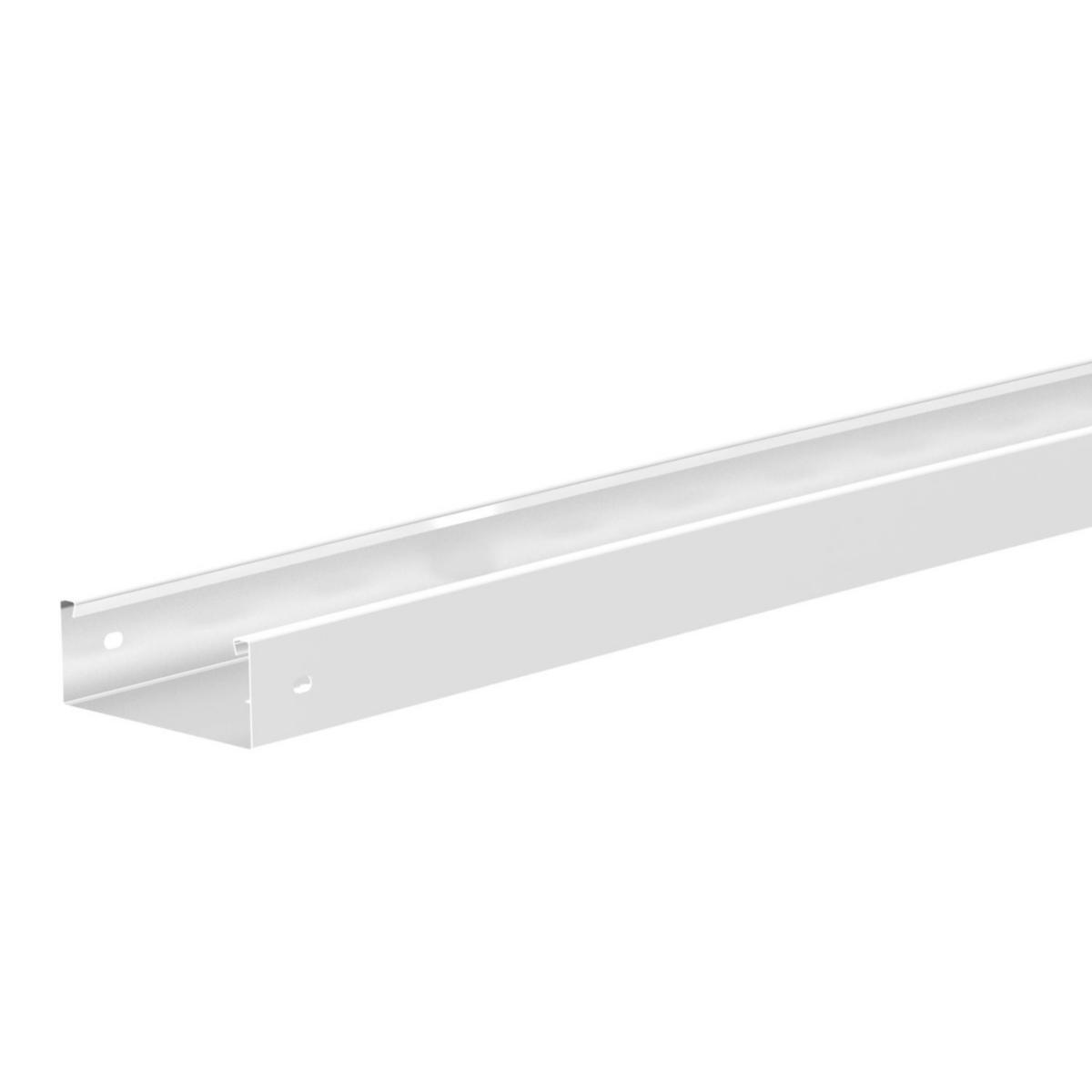

Luminaire rail with perforated bottom. The oval hole image at the bottom of the rail can be used for mounting lighting fixtures. Every 500 mm there is a larger hole that is turned 45 ° for easy penetration of wiring with quick connect connectors. The oval holes at both ends of the luminaire rail are used for Bärok / joint W7 / 40.
- Article number: 1126134
- Suppl. article no: CSU794185
- Ean no: 3606480410352
- Material class QC380A
Technical data
- Packagin Size: 1 ST/8 ST/96 ST
- Type: CSU794185
- Height: 40 mm
- Width: 100 mm
- Material quality: Other
- Length: 3000 mm
- Colour: White
- RAL-number: 9010
- Surface protection: Continuously galvanised and coated
- Corrosiveness class: C2
- With cover: No
- Bottom perforation: Yes
- Side perforation: No
- Model: Without connector
- Material: Steel
- Stainless steel, pickled: No
- Usable cross section: 10047000 mm²
- REACH Date: 2020-06-25
- GWP-tot (A1-A3): 9,1732 kgCO2e/ST
- Product series: Wibe
- REACH Information obligation: No
