Wibe
Cable duct W1/40 unperforated. Wibe
CABLE TRAY W1-100 FZS
Article number: Suppl. article no:
1125006
713252
to see price and stock

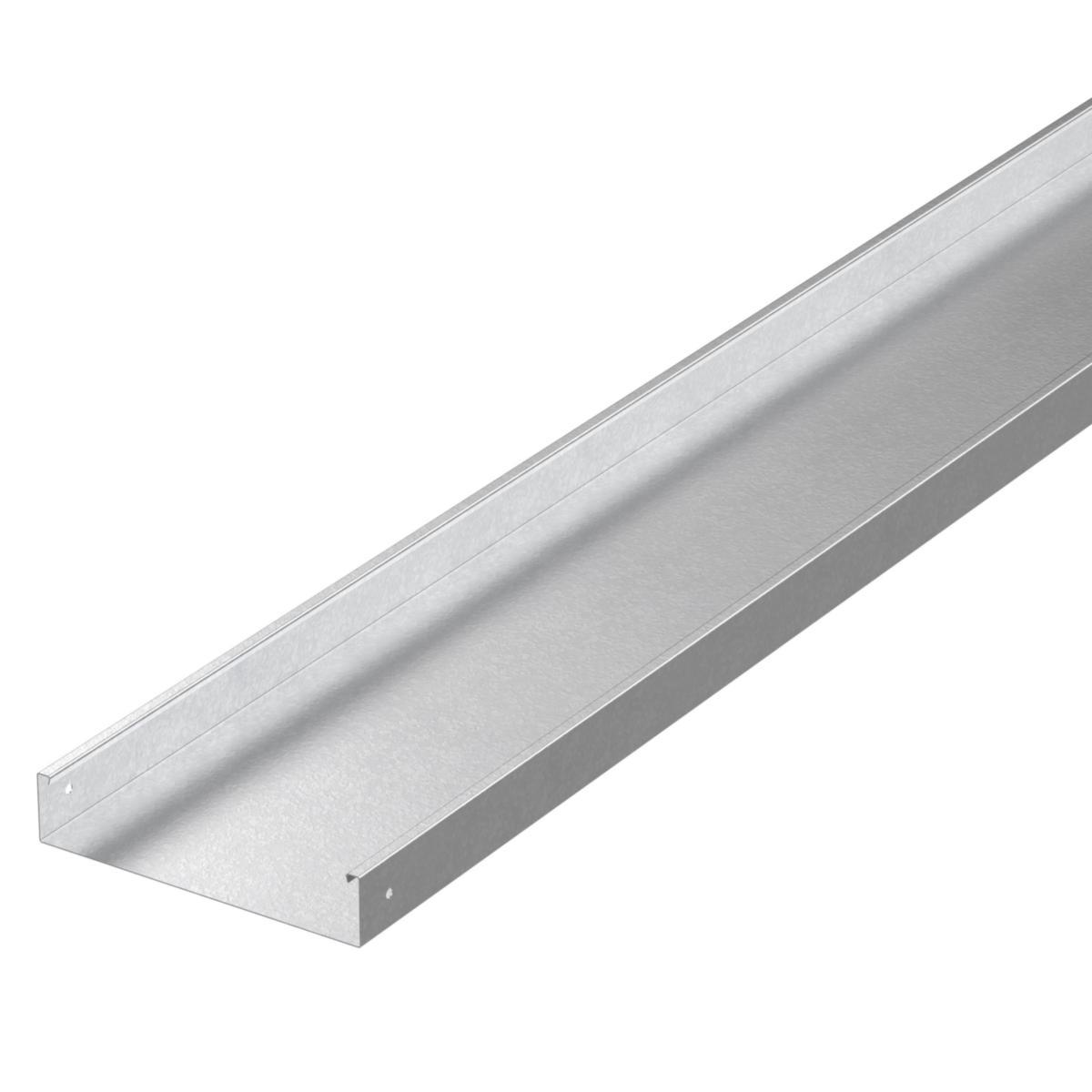

Unperforated cable tray designed for indoor use in dry locations. Edge height 40mm. Equipped with Ø5.8mm holes at each end of the sides, used for locking joints
- Article number: 1125006
- Suppl. article no: 713252
- Ean no: 7321677132522
- Material class QC380A
Technical data
- Packagin Size: 1 ST/112 ST
- Type: 713252
- Corrosiveness class: C2
- Model: Without connector
- Bottom perforation: No
- Width: 100 mm
- Height: 40 mm
- Length: 2000 mm
- Surface protection: Continuously galvanised
- Material: Steel
- Material quality: Other
- With cover: No
- Material thickness: 0.7 mm
- Stainless steel, pickled: No
- Side perforation: No
- Suitable for circuit integrity: No
- NATO-mounting holes: No
- Product series: Wibe
- Usable cross section: 4000 mm²
- REACH Date: 2020-06-25
- GWP-tot (A1-A3): 6,8160 kgCO2e/ST
- REACH Information obligation: No
- Wide span model: No
