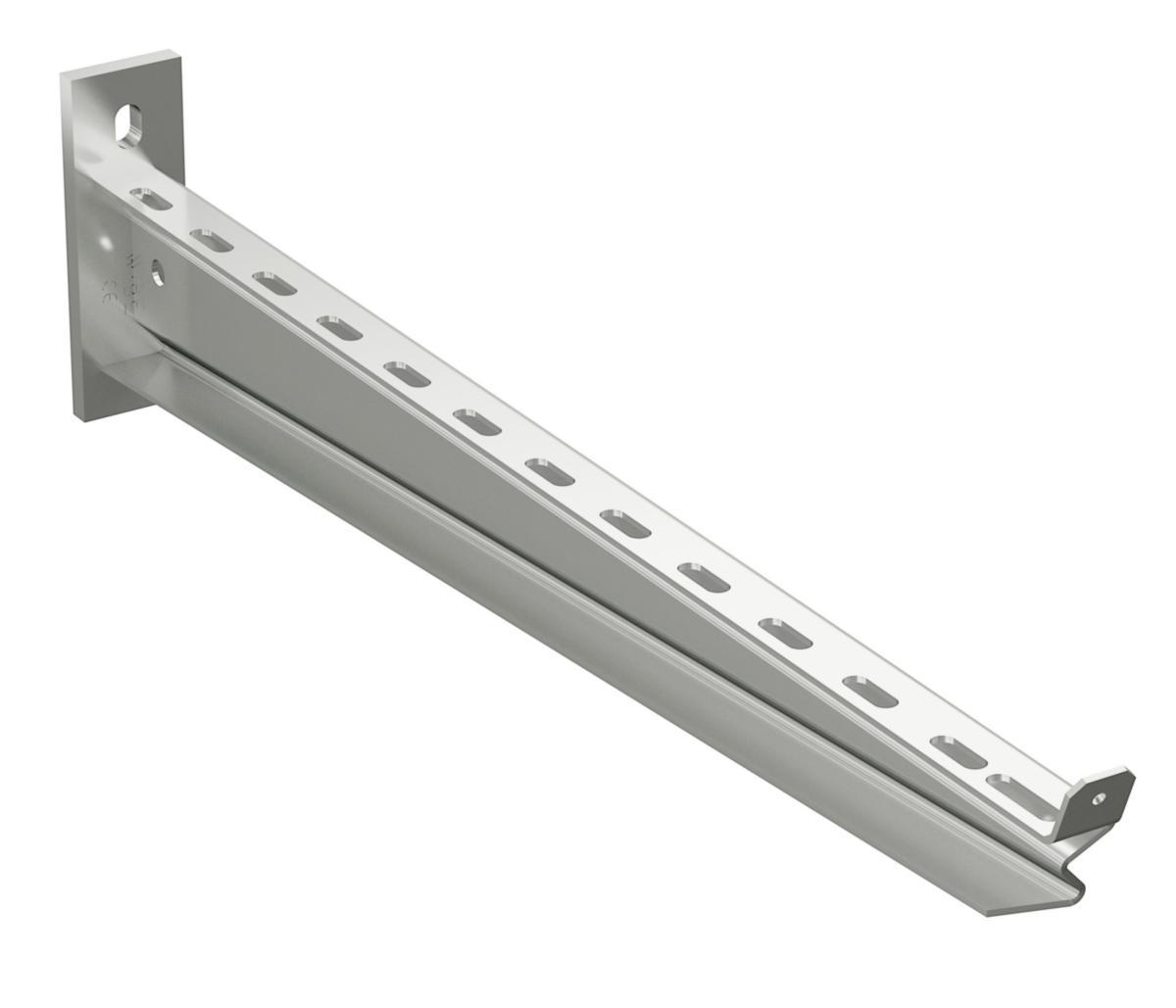

Wall bracket 50 Hot-dip galvanised Fzv, Wibe, Schneider-Electric
STATIONARY SET
Article number: Suppl. article no:
1120740
727125
to see price and stock
For mounting on wall with expansion screw or on mounting, pendulum / anchor rail or roof shuttle with T-screw.
When mounting on porous walls or where the surface pressure has to be lowered, mount plate 40 is mounted
When mounting on porous walls or where the surface pressure has to be lowered, mount plate 40 is mounted
- Article number: 1120740
- Suppl. article no: 727125
- Ean no: 7321677271252
- Material class QC290A
Technical data
- Packagin Size: 1 ST/45 ST
- Type: BRACKET 50-700
- Product series: Wibe
- Corrosiveness class: C4
- Model: Wall- and profile console
- Suitable for cable support system width: 100-700 mm
- Material: Steel
- Material quality: Other
- Width: 750 mm
- Length: 750 mm
- Height: 150 mm
- RAL-number: 0
- Suitable for circuit integrity: No
- Angle: 90 °
- Load bearing capacity: 6 kN
- GWP-tot (A1-A3): 7,533 kgCO2e/ST
- REACH Date: 2021-03-08
- Article number supplier: 727125
- REACH Information obligation: No
