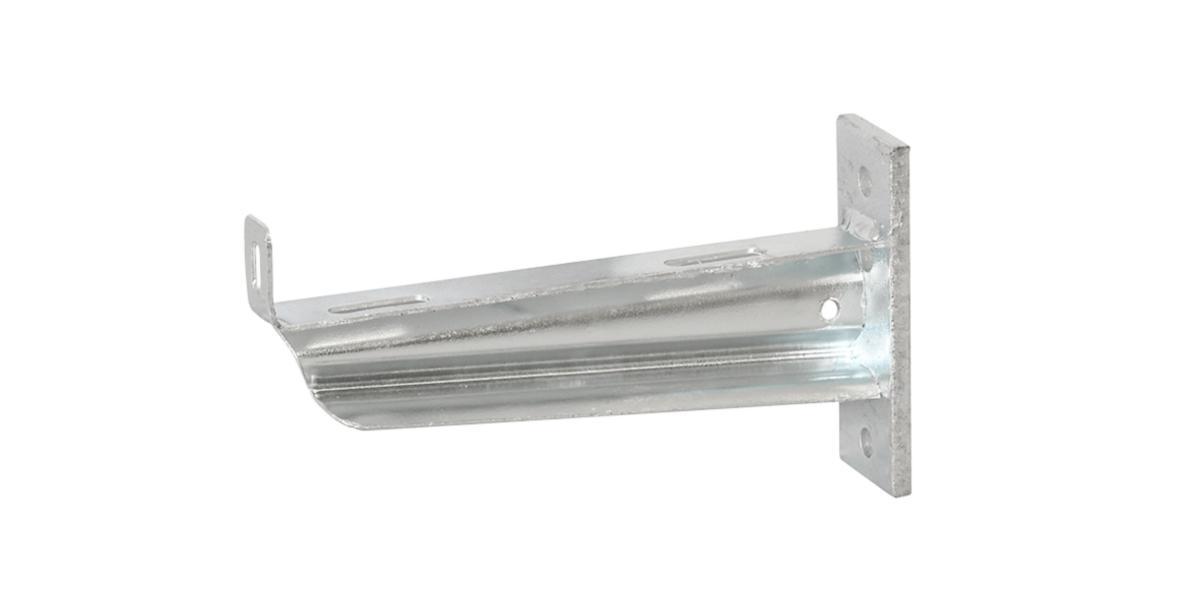

Wall bracket type KF
CANTILEVER ARM REINFORCED 182 MP-182 Z2 200MM VF
Article number: Suppl. article no:
1115191
182Z2
to see price and stock
Wall bracket of hot-dip galvanised sheet metal, for extremely heavy loads. Primarily intended for ladder type MP-FZ and long bracket distances. All cable ladders can be installed on this bracket. Can also be attached to drop rod/anchor rail.
- Article number: 1115191
- Suppl. article no: 182Z2
- Ean no: 7394333099415
- Material class QC0600
Technical data
- Packagin Size: 1 ST/12 ST/50 ST
- Type: MP-182Z2
- Corrosiveness class: C4
- Model: Wall bracket
- Suitable for cable support system width: 200 mm
- Material: Steel
- Surface protection: Hot-dip galvanised
- Width: 50 mm
- Length: 250 mm
- Height: 140 mm
- Suitable for circuit integrity: No
- Angle: 90 °
- Load bearing capacity: 4.5 kN
- Working temperature: -40-80 °C
- Safe working load according to IEC 61537: 4500 N
- REACH Date: 2024-08-14
- GWP-tot (A1-A3): 1,6980 kgCO2e/ST
- REACH Information obligation: No
