Wibe

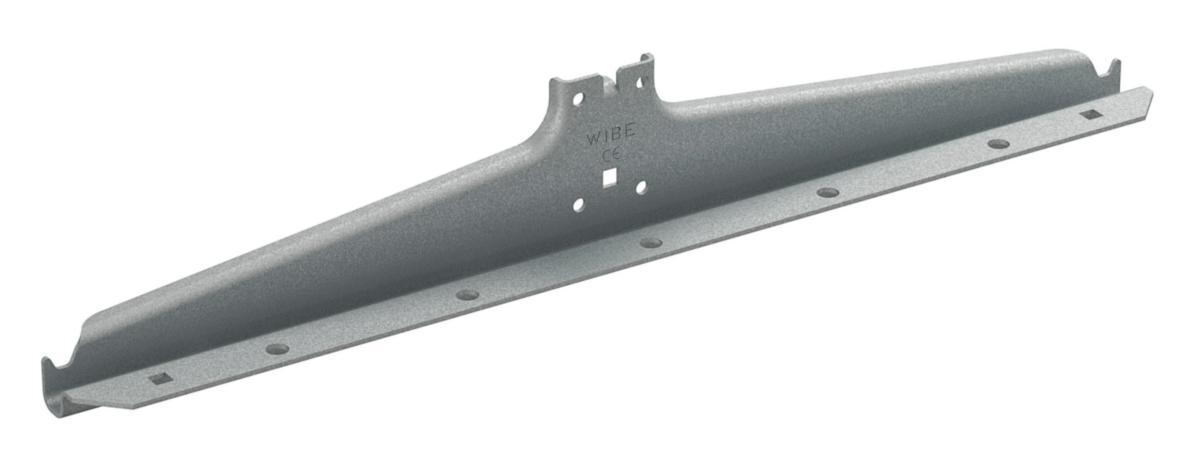

Support yoke 3
SUPPORT BRACKET 3/400 PREG
Article number: Suppl. article no:
1121057
721871
to see price and stock
Support yoke 3 is used for centre mounting of cable ladders on ceiling pendants and anchor rails. Set of screws 22S are ordered separately.
- Article number: 1121057
- Suppl. article no: 721871
- Ean no: 7321677218714
- Material class QC2900
Technical data
- Packagin Size: 1 PCS/160 PCS
- Type: 3-400 FZS
- Product series: Wibe
- Corrosiveness class: C2
- Suitable for cable support system width: 400 mm
- Material: Steel
- Material quality: Other
- Surface protection: Continuously galvanised
- Width: 400 mm
- Length: 57 mm
- Height: 92 mm
- Suitable for circuit integrity: No
- Load bearing capacity: 12000 N
- Working temperature: -40-120 °C
- REACH Date: 2025-04-17
- GWP-tot (A1-A3): 1,988 kgCO2e/ST
- Suitable for cable support system height: 55 mm
- Suitable for cable ladder: Yes
- Suitable for cable tray: No
- REACH Information obligation: No
- Stainless steel, pickled: No
- Suitable for wire mesh tray: No
- Tray mounting: Screwable
