Wibe

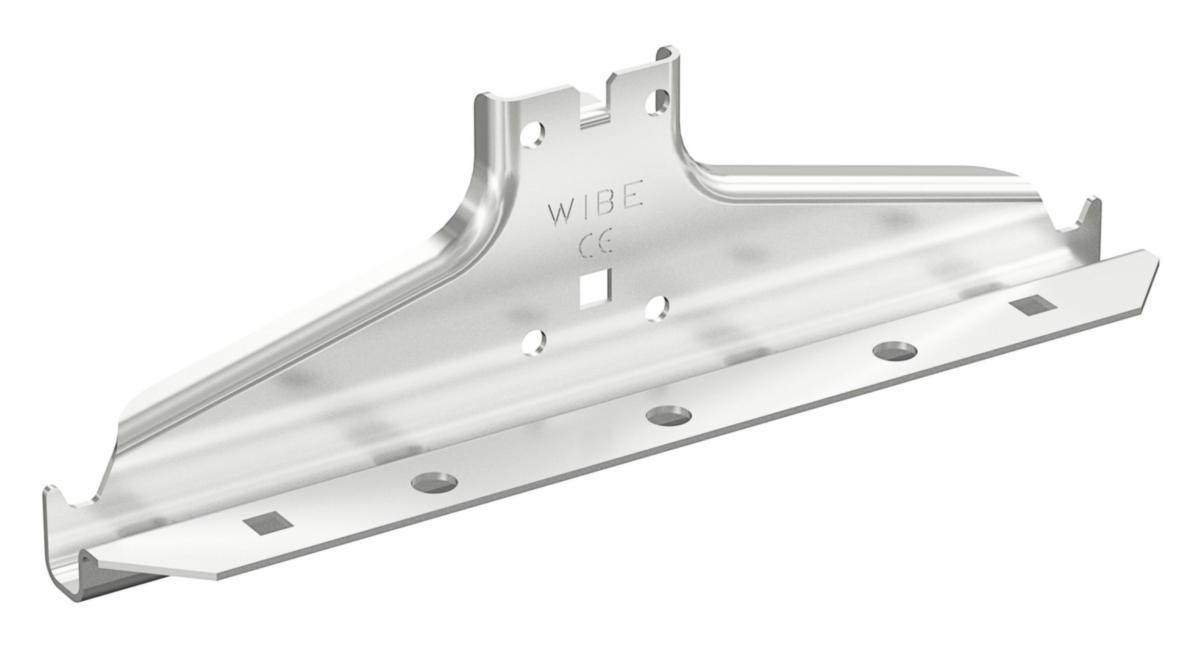

Support yoke 3
SUPPORT BRACKET 3/200 HDG
Article number: Suppl. article no:
1121049
720762
to see price and stock
Support yoke 3 is used for centre mounting of cable ladders on ceiling pendants and anchor rails. Set of screws 22S are ordered separately.
- Article number: 1121049
- Suppl. article no: 720762
- Ean no: 7321677207626
- Material class QC290A
Technical data
- Packagin Size: 1 PCS/320 PCS
- Type: 3-200 FZV
- Product series: Wibe
- Corrosiveness class: C4
- Suitable for cable support system width: 200 mm
- Material: Steel
- Material quality: Other
- Surface protection: Hot-dip galvanised
- Width: 200 mm
- Length: 57 mm
- Height: 92 mm
- Suitable for circuit integrity: No
- Load bearing capacity: 16000 N
- Working temperature: -40-120 °C
- REACH Date: 2025-04-17
- GWP-tot (A1-A3): 0,9207 kgCO2e/ST
- Suitable for cable support system height: 55 mm
- Suitable for cable ladder: Yes
- Suitable for cable tray: No
- REACH Information obligation: No
- Stainless steel, pickled: No
- Suitable for wire mesh tray: No
- Tray mounting: Screwable
