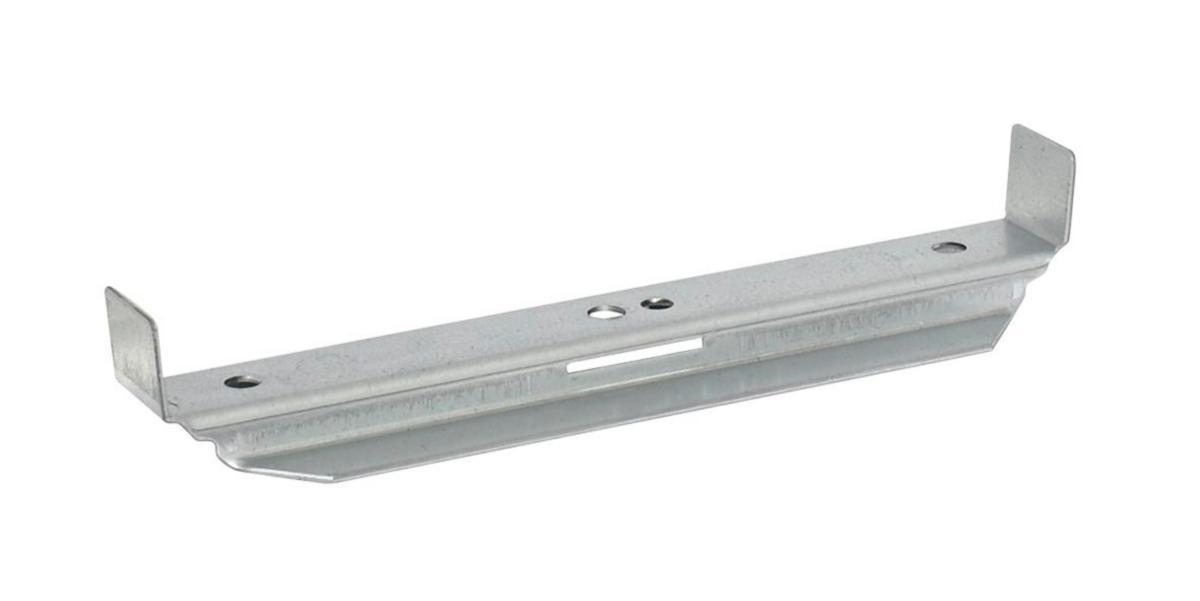

Support yoke internal type BI
INTERNAL LADDER SUPPORT YOKE MP-158 S B=300
Article number: Suppl. article no:
1115298
158S
to see price and stock
The yoke provides a smooth underside for the ladder and minimal overall height. Can be installed both as a wall bracket and a centre drop rod. The yoke is twisted into the ladder from the underside, and fixed into place with a lock for the yoke at each end.
- Article number: 1115298
- Suppl. article no: 158S
- Ean no: 7394333003641
- Material class QC0600
Technical data
- Packagin Size: 1 ST/10 ST/50 ST/200 ST
- Type: MP-158S
- Suitable for cable support system width: 300 mm
- Corrosiveness class: C2
- Surface protection: Continuously galvanised
- Material: Steel
- Tray mounting: Screwable
- Suitable for circuit integrity: No
- Suitable for cable tray: No
- Suitable for wire mesh tray: No
- Suitable for cable ladder: Yes
- Model: Slide-in bracket
- Load bearing capacity: 1500 N
- REACH Date: 2021-06-17
- Suitable for cable management system height: 56 mm
- GWP-tot (A1-A3): 104,91 kgCO2e/ST
- REACH Information obligation: No
