Angle bracket for MP-FZ

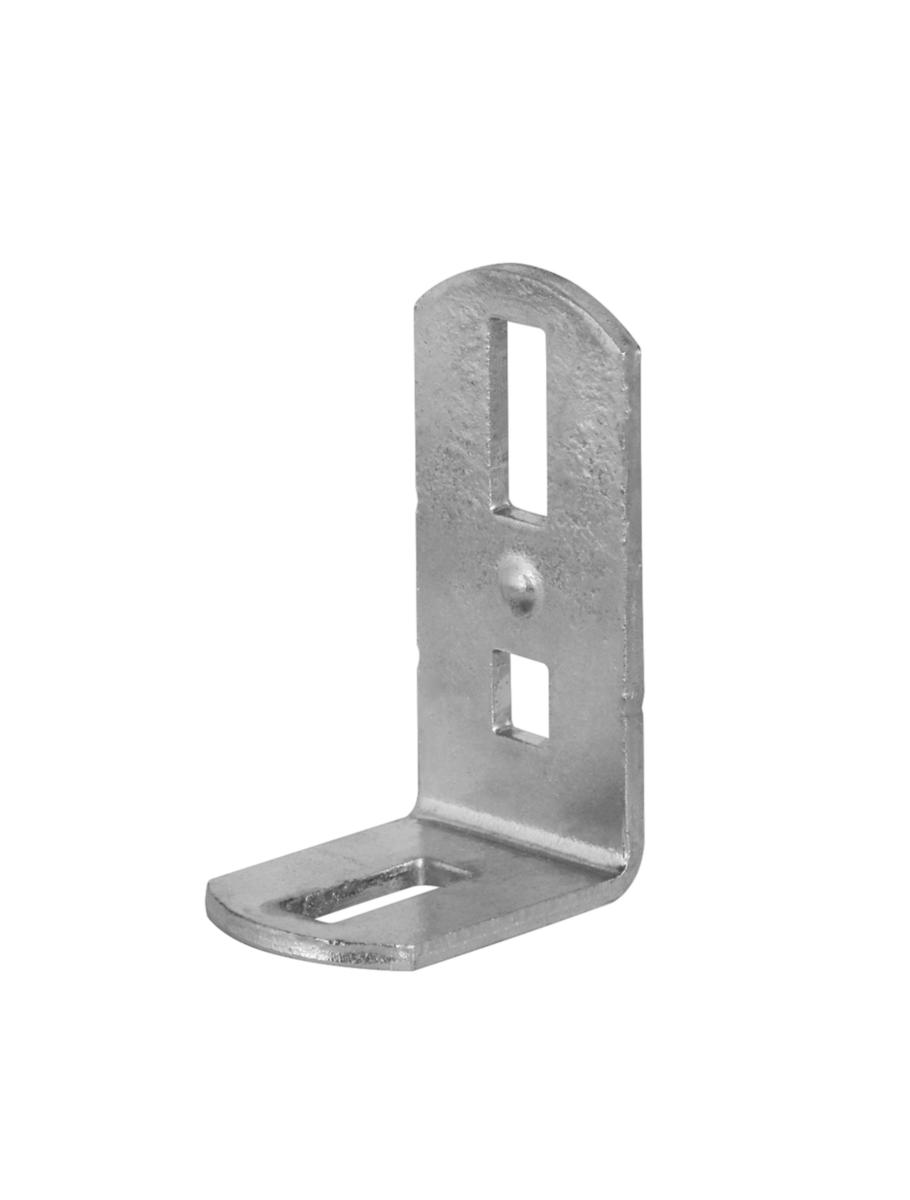

ANGLE BRACKET FZ LADDERS, MP-903Z
Article number: Suppl. article no:
1115390
903Z
to see price and stock

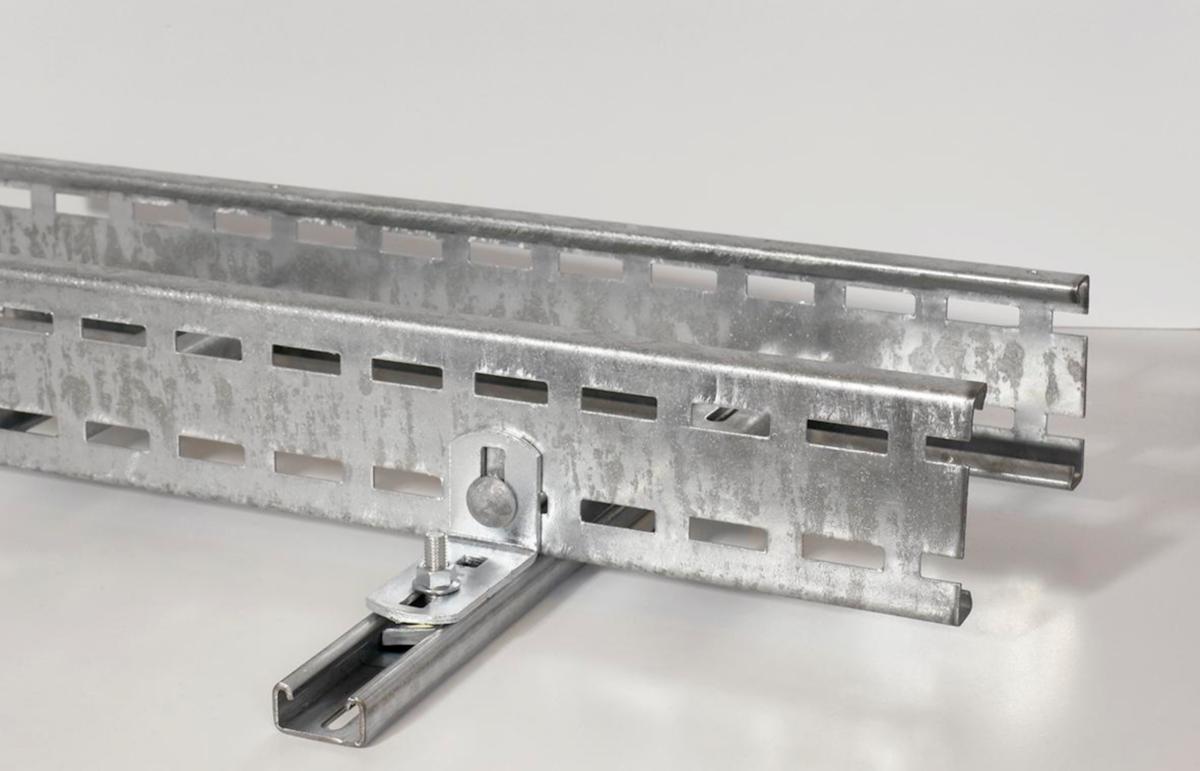

Adapted bracket for FZ ladder with hole spacing for carriage bolt and nut M10 (MP-947Z). Somewhat wider and therefore better suited for mounting of anchor rails for example.
- Article number: 1115390
- Suppl. article no: 903Z
- Ean no: 7394333015156
- Material class QC0600
Technical data
- Packagin Size: 1 ST/10 ST/150 ST/1000 ST
- Type: MP-903Z
- Length leg 1: 90 mm
- Length leg 2: 55 mm
- Width: 42 mm
- Thickness: 4 mm
- Material: Steel
- Width slotted hole: 11 mm
- Surface protection: Hot-dip galvanised
- Colour: Zinc
- Corrosiveness class: C4
- Number of holes/slots, leg 1: 2
- Number of holes/slots, leg 2: 1
- Hole diameter: 11-12 mm
- Reinforcement: None
- Length slotted hole: 35 mm
- REACH Date: 2024-08-14
- GWP-tot (A1-A3): 0,4528 kgCO2e/ST
- REACH Information obligation: No
