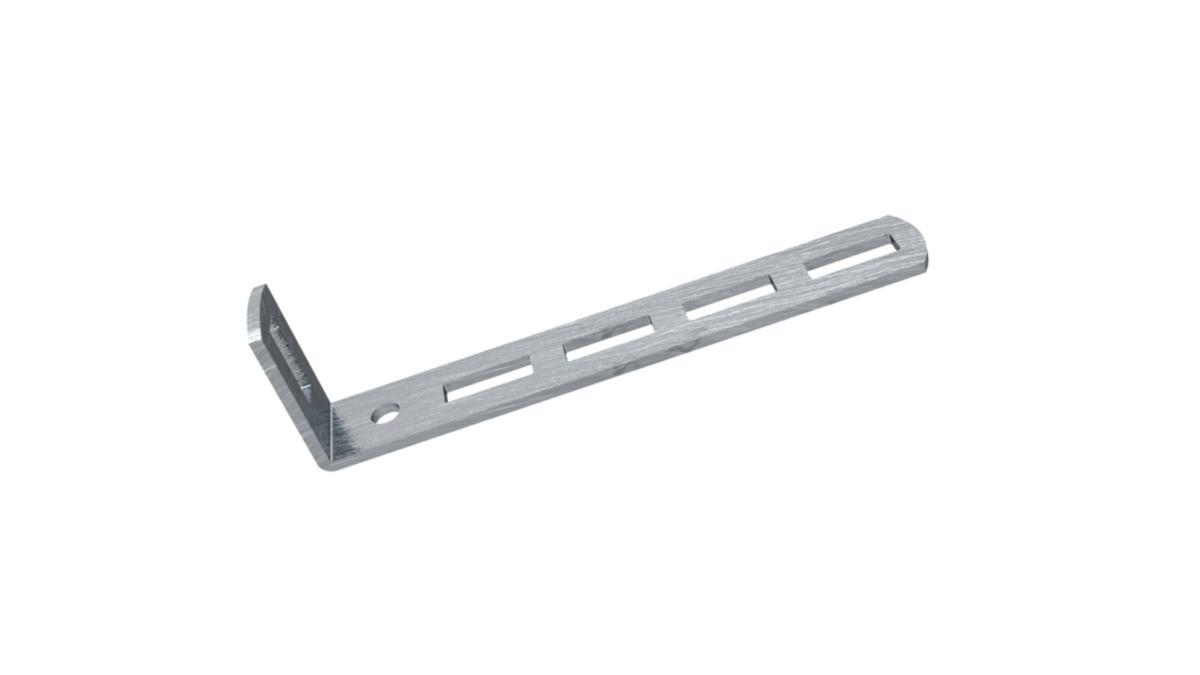

Angle bracket MP-901 for MP-S, TS, Z, PZ and AZ(2)
ANGLE BRACKET, 200 MM 901Z
Article number: Suppl. article no:
1115381
901Z
to see price and stock
The angle bracket can be used for universal applications. E.g. as wall bracket, with dimensions 0-20 mm resp. 45-65 mm. Ceiling bracket, for smaller loads, end bracket and reducing piece.
- Article number: 1115381
- Suppl. article no: 901Z
- Ean no: 7394333021003
- Material class QC0601

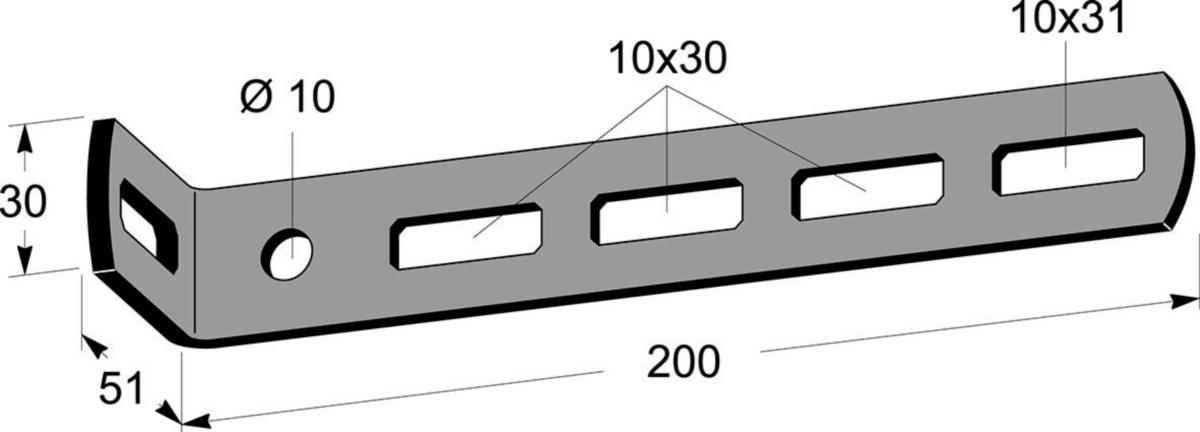

Technical data
- Packagin Size: 1 ST/10 ST/120 ST/3000 ST
- Type: MP-901Z
- Length leg 1: 200 mm
- Length leg 2: 51 mm
- Width: 30 mm
- Thickness: 4 mm
- Material: Steel
- Width slotted hole: 10 mm
- Surface protection: Hot-dip galvanised
- Colour: Zinc
- Corrosiveness class: C4
- Number of holes/slots, leg 1: 5
- Number of holes/slots, leg 2: 1
- Hole diameter: 10 mm
- Reinforcement: None
- Length slotted hole: 29 mm
- REACH Date: 2024-08-14
- GWP-tot (A1-A3): 0,5377 kgCO2e/ST
- REACH Information obligation: No
