Wibe

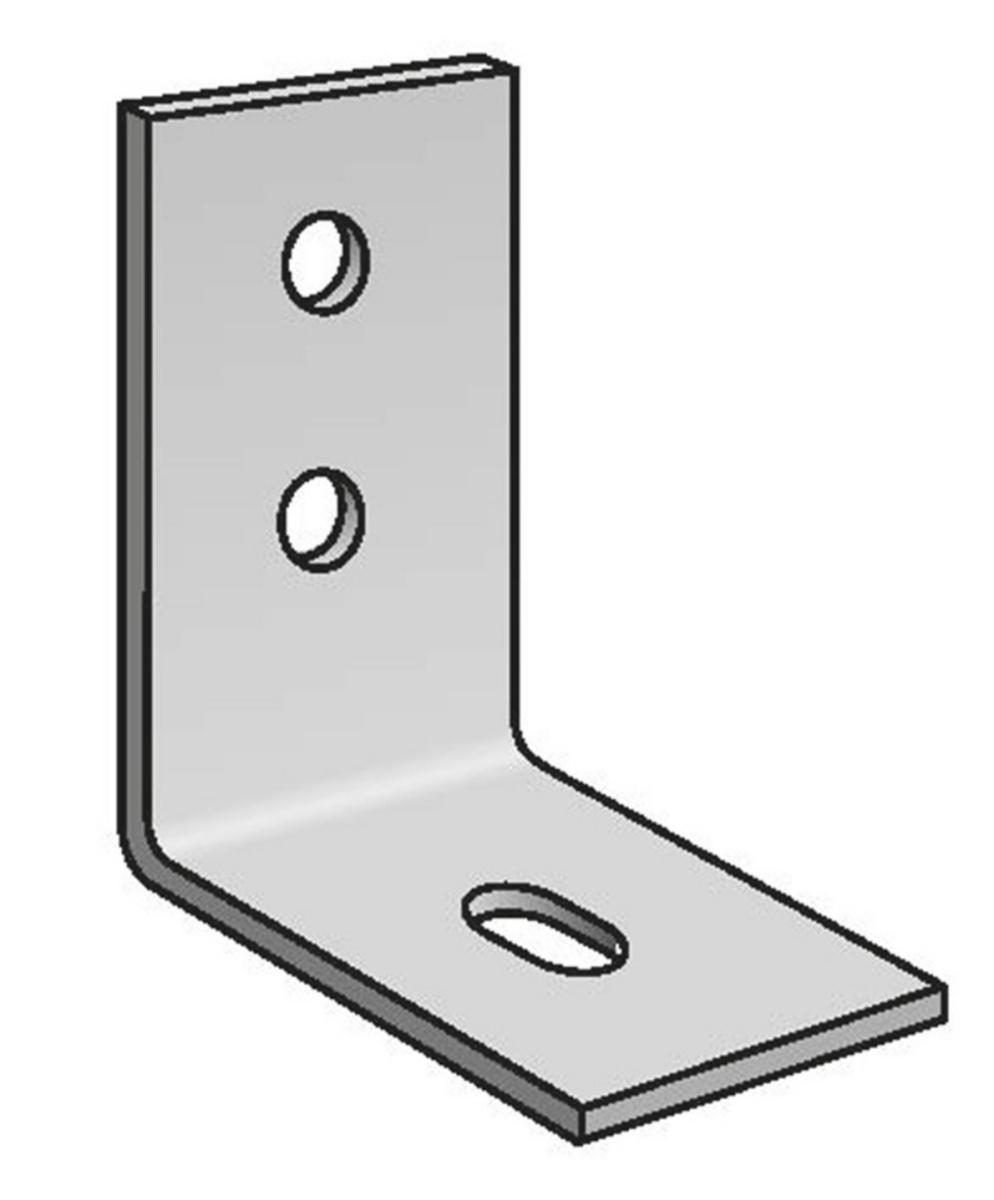

Angle bracket 5LS
ANGLE BRACKET 5LS HDG
Article number: Suppl. article no:
1121644
709801
to see price and stock
For mounting Suspension- / Anchor rails on various types of equipment such as cabinets, electrical switchboards, etc., and for securing a suspension- / anchor rail on a wall or floor; can also be used as a ladder(step attachment point on a wall or floor. Mounted with a T-screw.
- Article number: 1121644
- Suppl. article no: 709801
- Ean no: 7321677098019
- Material class QC290A
Technical data
- Type: 709801
- Length leg 1: 111 mm
- Length leg 2: 71 mm
- Width: 60 mm
- Thickness: 6 mm
- Material: Steel
- Width slotted hole: 11 mm
- Surface protection: Hot-dip galvanised
- Corrosiveness class: C4
- Number of holes/slots, leg 1: 2
- Number of holes/slots, leg 2: 1
- Hole diameter: 11 mm
- Reinforcement: None
- Length slotted hole: 26 mm
- REACH Date: 2024-10-10
- GWP-tot (A1-A3): 1,3950 kgCO2e/ST
- Product series: Wibe
- Material quality: Other
- REACH Information obligation: No
- Model: Other
- Tray mounting: Screwable
