Wibe

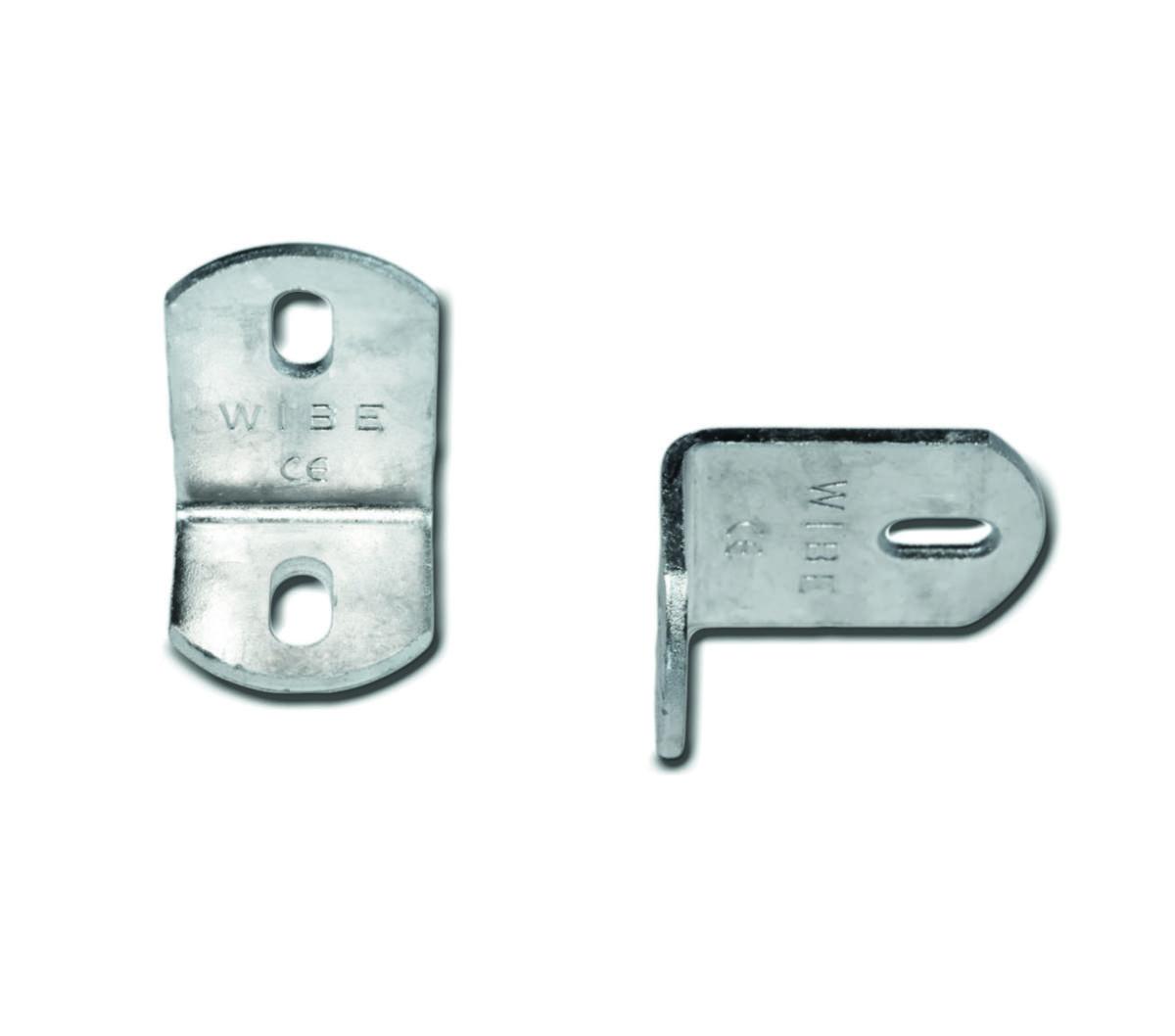

Angle bracket 5L
ANGLE BRACKET 5L HDG
Article number: Suppl. article no:
1121638
731791
to see price and stock
For mounting of pendant rail on wall or floor as well as for various constructions for mounting of control cabinet, distribution boxes, etc. T-screw E 11 21 26 can be ordered separately. Angle bracket 5L can be mounted internally in tray profile and is used as tray attachment for wall or floor.
- Article number: 1121638
- Suppl. article no: 731791
- Ean no: 7321677317912
- Material class QC2901
Technical data
- Packagin Size: 1 ST/10 ST/1200 ST
- Type: 731791
- Length leg 1: 70 mm
- Length leg 2: 45 mm
- Width: 49 mm
- Thickness: 4 mm
- Material: Steel
- Width slotted hole: 11 mm
- Surface protection: Hot-dip galvanised
- Corrosiveness class: C4
- Number of holes/slots, leg 1: 1
- Number of holes/slots, leg 2: 1
- Hole diameter: 11 mm
- Reinforcement: None
- Length slotted hole: 35 mm
- REACH Date: 2024-10-10
- GWP-tot (A1-A3): 0,4185 kgCO2e/ST
- Product series: Wibe
- Material quality: Other
- REACH Information obligation: No
- Model: Other
- Tray mounting: Screwable
