Cable ladder type KHZP, Acid-resistant AISI316L, L= 6 meter - CABLE LADDER KHZP-200 6M SS AISI316L
Wibe

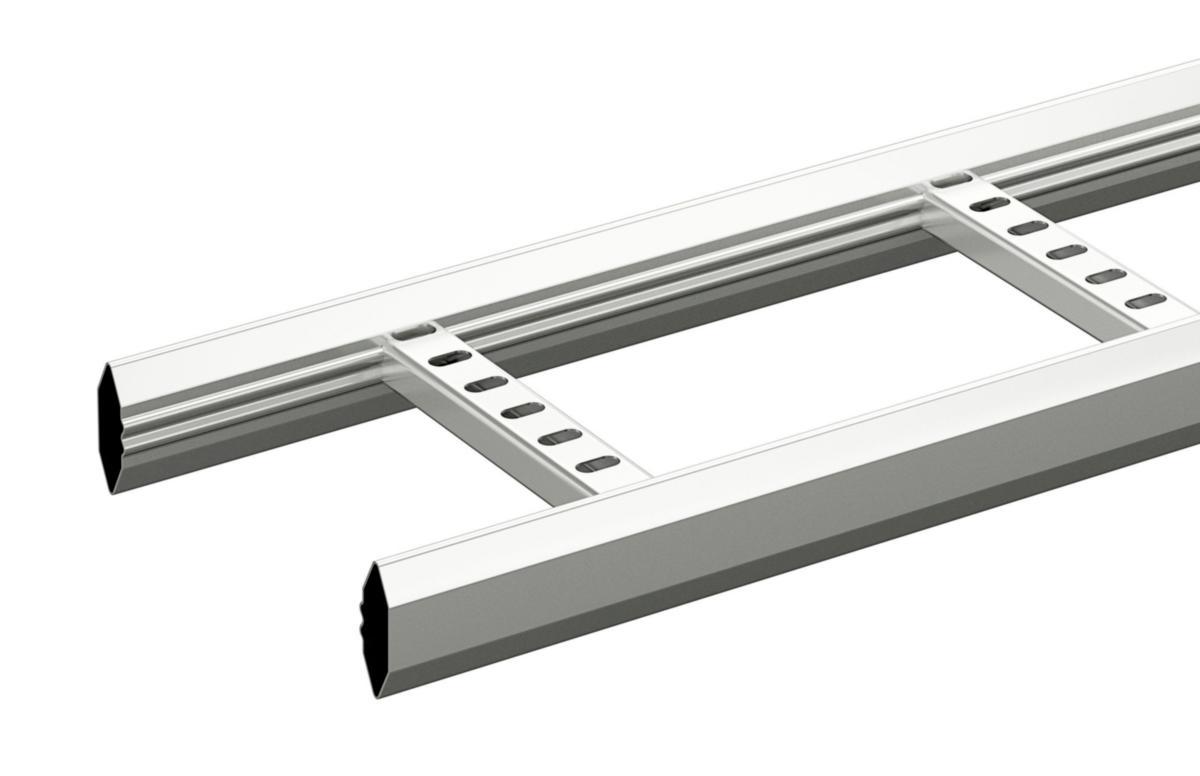

Cable ladder type KHZP, Acid-resistant AISI316L, L= 6 meter

CABLE LADDER KHZP-200 6M SS AISI316L
Article number:
1120245
Suppl. article no:
727383
‌
‌
‌
‌
‌
 to see price and stock
Environmental product declarationByggvarubedomning: Accepteras
Cable ladder is intended for very aggressive environments indoors and outdoors as well as for installing in environments with special hygiene requirements. With hexagonal closed side profile and perforated flat rungs. The cable ladders must not be used for walking or climbing on.
  • Article number:
    1120245
  • Suppl. article no:
    727383
  • Ean no:
    7321677273836
  • Material class
    QC2600
Technical data
  • Packagin Size: 1 ST/30 ST
  • Type: KHZP 200 SF
  • Width: 200 mm
  • Length: 6000 mm
  • Height: 55 mm
  • Material: Stainless steel
  • Material quality: Stainless steel 316 (1.4401)
  • Surface protection: Other
  • Usable cross section: 19320000 mm²
  • Type of rung: Perforated profile
  • Type of side joist: Tube shape (closed)
  • Suitable for circuit integrity: No
  • Fixation rung: Welded
  • Wide span model: No
  • Corrosion class according to EN ISO 9223: C5M
  • Rung centre spacing: 250 mm
  • Side perforation: No
  • Weight: 2.7 kg/m
  • Product series: Wibe
  • Stainless steel, pickled: Yes
  • REACH Date: 2021-03-08
  • REACH Information obligation: No
