AhlsellProductsElectricInstallation equipment 11-1811aCable trays and Fitting railsCable traysCable ladder
Wibe

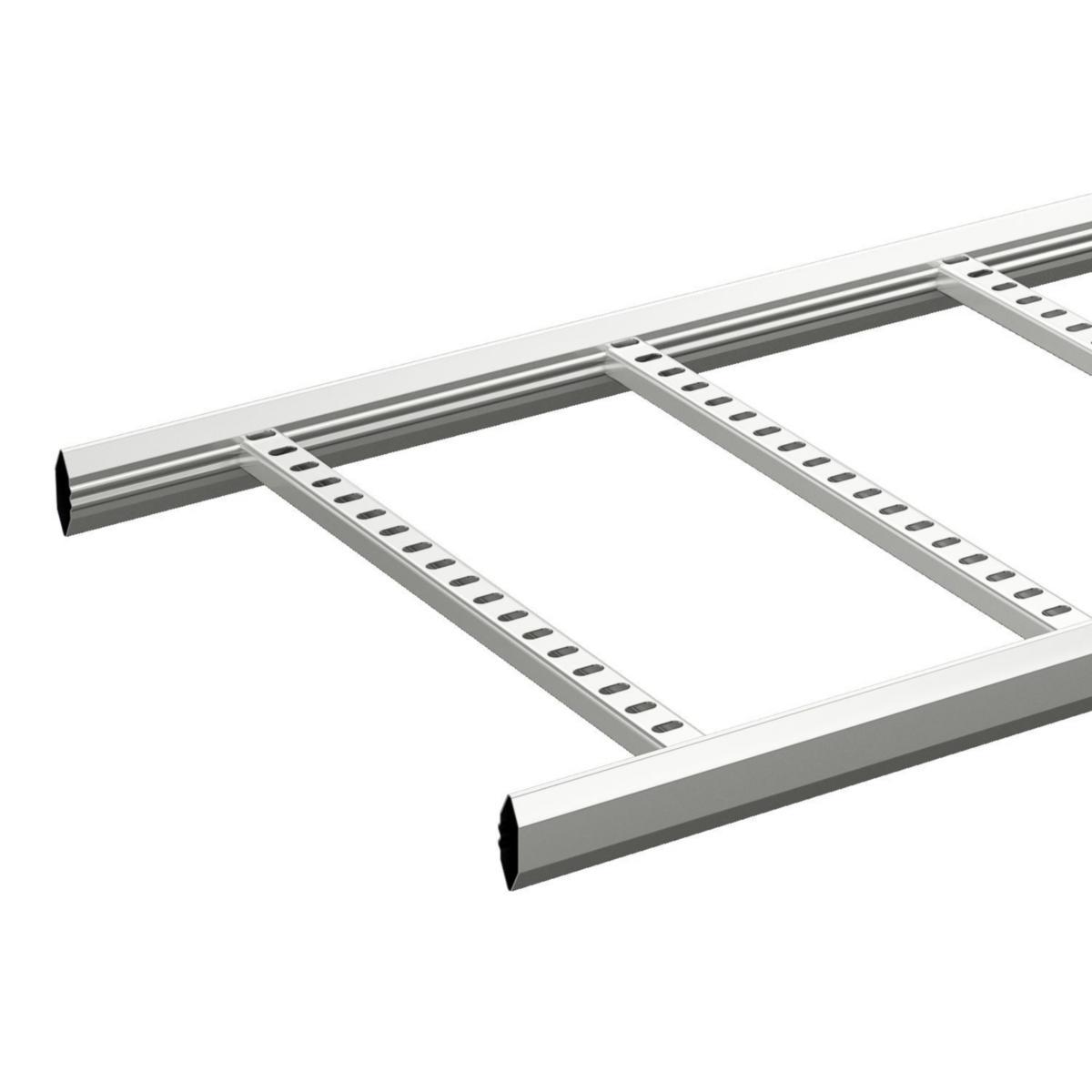

Cable ladder type KHZP Hot-dipped galvanised FZV, L=6 meter
CABLE LADDER KHZP-500 6M HDG 718566
Article number: Suppl. article no:
1120232
718566
to see price and stock
Hot-dip galvanised cable ladder with closed, hexagonal side profiles and flat, perforated rungs.
The ladders are intended for installations in environments where high requirements are set for strength and torsional rigidity.
The ladders are intended for installations in environments where high requirements are set for strength and torsional rigidity.
- Article number: 1120232
- Suppl. article no: 718566
- Ean no: 7321677185665
- Material class QC2600
- This is an alternative to item 1120276
Technical data
- Packagin Size: 1 ST/15 ST
- Corrosiveness class: C4
- Width: 500 mm
- Length: 6000 mm
- Surface protection: Hot-dip galvanised
- Material: Steel
- Material quality: Other
- Height: 55 mm
- Stainless steel, pickled: No
- Type of side joist: Tube shape (closed)
- Type of rung: Perforated profile
- Side perforation: No
- Fixation rung: Welded
- Rung centre spacing: 250 mm
- Suitable for circuit integrity: No
- Product series: Wibe
- Weight: 3.4 kg/m
- Usable cross section: 55320000 mm²
- REACH Date: 2021-03-08
- GWP-tot (A1-A3): 56,916 kgCO2e/ST
- REACH Information obligation: No
- Wide span model: No
