Wibe
Cable ladder type KHZP Hot-dipped galvanised FZV, L=6 meter
LADDER KHZP-150 6M HDG
Article number: Suppl. article no:
1120220
718562
to see price and stock

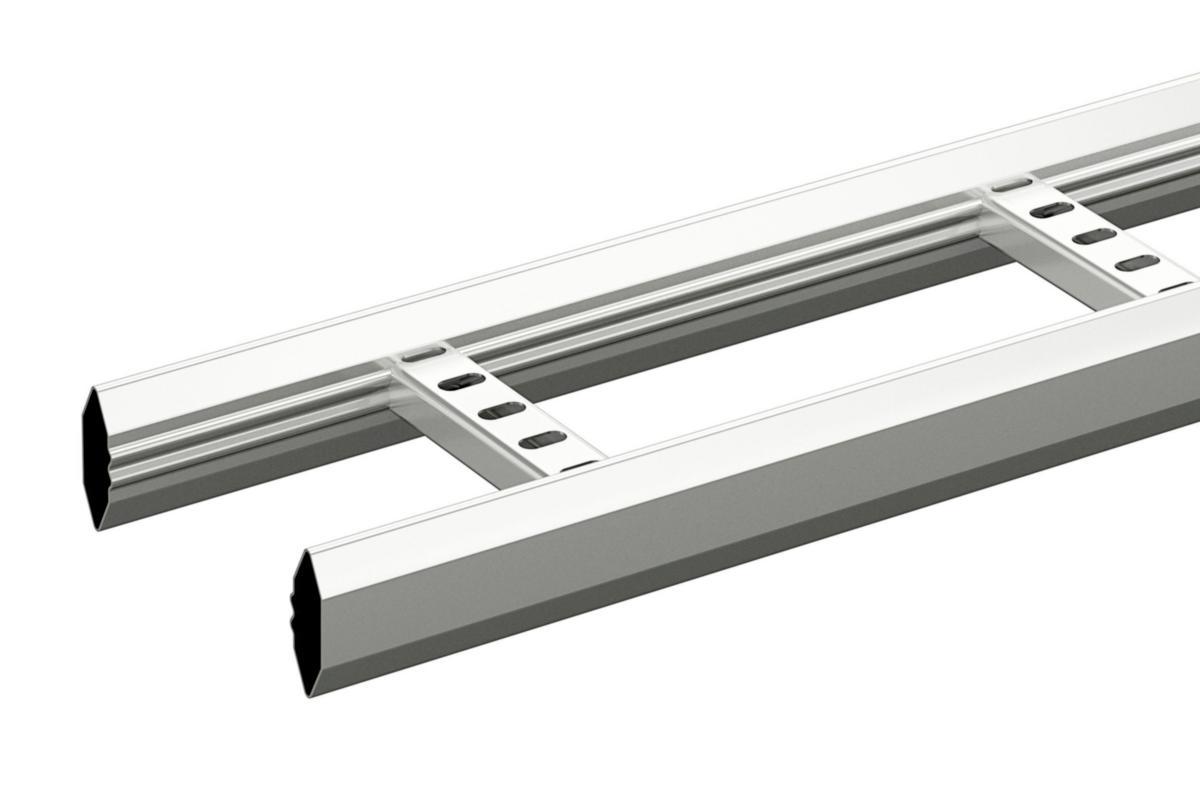

Hot-dip galvanised cable ladder with closed, hexagonal side profiles and flat, perforated rungs.
The ladders are intended for installations in environments where high requirements are set for strength and torsional rigidity.
The ladders are intended for installations in environments where high requirements are set for strength and torsional rigidity.
- Article number: 1120220
- Suppl. article no: 718562
- Ean no: 7321677185627
- Material class QC2600
- This is an alternative to item 1120260
Technical data
- Packagin Size: 1 ST/30 ST
- Type: KHZP 150
- Width: 150 mm
- Material: Steel
- Material quality: Other
- Surface protection: Hot-dip galvanised
- Corrosion class according to EN ISO 9223: C4
- Product series: Wibe
- Height: 55 mm
- Usable cross section: 13320000 mm²
- Weight: 2.7 kg/m
- Fixation rung: Welded
- Type of rung: Perforated profile
- Wide span model: No
- Length: 6000 mm
- Rung centre spacing: 250 mm
- Stainless steel, pickled: No
- Type of side joist: Tube shape (closed)
- Side perforation: No
- Suitable for circuit integrity: No
- REACH Date: 2021-03-08
- GWP-tot (A1-A3): 45,0862 kgCO2e/ST
- REACH Information obligation: No
