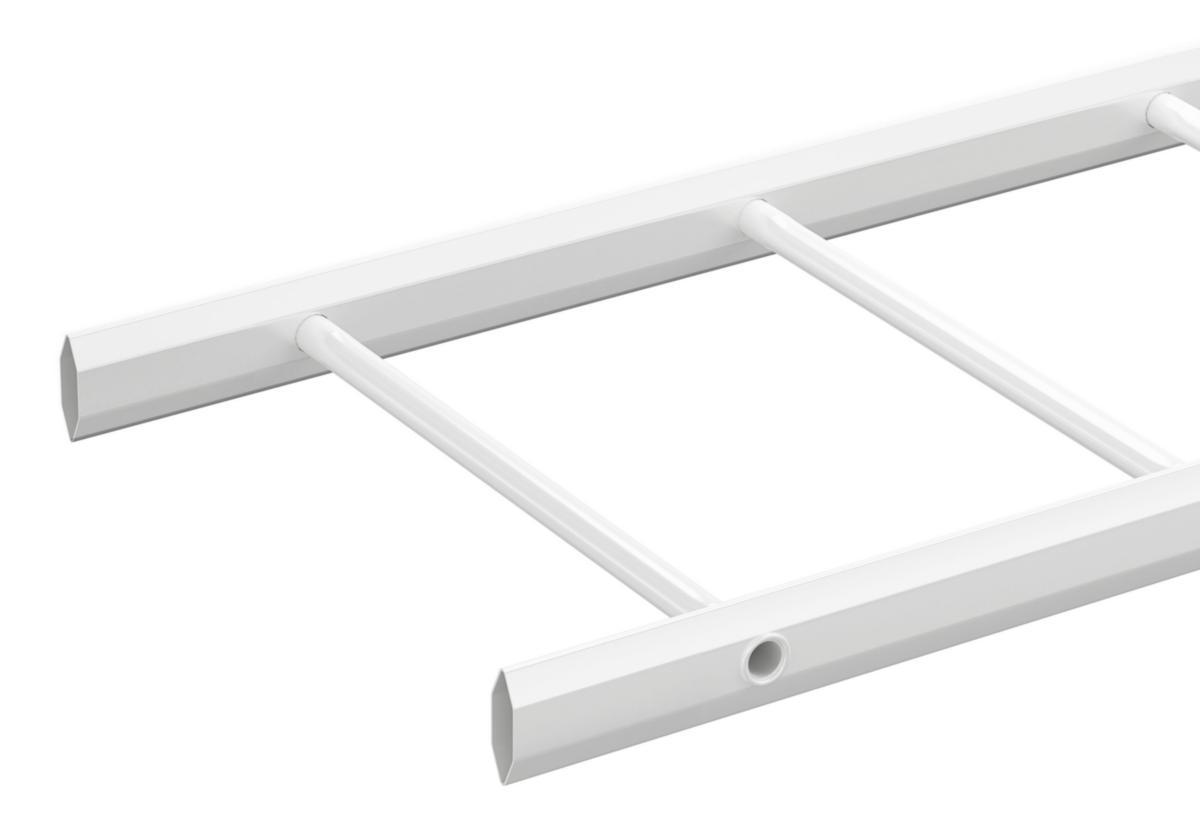

Cable ladder type KHZ, Zinkpox White, L=6 meter
LADDER KHZ-400 6M WHITE
Article number: Suppl. article no:
1120130
714062
to see price and stock
Hot-dip galvanised white painted cable ladder with closed hexagonal side profiles and oval-pressed rungs.
The ladders are intended for installations in industrial environments where high requirements are set for strength and torsional rigidity.
The ladders are intended for installations in industrial environments where high requirements are set for strength and torsional rigidity.
- Article number: 1120130
- Suppl. article no: 714062
- Ean no: 7321677140626
- Material class QC2600
Technical data
- Packagin Size: 1 ST/12 ST
- Type: KHZ 400 white
- Corrosiveness class: C5-I
- Width: 400 mm
- Length: 6000 mm
- Surface protection: Hot-dip galvanised and coated
- Material: Steel
- Material quality: Other
- Height: 55 mm
- Colour: White
- RAL-number: 9010
- Type of side joist: Tube shape (closed)
- Type of rung: Tube shape (closed)
- Side perforation: No
- Fixation rung: Fully revited
- Rung centre spacing: 250 mm
- Suitable for circuit integrity: No
- Product series: Wibe
- Weight: 3.2 kg/m
- Usable cross section: 11514000 mm²
- REACH Date: 2021-03-08
- REACH Information obligation: No
- Wide span model: No
