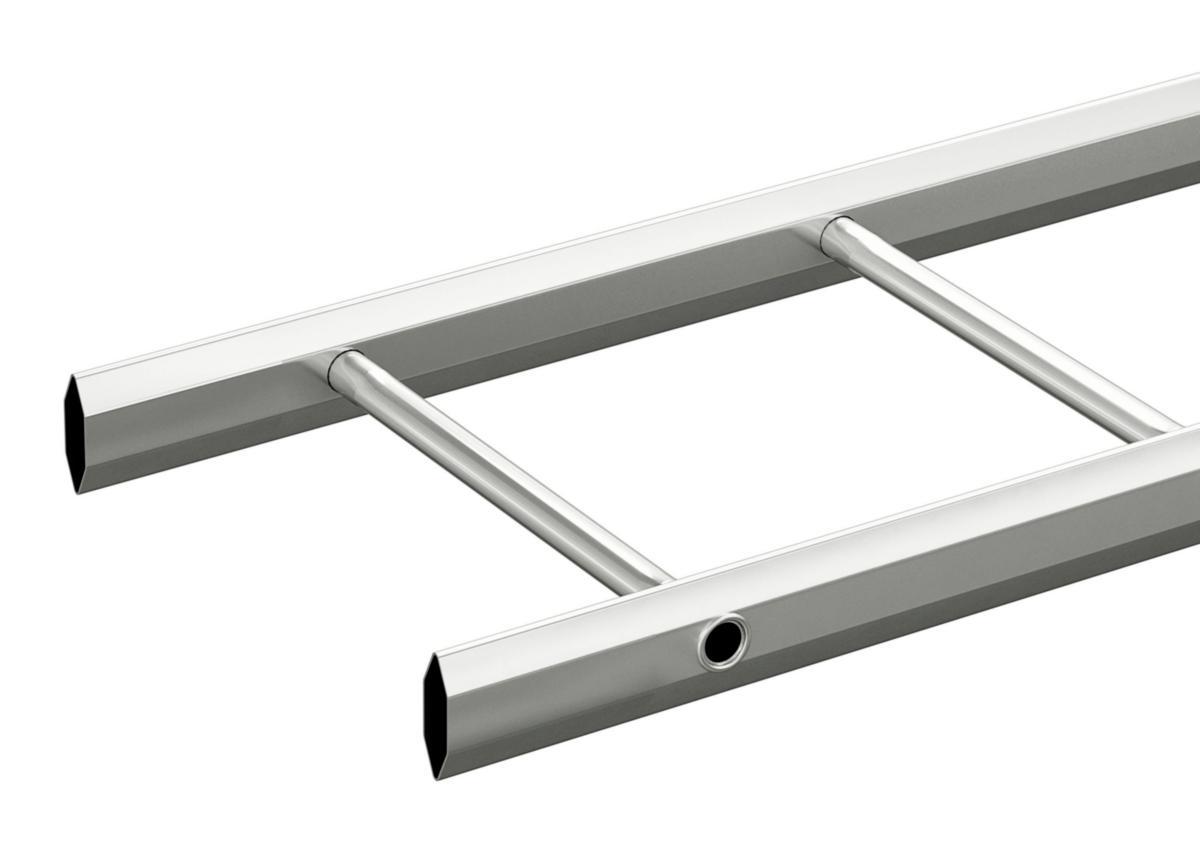

Cable ladder type KHZ, Hot-dipped galvanised FZV, L=6 meter
LADDER KHZ-300 6M HDG
Article number: Suppl. article no:
1120126
768004
to see price and stock
Hot-dip galvanised cable ladder with hexagonal side profiles and oval- pressed rungs. The ladders are intended for installations in environments where high requirements are set for strength and torsional rigidity. Can not be used to step or climb upon. Application areas are: Chemical heavy industry, coastal areas, swimming pools, shipyards, etc.
- Article number: 1120126
- Suppl. article no: 768004
- Ean no: 7321677680047
- Material class QC2601
Technical data
- Packagin Size: 1 ST/30 ST
- Type: KHZ 300
- Corrosiveness class: C4
- Width: 300 mm
- Length: 6000 mm
- Surface protection: Hot-dip galvanised
- Material: Steel
- Material quality: Other
- Height: 55 mm
- Type of side joist: Tube shape (closed)
- Type of rung: Tube shape (closed)
- Side perforation: Yes
- Fixation rung: Fully revited
- Rung centre spacing: 250 mm
- Suitable for circuit integrity: No
- Product series: Wibe
- Weight: 3 kg/m
- Usable cross section: 29754000 mm²
- REACH Date: 2021-03-08
- GWP-tot (A1-A3): 50,22 kgCO2e/ST
- REACH Information obligation: No
- Wide span model: No
