Wibe

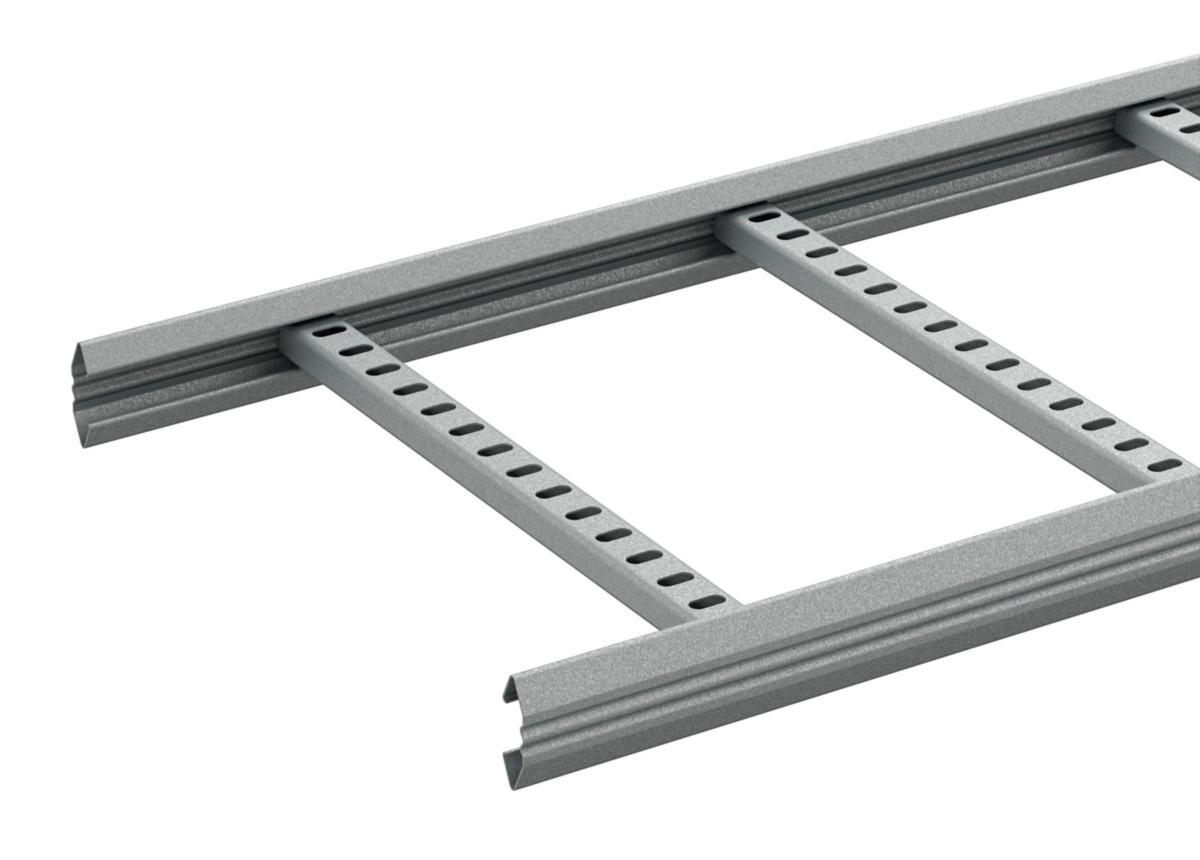

Cable ladder type KHZSP Sendzimir galvanised FZS, L = 4 meter
LADDER KHZSP-400 4M PREG
Article number: Suppl. article no:
1120029
718574
to see price and stock
Sendzimir galvanised cable ladder with closed, hexagonal side profiles and flat, perforated rungs. The ladders are intended for indoor installations in dry environments. Can not be used to step or climb upon.
Used for mounting at e.g. hospitals, public buildings, schools, warehouses, small industries, department stores, offices. Wherever there are dry environments.
Used for mounting at e.g. hospitals, public buildings, schools, warehouses, small industries, department stores, offices. Wherever there are dry environments.
- Article number: 1120029
- Suppl. article no: 718574
- Ean no: 7321677185740
- Material class QC2621
Technical data
- Packagin Size: 1 ST/30 ST
- Type: KHZSP 400
- Corrosiveness class: C2
- Width: 400 mm
- Length: 4000 mm
- Surface protection: Continuously galvanised
- Material: Steel
- Material quality: Other
- Height: 55 mm
- Stainless steel, pickled: No
- Type of side joist: Profile (open)
- Type of rung: Perforated profile
- Side perforation: No
- Fixation rung: Welded
- Rung centre spacing: 250 mm
- Suitable for circuit integrity: No
- Product series: Wibe
- Weight: 2.37 kg/m
- Usable cross section: 43680000 mm²
- REACH Date: 2021-03-08
- GWP-tot (A1-A3): 24,2536 kgCO2e/ST
- REACH Information obligation: No
- Wide span model: No
